VIAIR 450C Compressor 45040
VIAIR Corp
- KTP #:
- H18406
- MPN:
- 45040
- KTP #:
- ${ currentVariant?.sku }
- Part Number:
- ${ currentVariant?.mpn }
- Cross Reference Number:
- ${ currentVariant?.crossReferenceNumber }
Price: $185.00
Sale price: ${currentVariant?.salePriceAsCurrency}
List price: ${currentVariant?.priceAsCurrency}
Price: ${currentVariant?.priceAsCurrency}
- Ships via UPS In stock items ship within 48 hours
- Ships via UPS In stock items ship within 48 hours
${notification.message}
- Ships via UPS In stock items ship within 48 hours
${notification.message}
The 450C is a continuous duty cycle air compressor, meaning it can run continuously for 1-hour before needing rest. Features include a standard 1/4” NPT stainless steel braided leader hose with inline check valve and insulated wiring for simple installation.

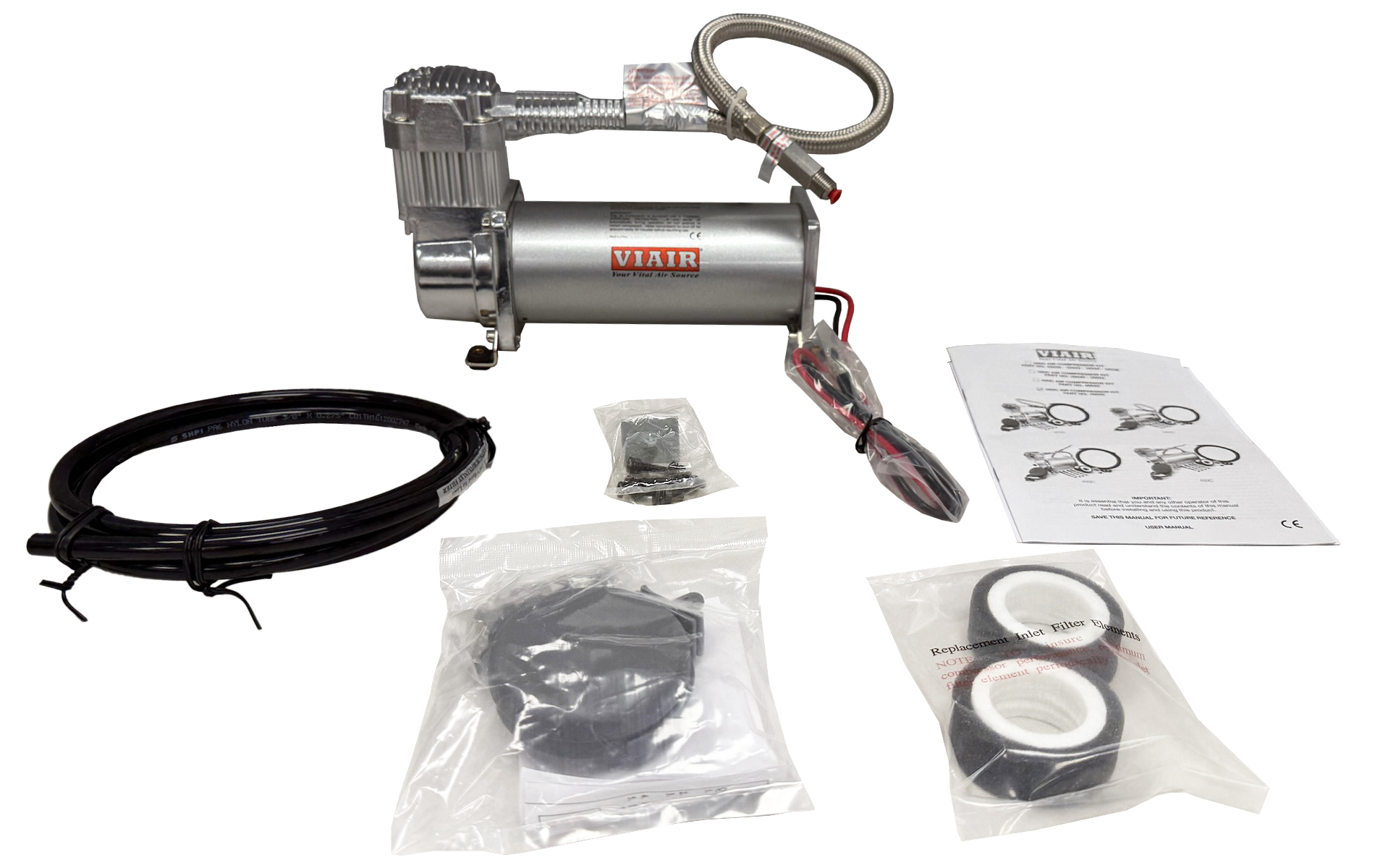

- Thermal Overload Protector
- Check Valve
- Vibration Isolators
- Mounting Hardware
- Stainless Steel Braided Leader Hose
- Air Line for Remote Mount Air Filter
- Remote Mount Air Filter Assembly
- (2) Replacement Air Filter Elements
- Installation Instructions

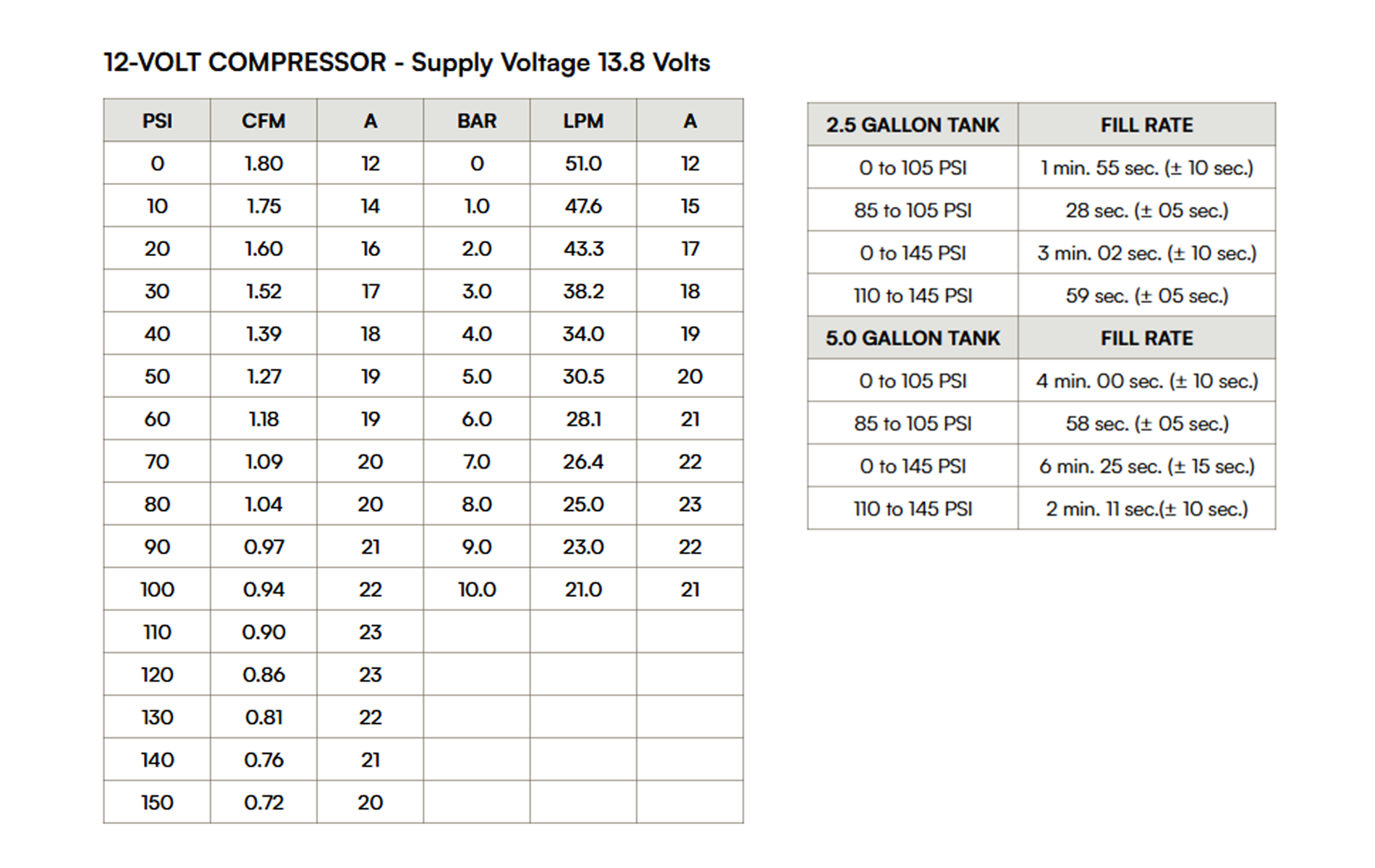

CFM | 1.80 @ 0 PSI |
Voltage | 12-Volt & 24-Volt |
Motor | Permanent Magnetic Motor |
Duty Cycle | 100% @ 100 PSI |
Max. Working Pressure | 150 PSI |
Max. Air Tank Size | 5.0 Gallon |
Max. 12V Amp Draw | 23-Amps |
Ingress Protection Rating | IP67 |
Max Ambient Temp | +158°F |
Min Ambient Temp | -40°F |

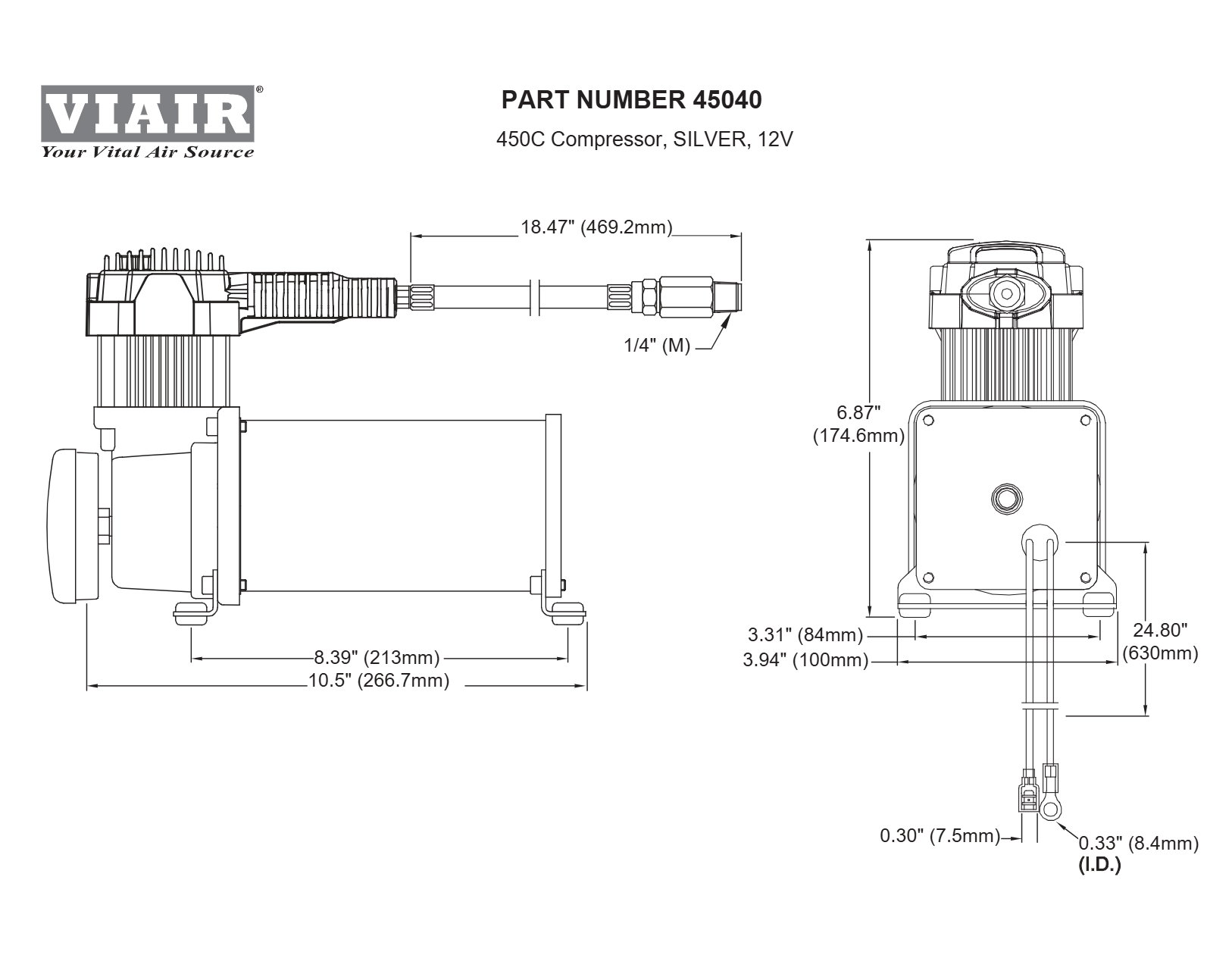

Dimensions | 10.6″L x 4″W x 6.87″H |
Net Weight | 10.80 lbs. |
Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs. |
- User Manual - Compressor 45040 Download (Pdf, 1.188 MB)
- PRS - Compressor 45040 Download (Pdf, 1.134 MB)
- Wiring Option A - Compressor 45040 Download (Pdf, 22.547 KB)
- Wiring Option B - Compressor 45040 Download (Pdf, 169.974 KB)
- Wiring Option C - Compressor 45040 Download (Pdf, 167.714 KB)
