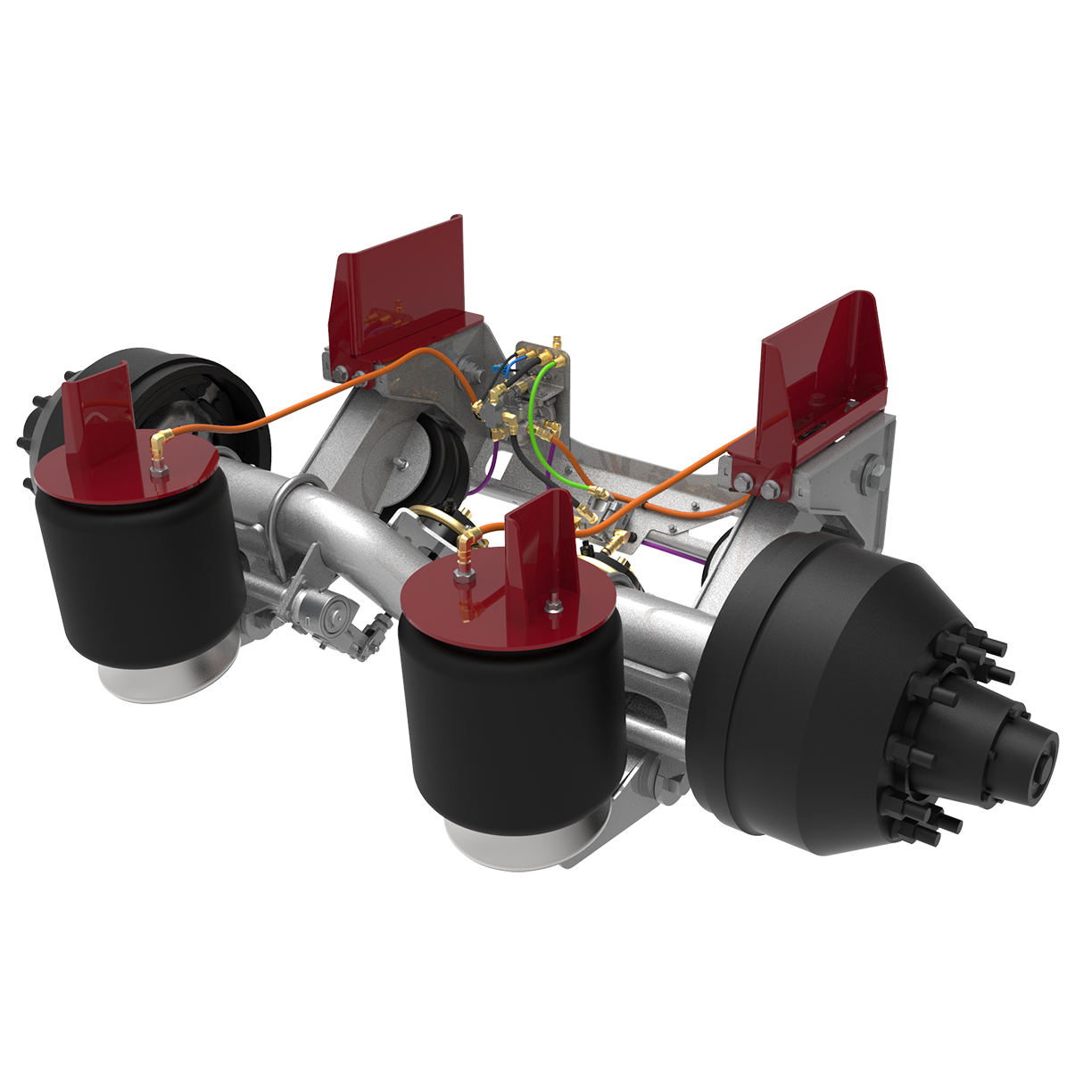

  • Non-steer Lift Axle with a 20,000 lb. capacity
Image ${currentSlide} of ${totalSlides}
  • 20K Non-Steer 9" Drop Center Lift Axle - Standard Stud Length with Truck Mount for 7" to 9.5" Ride Height
  • Non-steer Lift Axle with a 20,000 lb. capacity
Image ${currentSlide} of ${totalSlides}
  • 20K Non-Steer 9" Drop Center Lift Axle - Standard Stud Length with Truck Mount for 7" to 9.5" Ride Height
  • Non-steer Lift Axle with a 20,000 lb. capacity
Image ${currentSlide} of ${totalSlides}
  • 20K Non-Steer 9" Drop Center Lift Axle - Standard Stud Length with Truck Mount for 7" to 9.5" Ride Height
  • Non-steer Lift Axle with a 20,000 lb. capacity
Image ${currentSlide} of ${totalSlides}
  • 20K Non-Steer 9" Drop Center Lift Axle - Standard Stud Length with Truck Mount for 7" to 9.5" Ride Height
  • Non-steer Lift Axle with a 20,000 lb. capacity
Image ${currentSlide} of ${totalSlides}
  • 20K Non-Steer 9" Drop Center Lift Axle - Long Stud Length with Truck Mount for 7" to 9" Ride Height
  • Non-steer Lift Axle with a 20,000 lb. capacity
Image ${currentSlide} of ${totalSlides}
  • 20K Non-Steer 9" Drop Center Lift Axle - Long Stud Length with Truck Mount for 7" to 9" Ride Height
  • Non-steer Lift Axle with a 20,000 lb. capacity
Image ${currentSlide} of ${totalSlides}
  • 20K Non-Steer 9" Drop Center Lift Axle - Long Stud Length with Truck Mount for 7" to 9" Ride Height
  • Non-steer Lift Axle with a 20,000 lb. capacity
Image ${currentSlide} of ${totalSlides}

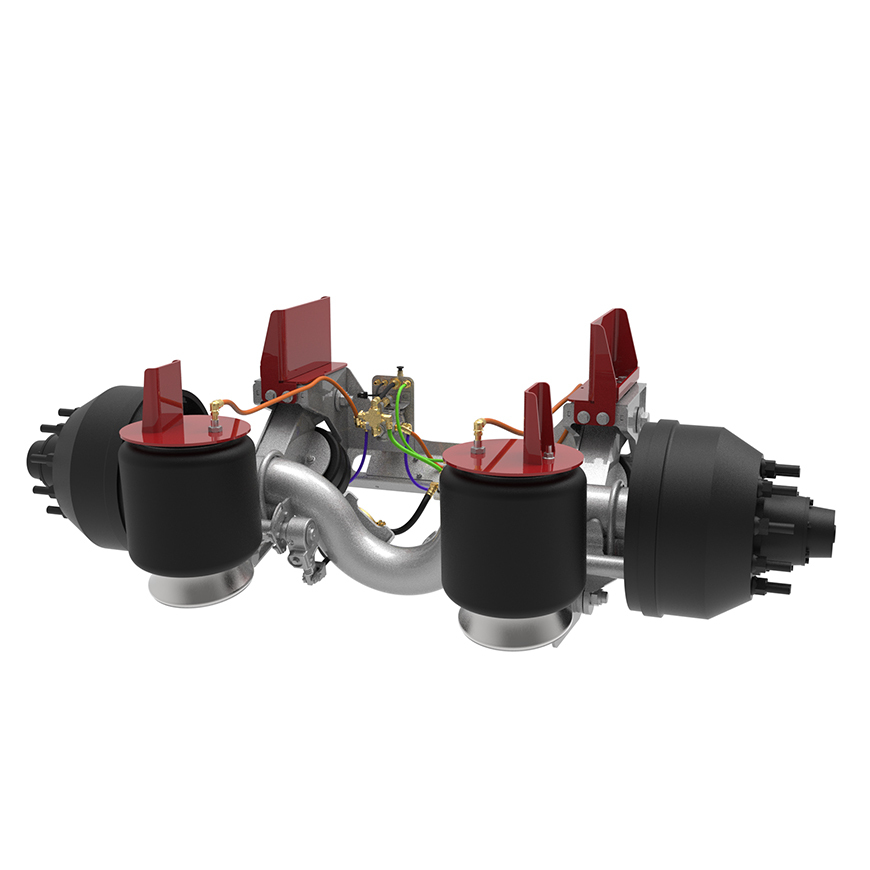

  • 20K Non-Steer 9" Drop Center Lift Axle - Long Stud Length with Truck Mount for 7" to 9" Ride Height
  • Non-steer Lift Axle with a 20,000 lb. capacity
Image ${currentSlide} of ${totalSlides}
  • 20K Non-Steer 9" Drop Center Lift Axle - Standard Stud Length with Truck Mount for 9" to 11.5" Ride Height
  • Non-steer Lift Axle with a 20,000 lb. capacity
Image ${currentSlide} of ${totalSlides}
  • 20K Non-Steer 9" Drop Center Lift Axle - Standard Stud Length with Truck Mount for 9" to 11.5" Ride Height
  • Non-steer Lift Axle with a 20,000 lb. capacity
Image ${currentSlide} of ${totalSlides}
  • 20K Non-Steer 9" Drop Center Lift Axle - Standard Stud Length with Truck Mount for 9" to 11.5" Ride Height
  • Non-steer Lift Axle with a 20,000 lb. capacity
Image ${currentSlide} of ${totalSlides}

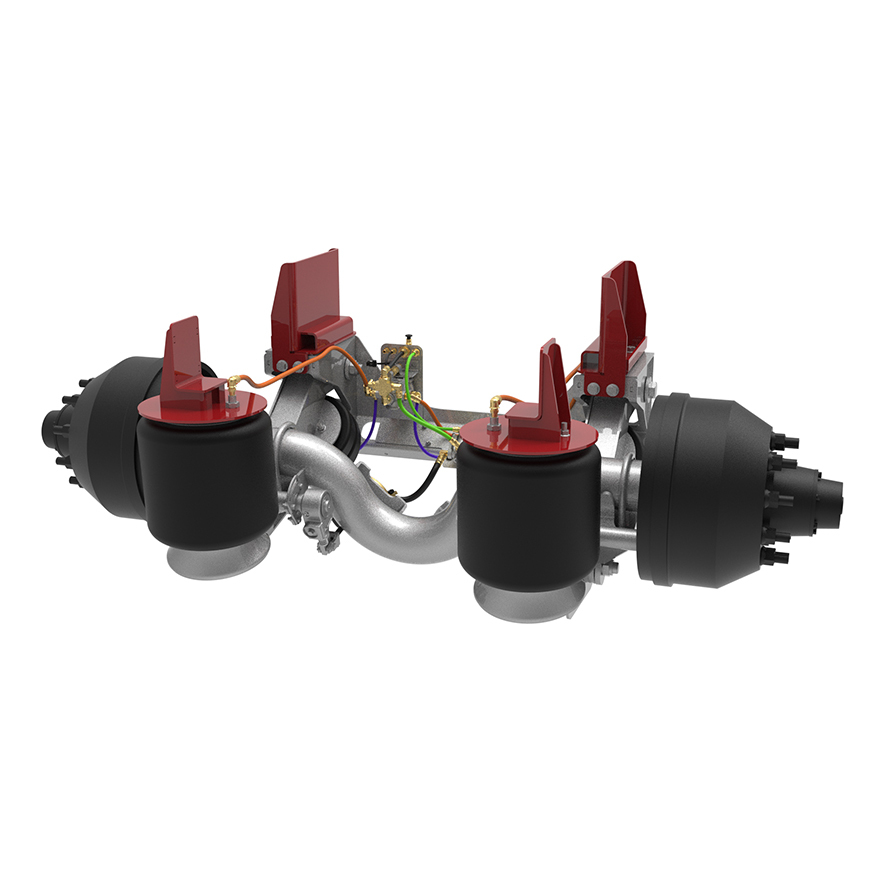

  • 20K Non-Steer 9" Drop Center Lift Axle - Standard Stud Length with Truck Mount for 9" to 11.5" Ride Height
  • Non-steer Lift Axle with a 20,000 lb. capacity
Image ${currentSlide} of ${totalSlides}
  • 20K Non-Steer 9" Drop Center Lift Axle - Long Stud Length with Truck Mount for 9" to 11.5" Ride Height
  • Non-steer Lift Axle with a 20,000 lb. capacity
Image ${currentSlide} of ${totalSlides}
  • 20K Non-Steer 9" Drop Center Lift Axle - Long Stud Length with Truck Mount for 9" to 11.5" Ride Height
  • Non-steer Lift Axle with a 20,000 lb. capacity
Image ${currentSlide} of ${totalSlides}
  • 20K Non-Steer 9" Drop Center Lift Axle - Long Stud Length with Truck Mount for 9" to 11.5" Ride Height
  • Non-steer Lift Axle with a 20,000 lb. capacity
Image ${currentSlide} of ${totalSlides}

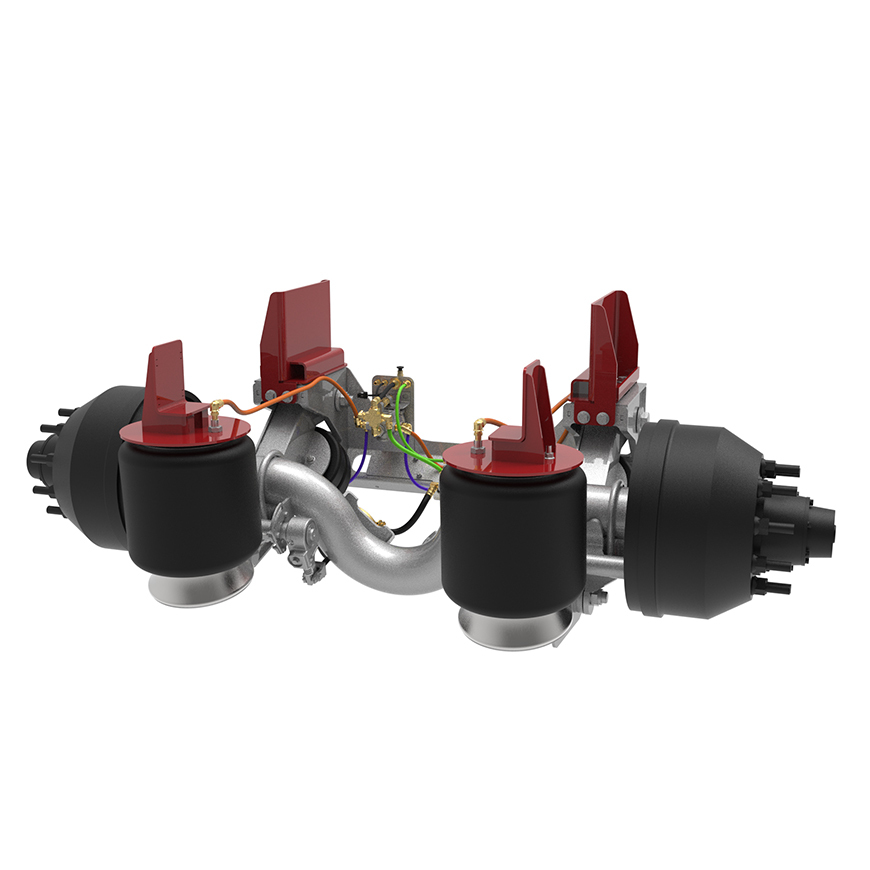

  • 20K Non-Steer 9" Drop Center Lift Axle - Long Stud Length with Truck Mount for 9" to 11.5" Ride Height
  • Non-steer Lift Axle with a 20,000 lb. capacity
Image ${currentSlide} of ${totalSlides}
  • 20K Non-Steer 9" Drop Center Lift Axle - Standard Stud Length with Truck Mount for 11" to 13.5" Ride Height
  • Non-steer Lift Axle with a 20,000 lb. capacity
Image ${currentSlide} of ${totalSlides}
  • 20K Non-Steer 9" Drop Center Lift Axle - Standard Stud Length with Truck Mount for 11" to 13.5" Ride Height
  • Non-steer Lift Axle with a 20,000 lb. capacity
Image ${currentSlide} of ${totalSlides}
  • 20K Non-Steer 9" Drop Center Lift Axle - Standard Stud Length with Truck Mount for 11" to 13.5" Ride Height
  • Non-steer Lift Axle with a 20,000 lb. capacity
Image ${currentSlide} of ${totalSlides}
  • 20K Non-Steer 9" Drop Center Lift Axle - Standard Stud Length with Truck Mount for 11" to 13.5" Ride Height
  • Non-steer Lift Axle with a 20,000 lb. capacity
Image ${currentSlide} of ${totalSlides}
  • 20K Non-Steer 9" Drop Center Lift Axle - Long Stud Length with Truck Mount for 11" to 13.5" Ride Height
  • Non-steer Lift Axle with a 20,000 lb. capacity
Image ${currentSlide} of ${totalSlides}
  • 20K Non-Steer 9" Drop Center Lift Axle - Long Stud Length with Truck Mount for 11" to 13.5" Ride Height
  • Non-steer Lift Axle with a 20,000 lb. capacity
Image ${currentSlide} of ${totalSlides}
  • 20K Non-Steer 9" Drop Center Lift Axle - Long Stud Length with Truck Mount for 11" to 13.5" Ride Height
  • Non-steer Lift Axle with a 20,000 lb. capacity
Image ${currentSlide} of ${totalSlides}

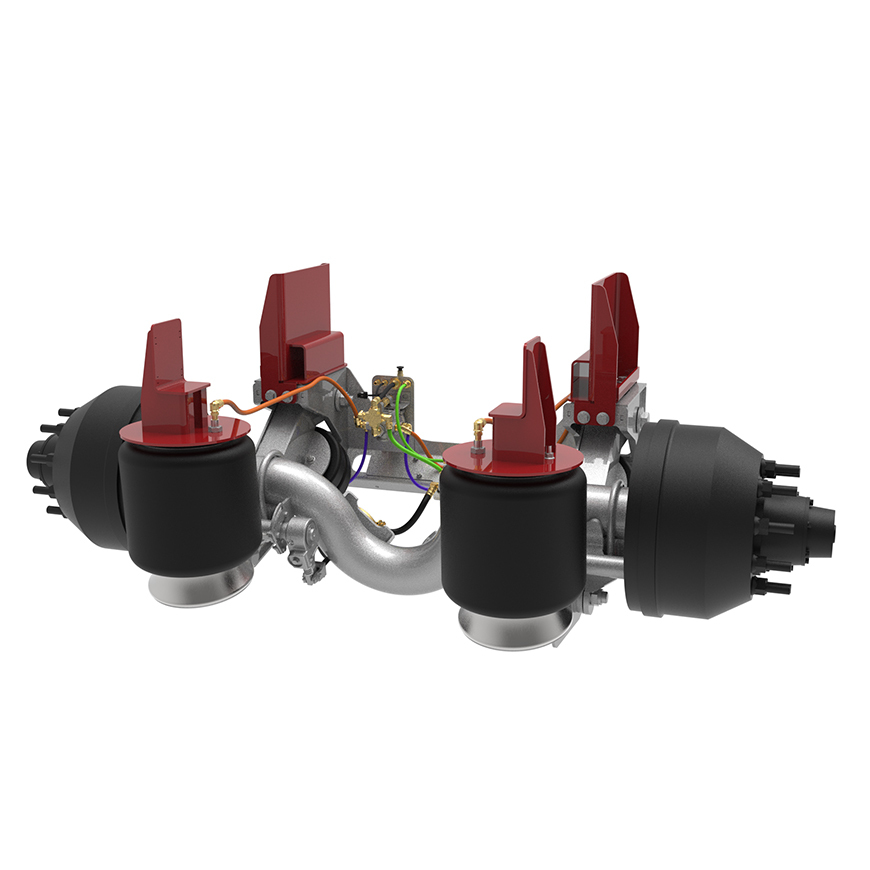

  • 20K Non-Steer 9" Drop Center Lift Axle - Long Stud Length with Truck Mount for 11" to 13.5" Ride Height
  • Non-steer Lift Axle with a 20,000 lb. capacity
Image ${currentSlide} of ${totalSlides}

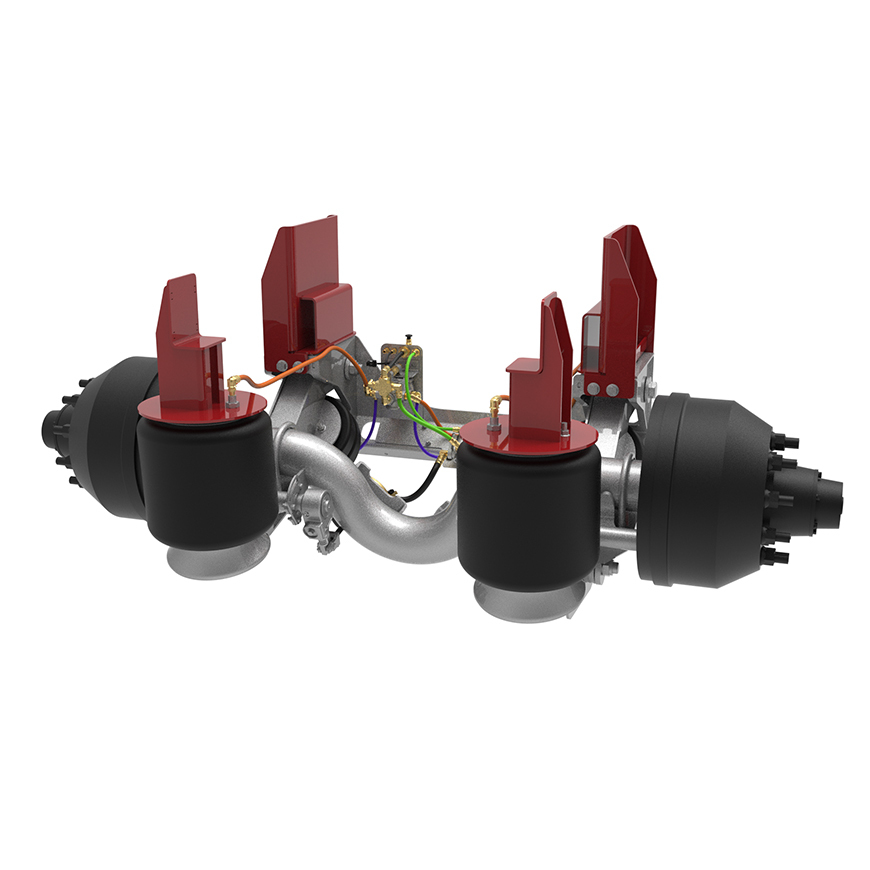

  • 20K Non-Steer 9" Drop Center Lift Axle - Standard Stud Length with Truck Mount for 13" to 15.5" Ride Height
  • Non-steer Lift Axle with a 20,000 lb. capacity
Image ${currentSlide} of ${totalSlides}
  • 20K Non-Steer 9" Drop Center Lift Axle - Standard Stud Length with Truck Mount for 13" to 15.5" Ride Height
  • Non-steer Lift Axle with a 20,000 lb. capacity
Image ${currentSlide} of ${totalSlides}
  • 20K Non-Steer 9" Drop Center Lift Axle - Standard Stud Length with Truck Mount for 13" to 15.5" Ride Height
  • Non-steer Lift Axle with a 20,000 lb. capacity
Image ${currentSlide} of ${totalSlides}
  • 20K Non-Steer 9" Drop Center Lift Axle - Standard Stud Length with Truck Mount for 13" to 15.5" Ride Height
  • Non-steer Lift Axle with a 20,000 lb. capacity
Image ${currentSlide} of ${totalSlides}
  • 20K Non-Steer 9" Drop Center Lift Axle - Long Stud Length with Truck Mount for 13" to 15.5" Ride Height
  • Non-steer Lift Axle with a 20,000 lb. capacity
Image ${currentSlide} of ${totalSlides}
  • 20K Non-Steer 9" Drop Center Lift Axle - Long Stud Length with Truck Mount for 13" to 15.5" Ride Height
  • Non-steer Lift Axle with a 20,000 lb. capacity
Image ${currentSlide} of ${totalSlides}
  • 20K Non-Steer 9" Drop Center Lift Axle - Long Stud Length with Truck Mount for 13" to 15.5" Ride Height
  • Non-steer Lift Axle with a 20,000 lb. capacity
Image ${currentSlide} of ${totalSlides}

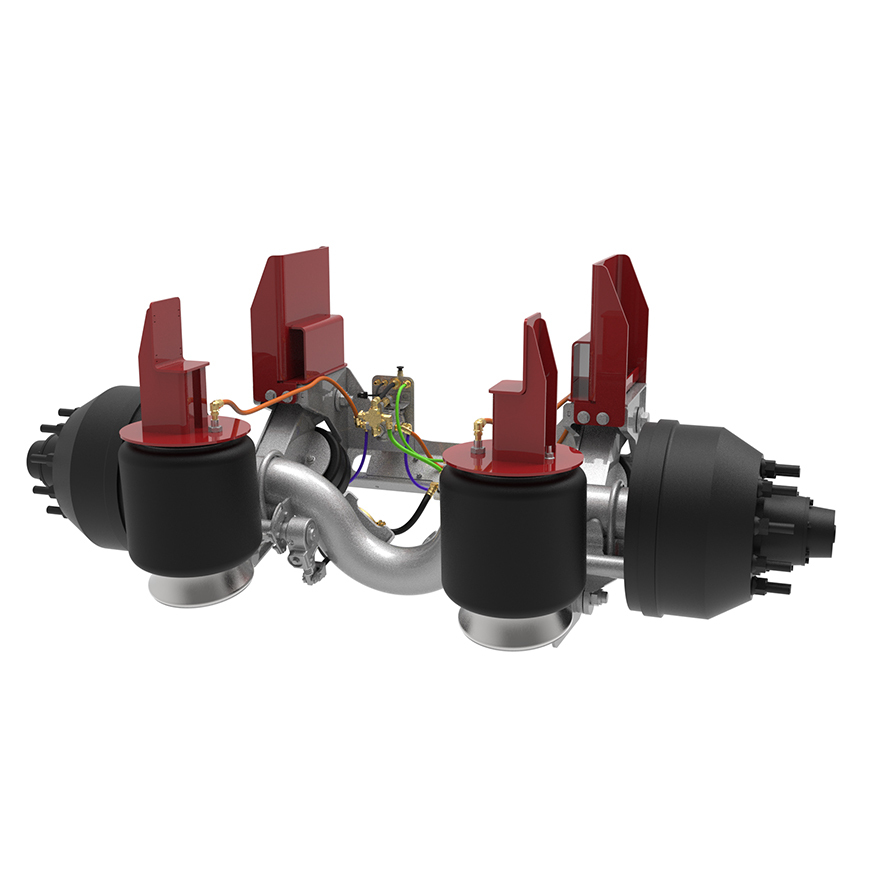

  • 20K Non-Steer 9" Drop Center Lift Axle - Long Stud Length with Truck Mount for 13" to 15.5" Ride Height
  • Non-steer Lift Axle with a 20,000 lb. capacity
Image ${currentSlide} of ${totalSlides}

Link 20K Non-Steer Lift Axle - 9 in Drop Center / Standard Stud Length / 7 - 9.5 Inch Ride Height / Non Sealed Box - Control Module ${currentTitle}

Link Mfg

KTP #:
8A000910-460-13501023
KTP #:
${ currentVariant?.sku }
Part Number:
${ currentVariant?.mpn }
Cross Reference Number:
${ currentVariant?.crossReferenceNumber }

Price: $6,999.00

Sale price: ${currentVariant?.salePriceAsCurrency}

List price: ${currentVariant?.priceAsCurrency}

Price: ${currentVariant?.priceAsCurrency}

  • Free shipping Please allow 4-7 days for delivery

${notification.message}

Wheel Ends Standard Stud Length for Single or Dual Steel Wheels, Long Stud for Dual Aluminum Wheels

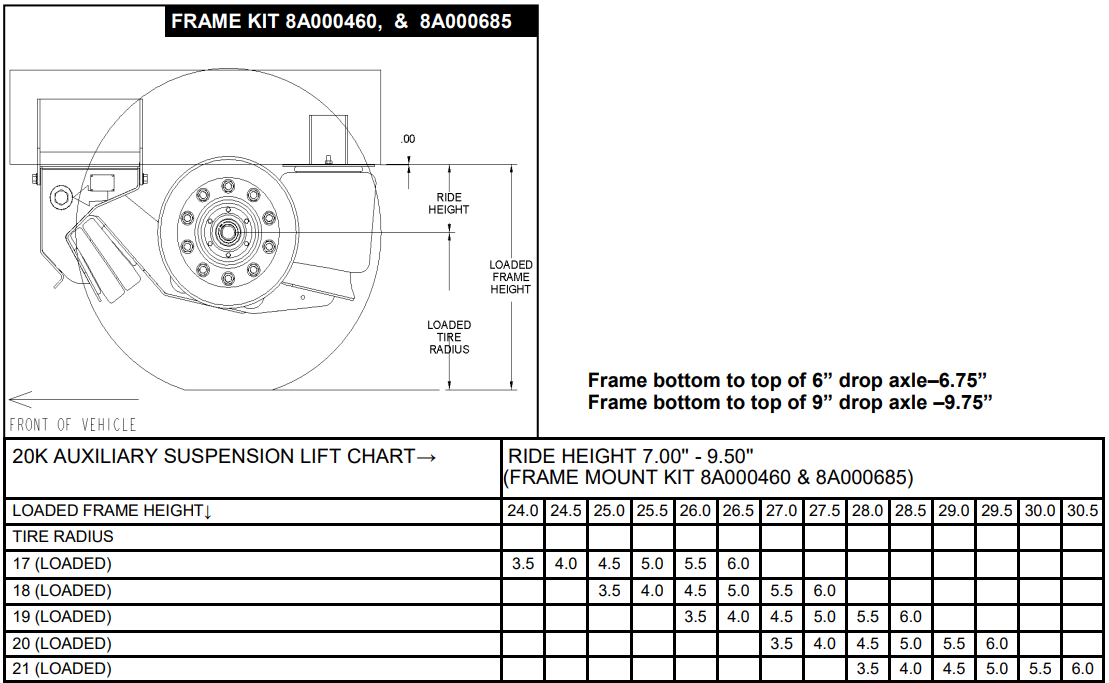

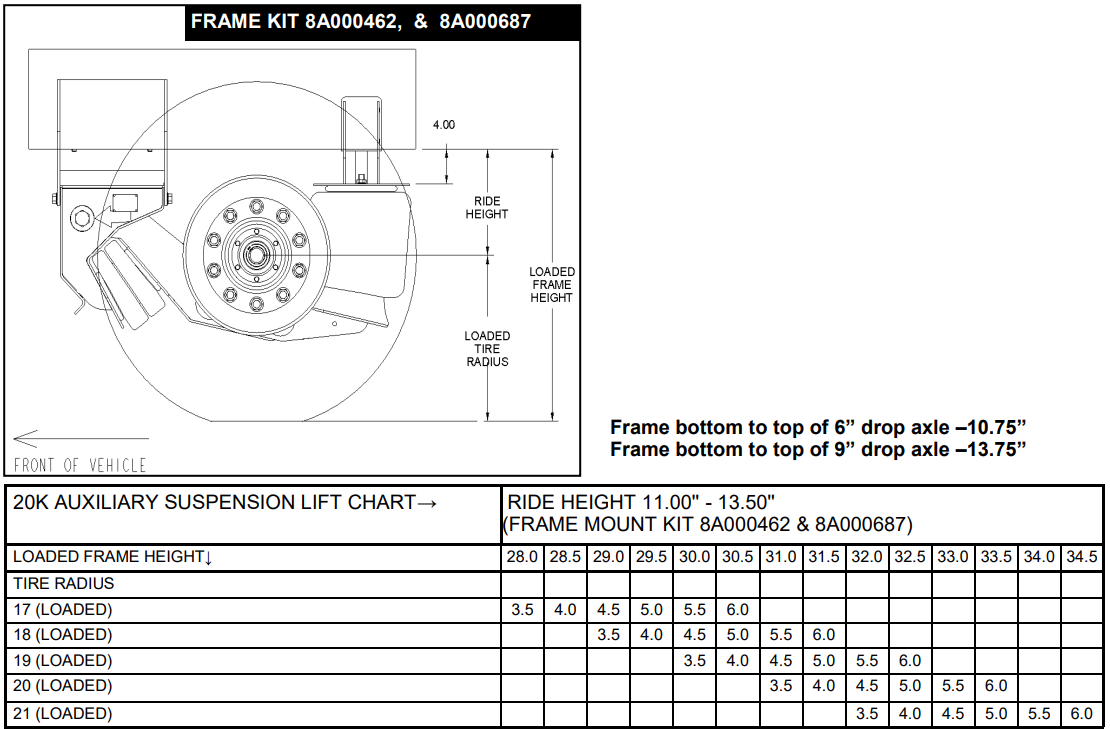

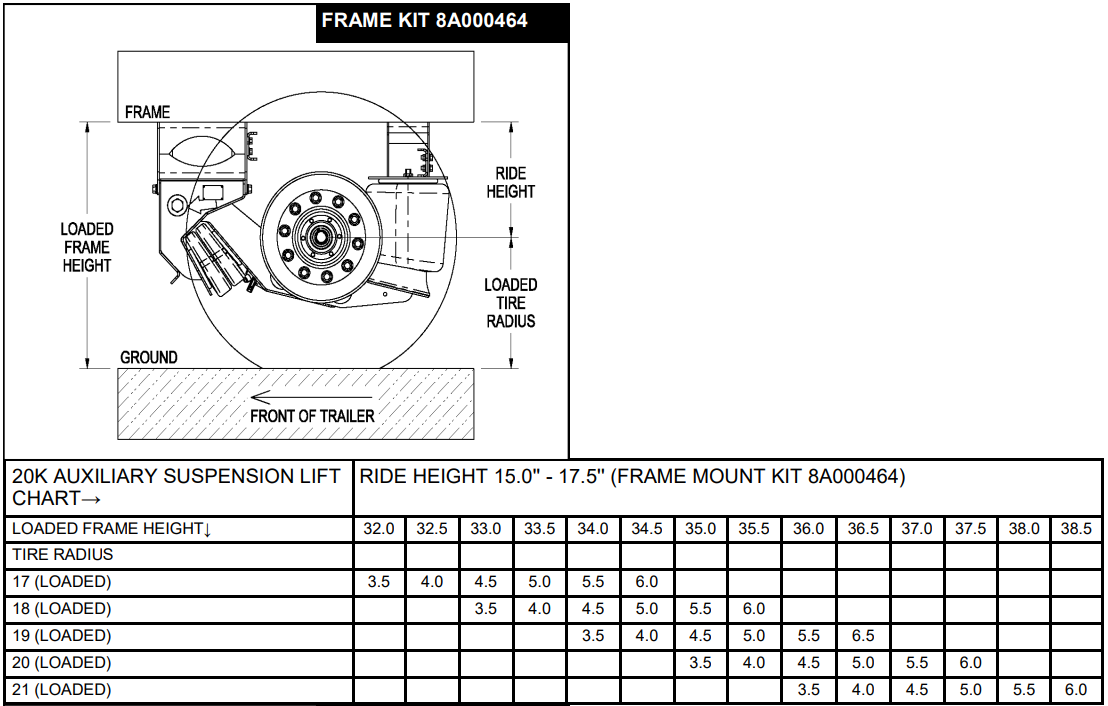

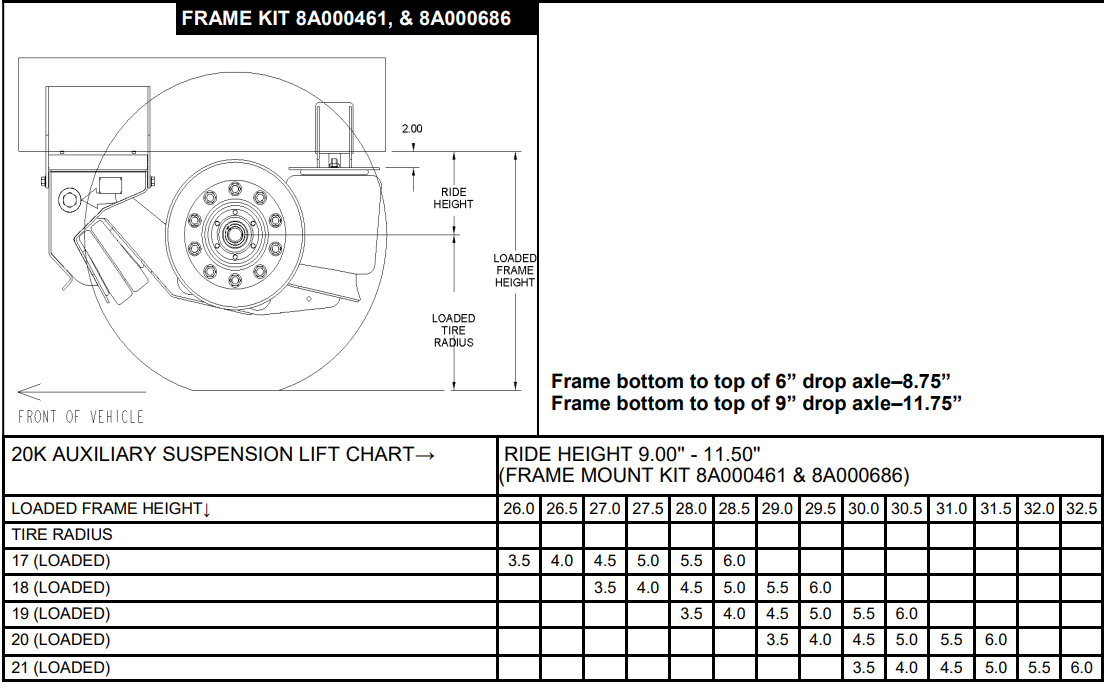

Frame Bracket Truck Mount 7" to 9.5" Ride Height (8A000460), Truck Mount 9" to 11.5" Ride Height (8A000461), Truck Mount 11" to 13.5" Ride Height (8A000462), Truck Mount 13" to 15.5" Ride Height (8A000464)
Air Control Kits Standard Air Control Kit (Includes Installation Kit), Air Control Kit with Sealed Box
Optional Equipment Air Tank Kit, 1244 CU IN.

The DuraMax 20K Lift Axle, for tag or pusher positions, incorporates several patented features for easier installation, increased stability and durable performance. The patented, interchangeable ride height brackets allow the installer to manage inventory dollars and still offer a lift axle for nearly any truck. The separate brackets allow the user to easily move the lift axle to a different truck. The compact mounting envelope (24.6’’) combined with the optional integrated air control system saves valuable frame rail space. The separate ride height brackets and pre-plumbed integrated air control kit can save 2-3 hours of installation time. The DuraMax Lift Axle is also available in 13K or 17K capacity. The unique design allows 11’’ to 15’’ of ride height and 15’’ of travel, making it outstanding for tag position applications encountering uneven terrain. The direct arm to axle connection increases stability and reduces maintenance. The DuraMax is completely unitized at the factory, insuring accurate alignment of the suspension. It is available with 15’’ or 20’’ wheels for maximum lift and clearance.

  • Interchangeable Ride-Height Brackets
  • Faster Installation Time
  • 5-Day Lead-Time on Standard Orders
  • Lift Axle Warranty
