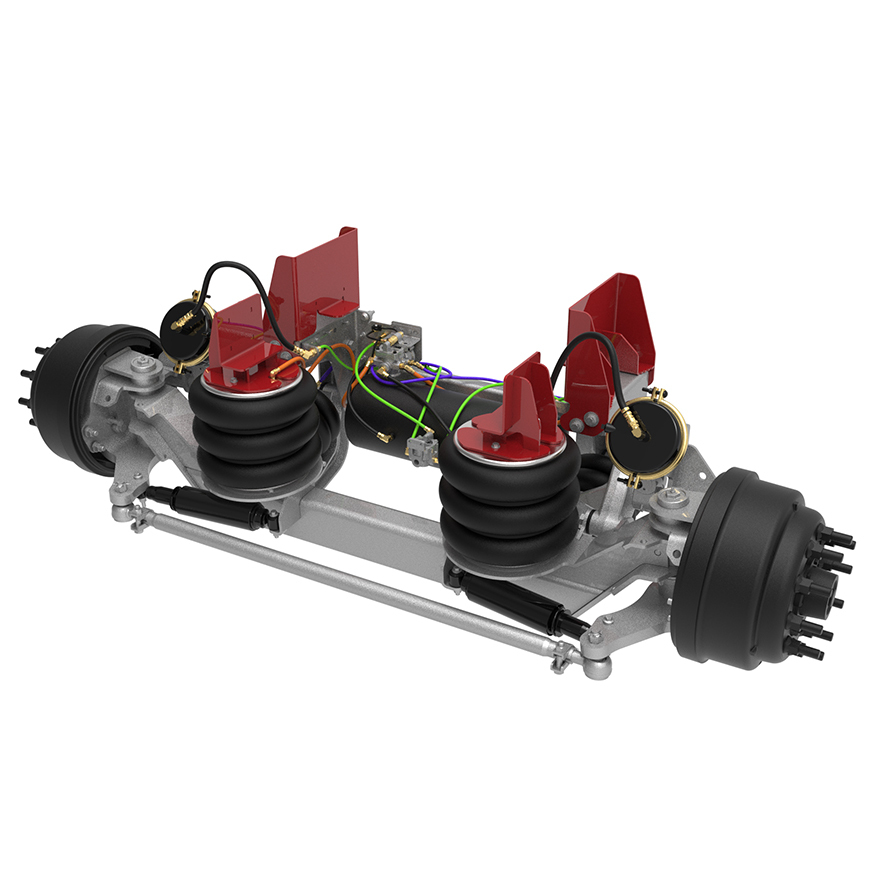

  • 20K Self-Steer Lift Axle - Integrated Air for 10" to 12.5" Ride Height
  • Self-Steer Lift Axle
Image ${currentSlide} of ${totalSlides}
  • 20K Self-Steer Lift Axle - Integrated Air for 10" to 12.5" Ride Height
  • Self-Steer Lift Axle
Image ${currentSlide} of ${totalSlides}

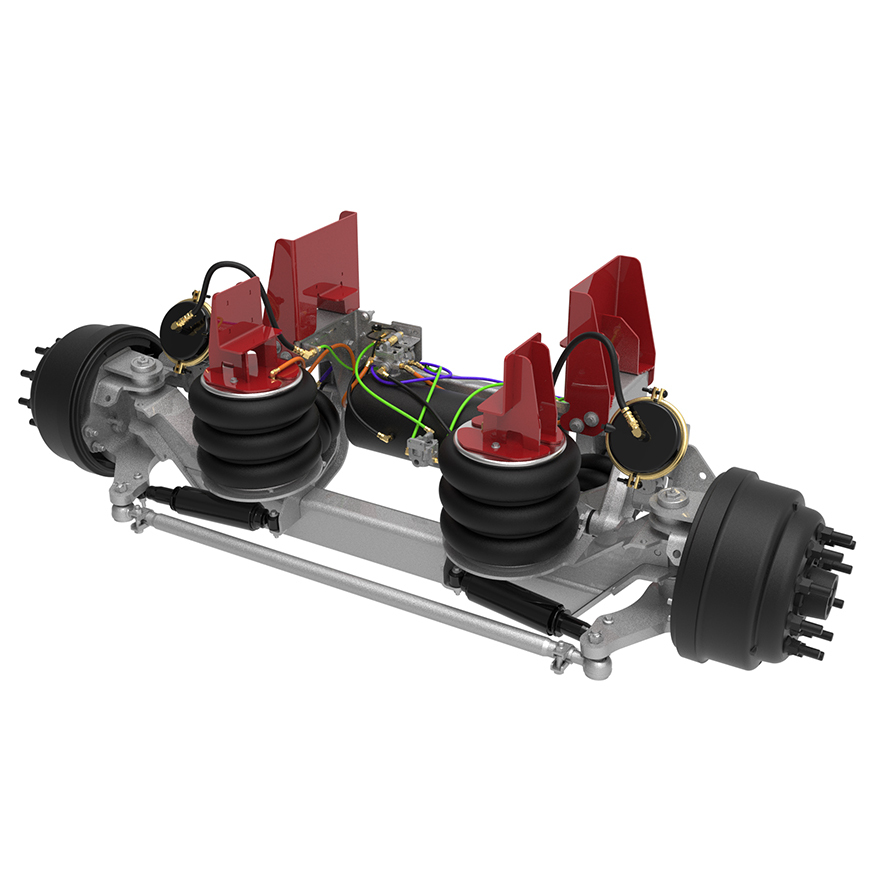

  • 20K Self-Steer Lift Axle - Integrated Air for 12" to 14.5" Ride Height
  • Self-Steer Lift Axle
Image ${currentSlide} of ${totalSlides}
  • 20K Self-Steer Lift Axle - Integrated Air for 12" to 14.5" Ride Height
  • Self-Steer Lift Axle
Image ${currentSlide} of ${totalSlides}

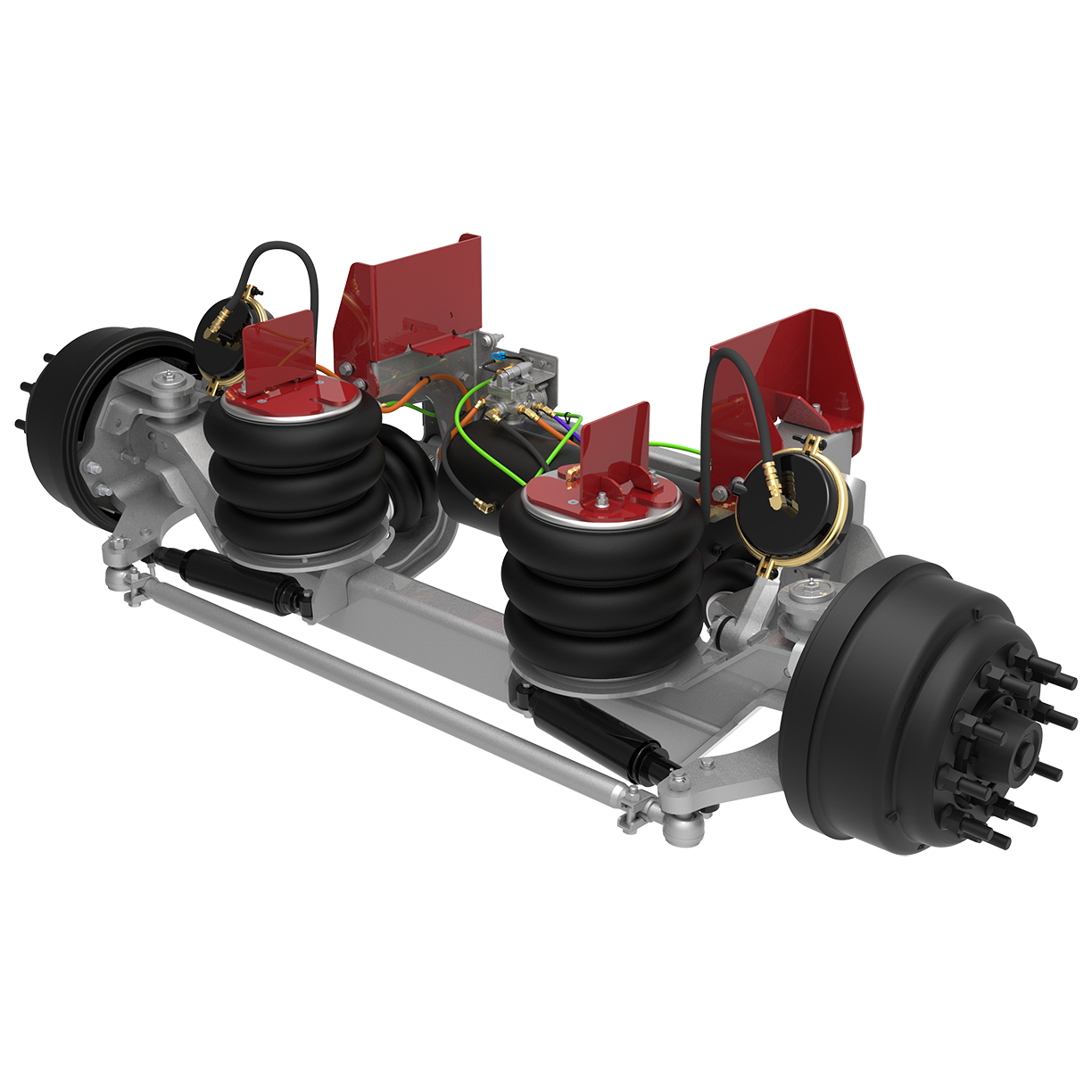

Link 20K Steerable Lift Axle / 8 - 10.5 Inch Ride Height / Non Sealed Box - Control Module ${currentTitle}

Link Mfg

KTP #:
8A000852-420-13501023
KTP #:
${ currentVariant?.sku }
Part Number:
${ currentVariant?.mpn }
Cross Reference Number:
${ currentVariant?.crossReferenceNumber }

Price: $9,215.65

Sale price: ${currentVariant?.salePriceAsCurrency}

List price: ${currentVariant?.priceAsCurrency}

Price: ${currentVariant?.priceAsCurrency}

  • Free shipping Please allow 4-7 days for delivery

${notification.message}

Wheel Ends Piloted Hubs and Drums

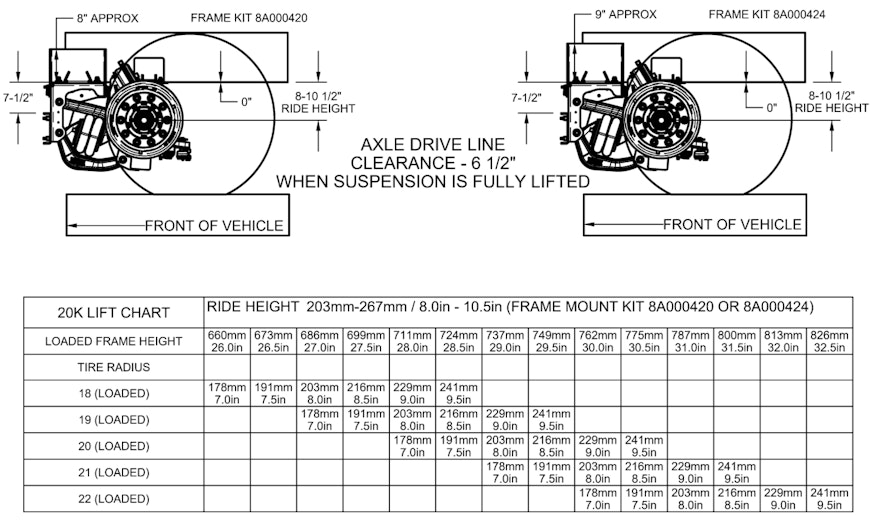

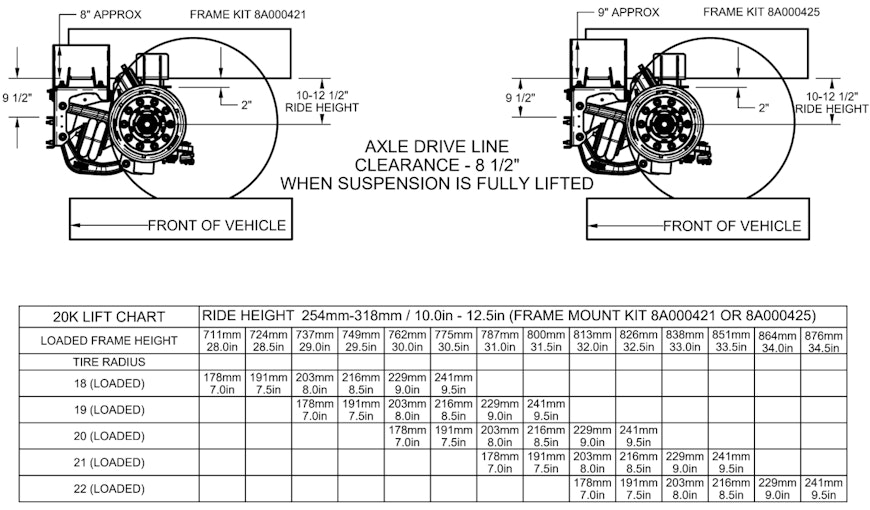

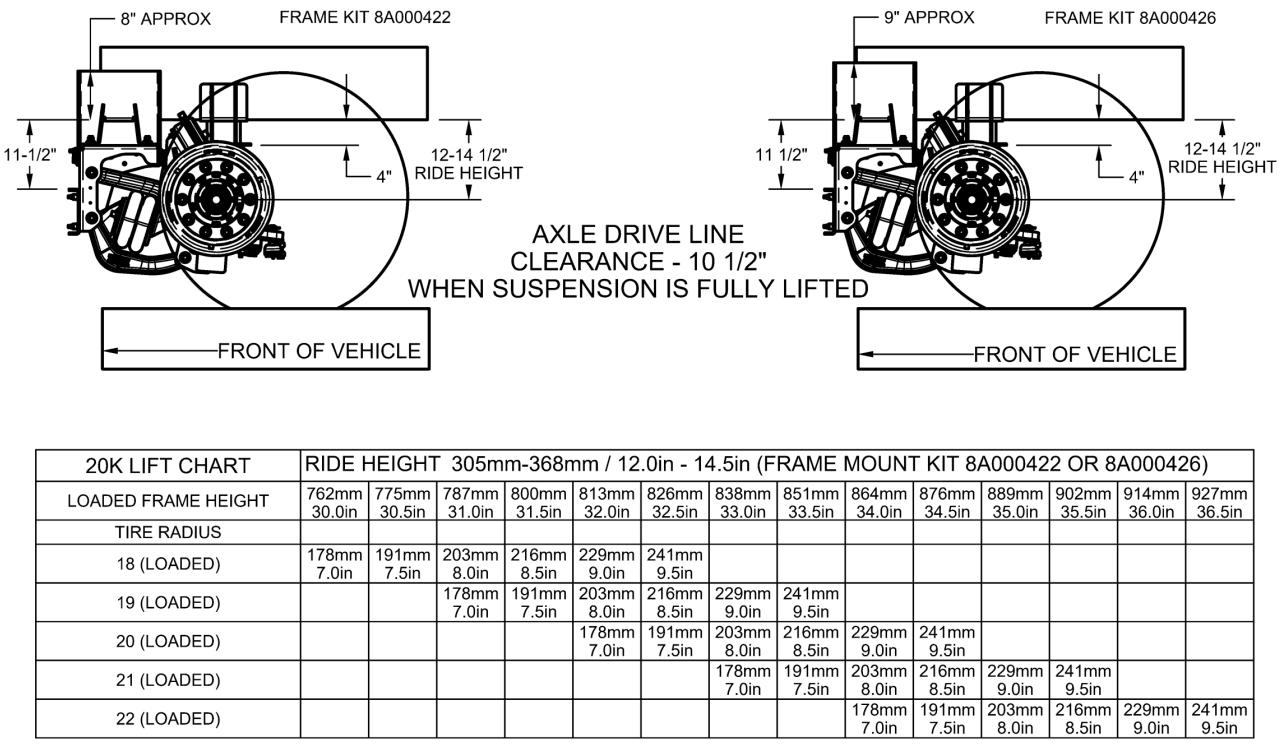

Frame Bracket Truck Mount 8" to 10.5" Ride Height (8A000420), Truck Mount 10" to 12.5" Ride Height (8A000421), Truck Mount 12" to 14.5" Ride Height (8A000421)
Air Control Kits 13501023 Non-Sealed Box - Integrated Control Module, 13501024 Sealed Box - Integrated Control Module

The DuraLift Self-Steer lift axles from Link come in four lightweight capacities – 8K, 10K, 13.5K and 20K – that incorporate several distinctive features. The patented, interchangeable ride height brackets allow the installer to manage inventory dollars and still offer a lift axle for nearly any truck. The improved lift spring geometry assures longer lift spring life and less downtime for the owner. A compact mounting envelope, combined with optional integrated air control system saves valuable frame rail space. The separate ride height brackets and pre-plumbed integrated air control kit can save up to 2-3 hours of installation time. Our redesigned DuraLift 13.5 Lift Axle takes convenience to a new level. The new design adds optional Fender Bracket Attachments that don’t require hub removal and optional Reverse Lock. And, by repositioning the lift bags to reduce bushing wear and utilizing industry-standard wheel end components, we’ve simplified your maintenance process and inventory requirements.

  • Interchangeable Ride-Height Brackets
  • Faster Installation Time
  • 5-Day Lead-Time on Standard Orders
  • Lift Axle Warranty
