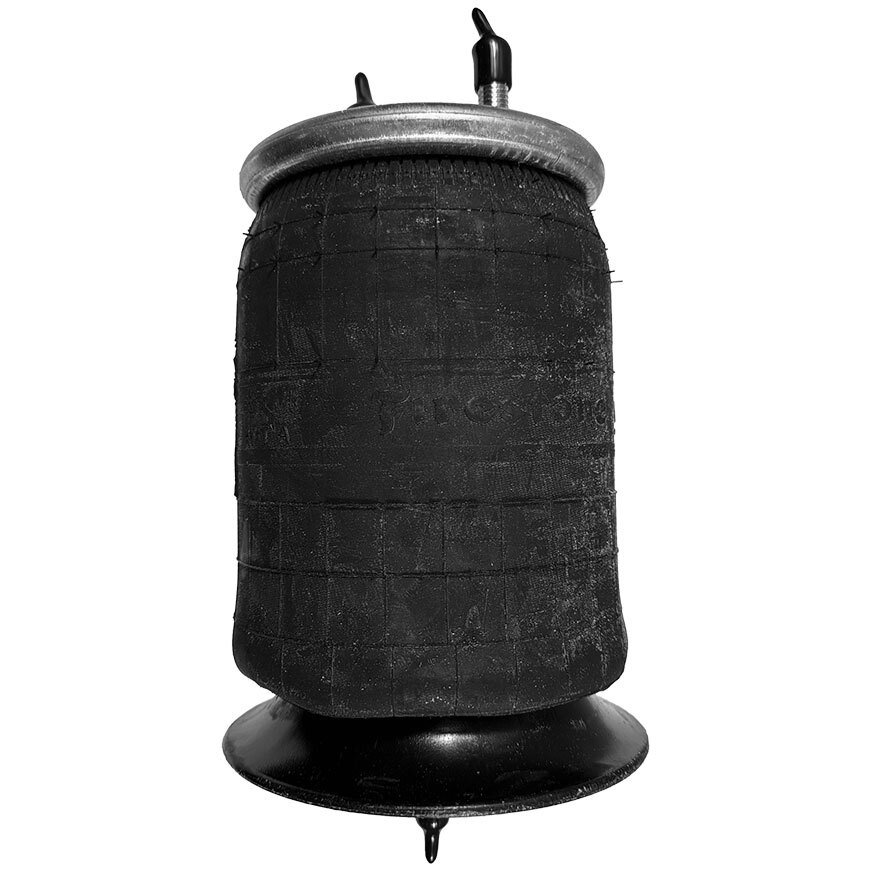

Firestone Air Spring W013585423 Firestone Air Spring W013585423
Firestone
- KTP #:
- 15800116
- MPN:
- W01-358-5423
- Cross Reference Number:
- FS5423
- KTP #:
- ${ currentVariant?.sku }
- Part Number:
- ${ currentVariant?.mpn }
- Cross Reference Number:
- ${ currentVariant?.crossReferenceNumber }
Price: $220.68
Sale price: ${currentVariant?.salePriceAsCurrency}
List price: ${currentVariant?.priceAsCurrency}
Price: ${currentVariant?.priceAsCurrency}
${notification.message}
${notification.message}
| Max Working Diameter | 8.5 in |
| Air Spring Type | Rolling Lobe |
| Air Spring Convolutions | Single |

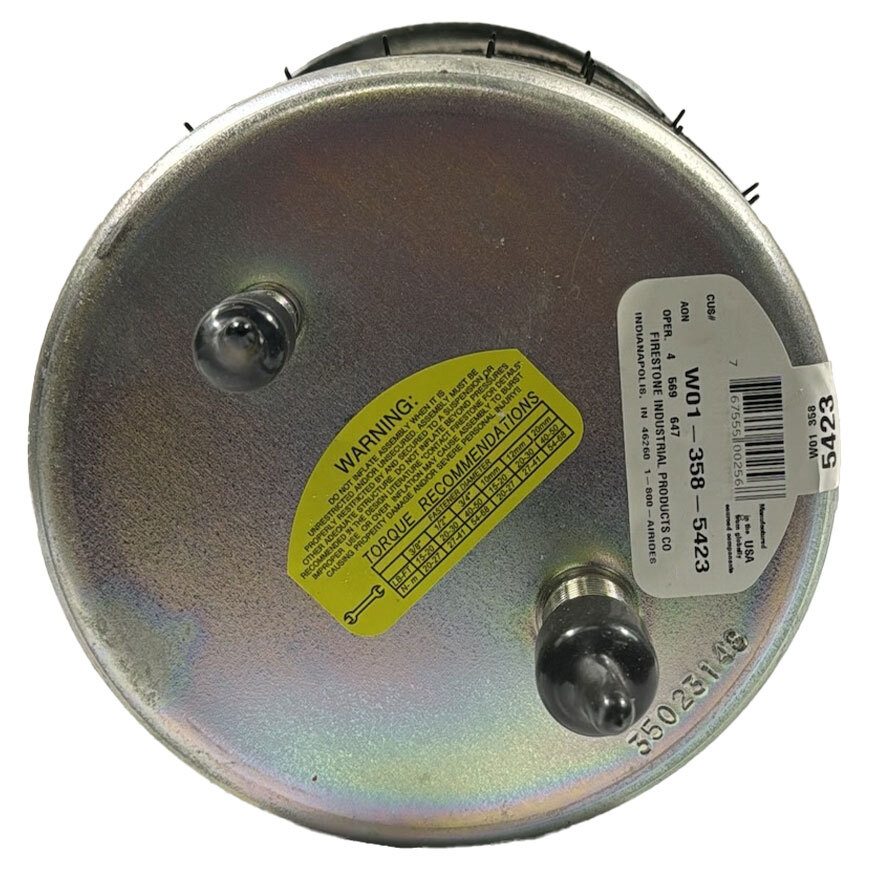

| Top Mounting | 1x combination stud, 1x stud |
| Top Plate Diameter | 6.31 in |
| Bottom Mounting | 1x Stud |
| Bottom Piston/Plate Diameter | 7.24 in |
| Piston Height | 3.15 in |
| Compressed Height | 4.94 in |
| Extended Height | 16 in |
| Bellows Number | 6 6.5-13 |
| Air Connection Configuration | Top - Single |
The Firestone Air Spring W013585423, ensures diligent and low natural frequency between tare and full load. This air spring boasts effective cargo protection, even on poor road surfaces, excellent comfort and health protection for the truck driver, and safe driving conditions. These air springs also offer the capability to lower or raise the truck's body height to match a ramp's elevation or to set up a suitable platform.
-
- Minimizes cost of downtime
- World-renowned OEM and development partner
- Provides superior driving comfort and safety
- Stands out in the market with maximum service life and accurately defined load-carrying capability
- Offers first-rate cushioning, assembly fit, and burst pressure
- For 68127/8559 applications
| ContiTech | AS5423, CONTI 68127 |
| Denso | 5307 |
| Gates | 70756 |
| PAI | 5423 |
| Wetherill Associates, Inc. (WAI) | 68127 |
| Other | 13585423, 1DK10B5423, 5235, 57005423, 65346, 8559, AS54230, EFS5423, FIW013585423, FS5423, TRAS8559 |
