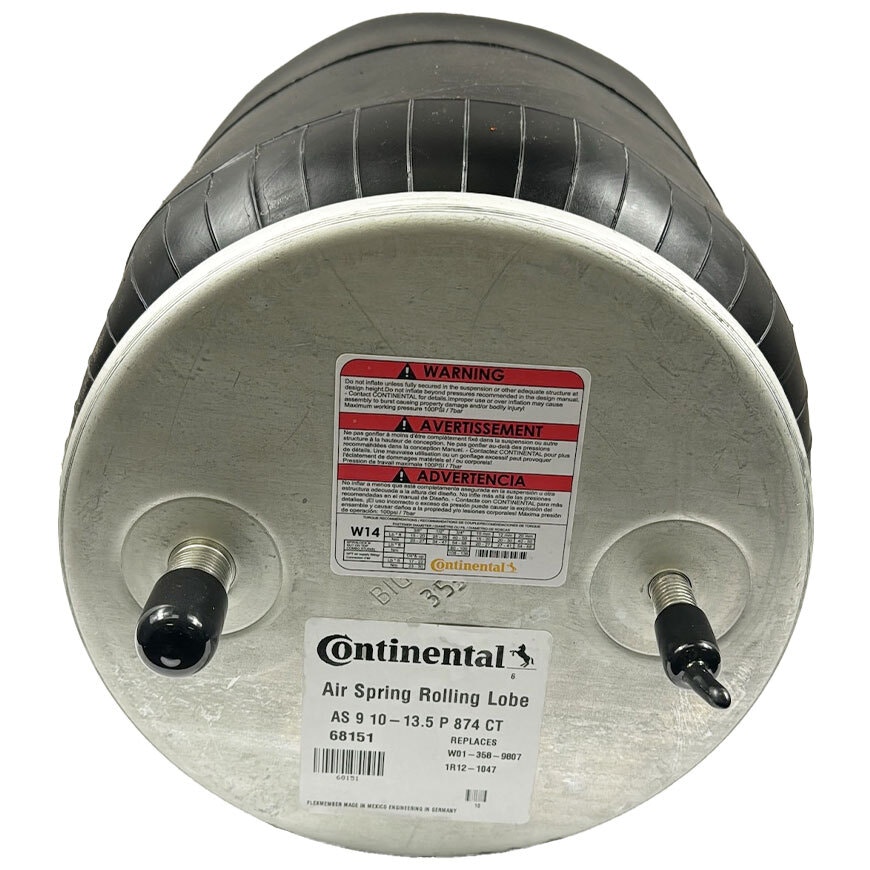

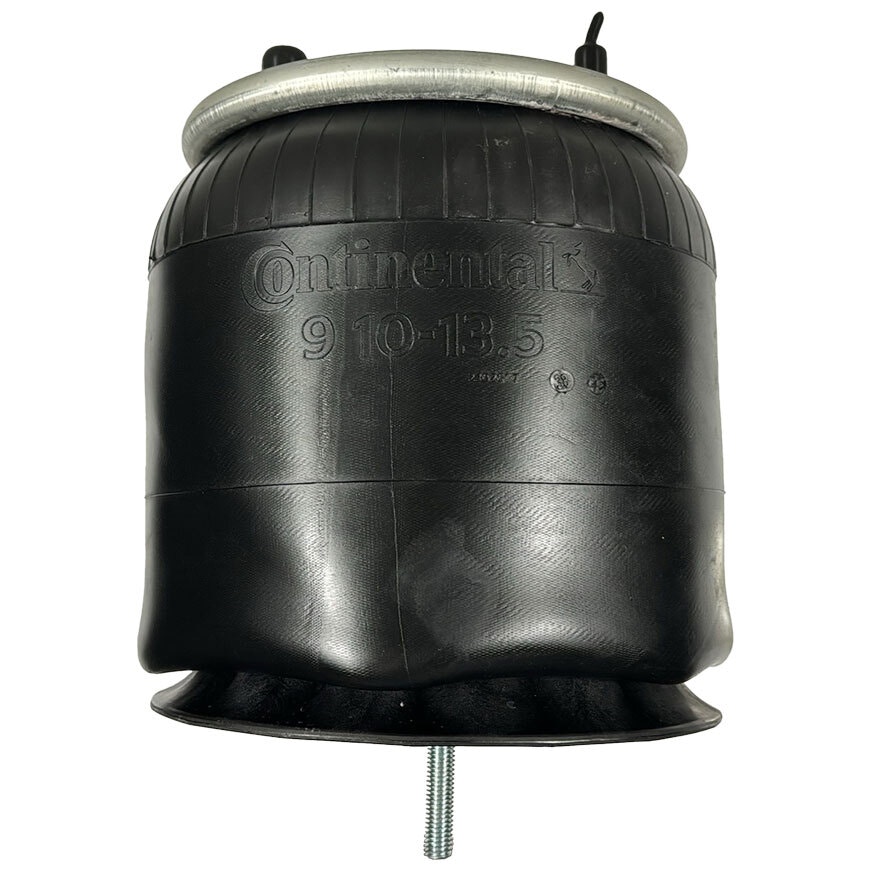

ContiTech Air Spring 68151
ContiTech
- KTP #:
- 15800219
- MPN:
- 68151
- Cross Reference Number:
- 9 10-13.5 P 874, 910-13.5, W01-358-9807, 1R12-1047
- KTP #:
- ${ currentVariant?.sku }
- Part Number:
- ${ currentVariant?.mpn }
- Cross Reference Number:
- ${ currentVariant?.crossReferenceNumber }
Price: $262.89
Sale price: ${currentVariant?.salePriceAsCurrency}
List price: ${currentVariant?.priceAsCurrency}
Price: ${currentVariant?.priceAsCurrency}
- Ships via UPS In stock items ship within 48 hours
- Ships via UPS In stock items ship within 48 hours
${notification.message}
- Ships via UPS In stock items ship within 48 hours
${notification.message}

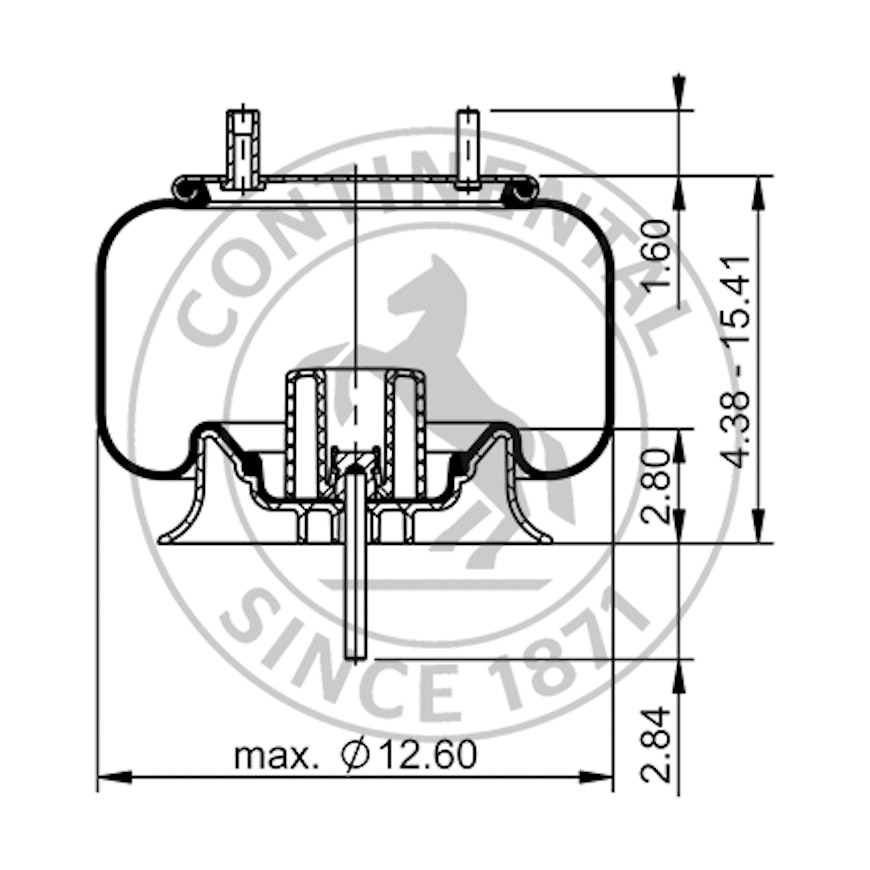

| Extended Height | 15.5 in |
| Max Working Diameter | 12.6 in |

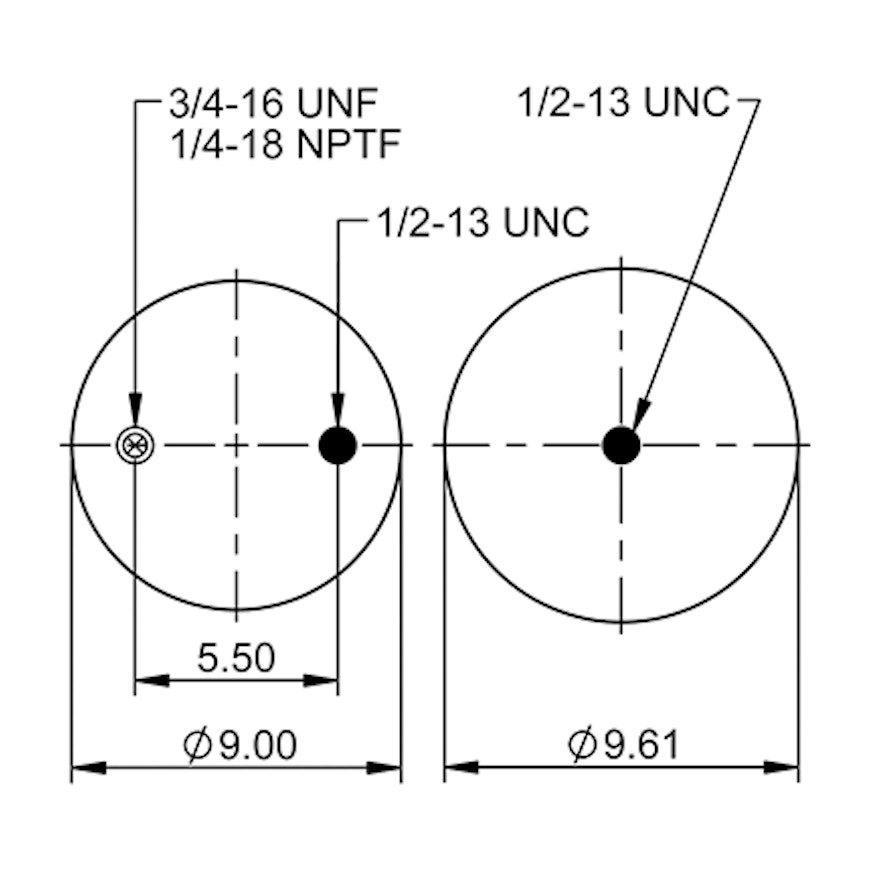

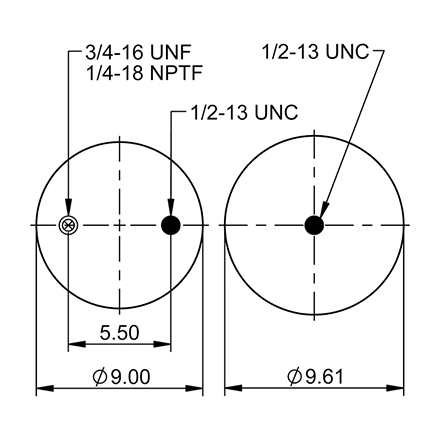

| Top Mounting | 1x Combination Stud, 1x Stud |
| Piston Height | 2.8 in |
| Bottom Mounting | 1x stud |
| Compressed Height | 4.38 in |
| Bottom Piston/Plate Diameter | 9.61 in |
| Top Plate Diameter | 9 in |
| Air Connection Configuration | Top - Single |
| Air Spring Convolutions | Single |
| Air Spring Type | Rolling Lobe |
| Bellows Number | 9 10-13.5 |
This ContiTech Air Spring 68151/1R12-1047/8874 maintains the steady capability to lower or raise the truck's body height to match a ramp's elevation or to set up a suitable platform. These air springs also achieve persistent and low natural frequency between tare and full load. This ensures effective cargo protection, even on poor road surfaces, excellent comfort and health protection for the truck driver, and safe driving conditions.
- Springs have passed servo-hydraulic and durability tests for almost all load conditions
- Fuel economy and payload increase thanks to their lightweight design for optimal suspension characteristics
- Best heat dissipation and flexibility in the market due to exclusively engineered rubber
- Offers first-rate cushioning, assembly fit, and burst pressure
- Features a factory-like fit for hassle-free assembly
- World-renowned OEM and development partner
- For SAF Holland applications
- 2-year/200,000 mile warranty
| Automann | 1DK23I-9807 |
| Continental | 9 10-13.5 P 874 |
| Firestone | W01-358-9807, 1T15M-2 |
| FleetPride | AS9807 |
| Goodyear | 1R12-1047, 566243142 |
| Primeride | AS PR9M13.5 9807 |
| Road Choice | AS9807 |
| SAF Holland | 50857000, 90557372 |
| Triangle | AS-8874 |
| TRP | AS98070 |
