ContiTech Air Spring 65593 ContiTech Air Spring 65593
ContiTech
- KTP #:
- 15800168
- MPN:
- 66340
- Cross Reference Number:
- 1010-15 S 871 | W01-358-8782| 1R13-109
- KTP #:
- ${ currentVariant?.sku }
- Part Number:
- ${ currentVariant?.mpn }
- Cross Reference Number:
- ${ currentVariant?.crossReferenceNumber }
Price: $252.25
Sale price: ${currentVariant?.salePriceAsCurrency}
List price: ${currentVariant?.priceAsCurrency}
Price: ${currentVariant?.priceAsCurrency}
${notification.message}
${notification.message}
| VMRS | 016008001 |
| Air Spring Convolutions | Single |

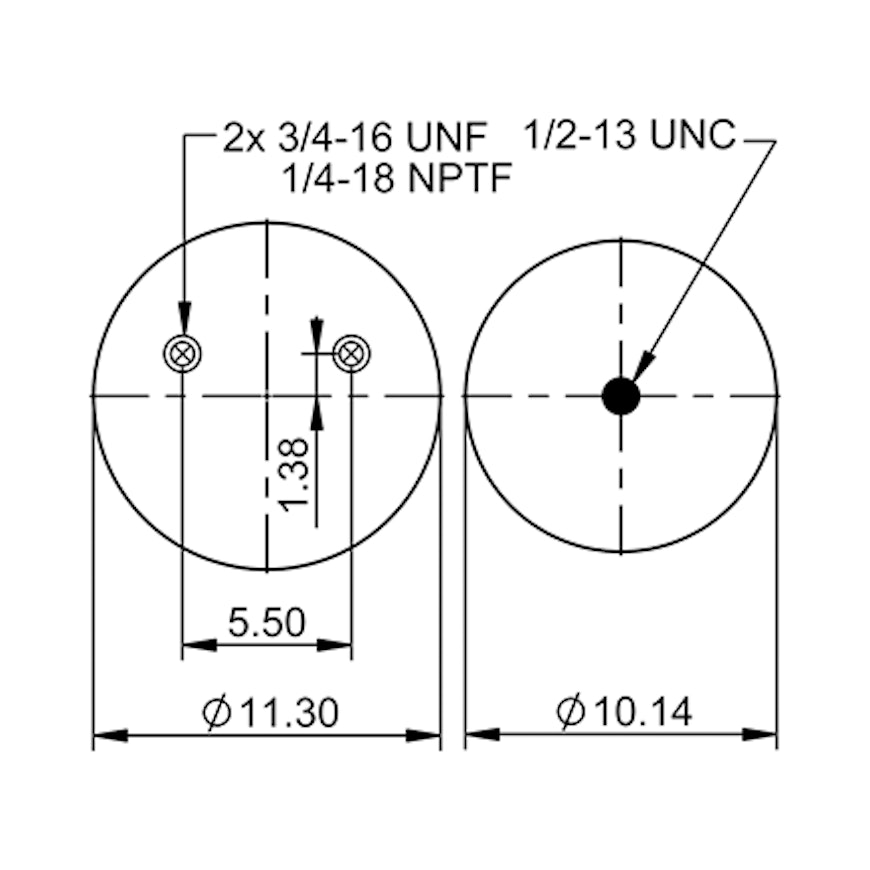

| Top Plate Diameter | 11.31 in |
| Top Mounting | Stud 3/4 in-16 UNF |
| Bottom Piston/Plate Diameter | 10.16 in |
| Bottom Mounting | Stud 1/2 in-13 UNC |
| Air Connection Configuration | Top - Dual |

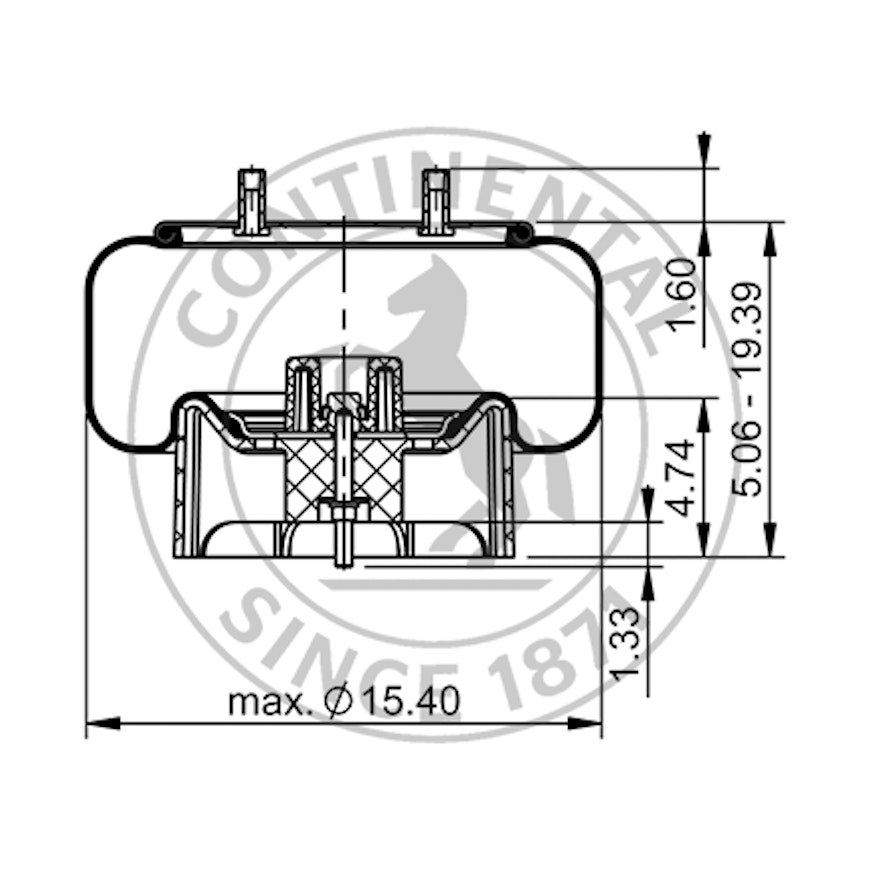

| Extended Height | 19.40 in |
| Compressed Height | 5.10 in |
| Piston Height | 4.74 in |
| Max Working Diameter | 15.40 in |
The ContiTech Air Spring 65593/1R14-172/1R14-190/8745 boasts the capability to lower or raise the truck's body height to match a ramp's elevation or to set up a suitable platform. These air springs also achieve persistent and low natural frequency between tare and full load. This ensures effective cargo protection, even on poor road surfaces, excellent comfort and health protection for the truck driver, and safe driving conditions.
- Fuel economy and payload increase thanks to their lightweight design
- Best heat dissipation and flexibility in the market due to exclusively engineered rubber
- Offers first-rate cushioning, assembly fit, and burst pressure
- Features a factory-like fit for hassle-free assembly
- World-renowned OEM and development partner
- For 65593/9310179 applications
- 2-year/200,000 mile warranty
| Automann | AB1DK28M8774, 1DK28M-8774, 1DK28M8774 |
| Contitech | 65593, 65796, AS8774, OE65593 |
| Dayton Parts | 1R14172 |
| Edelmann | 8774 |
| Firestone | W013588774, W01-358-8774 |
| Flagg Suspension Parts | 64246 |
| Forecast | 8745 |
| Four Seasons | 66647 |
| Freightliner Trucks | CTH 65593 8774 |
| Goodyear | 1R14190, 1R14-190 |
| HDValue | HDV8774 |
| Hendrickson | S27341, C-25873, S-27341 |
| Supercede From | 1R14-172 |
| Truck Replacement Parts Inc. | 66706, AS87740 |
| Unknown | S-25873, S25873, HENS-25873, HENS25873 |
| Watson & Chalin | AS-0159G, AS-0159, AS0159, AS0159G |
| Other | TR8774, CTH655938774, C25873 |
