ContiTech Air Spring 64715 ContiTech Air Spring 64715
ContiTech
- KTP #:
- 15800193
- MPN:
- 64383
- Cross Reference Number:
- 910-21 P 448 | W01-358-9370| 1R12-580| 8448
- KTP #:
- ${ currentVariant?.sku }
- Part Number:
- ${ currentVariant?.mpn }
- Cross Reference Number:
- ${ currentVariant?.crossReferenceNumber }
Price: $264.50
Sale price: ${currentVariant?.salePriceAsCurrency}
List price: ${currentVariant?.priceAsCurrency}
Price: ${currentVariant?.priceAsCurrency}
${notification.message}
${notification.message}

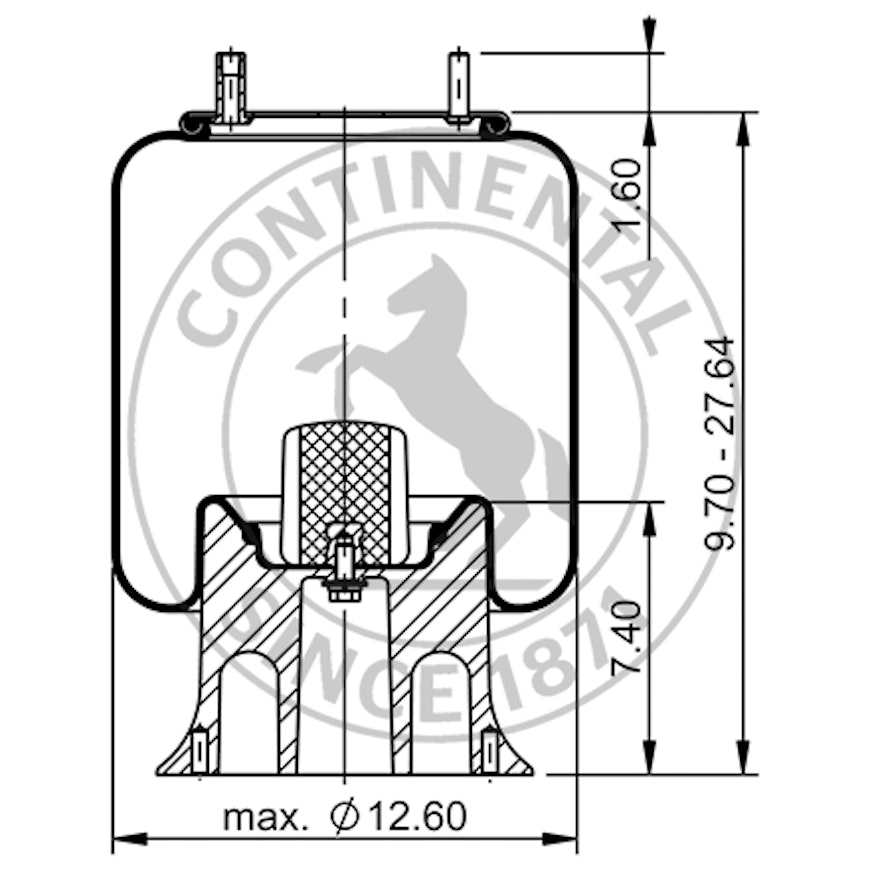

| VMRS | 016008001 |
| Air Spring Convolutions | Single |

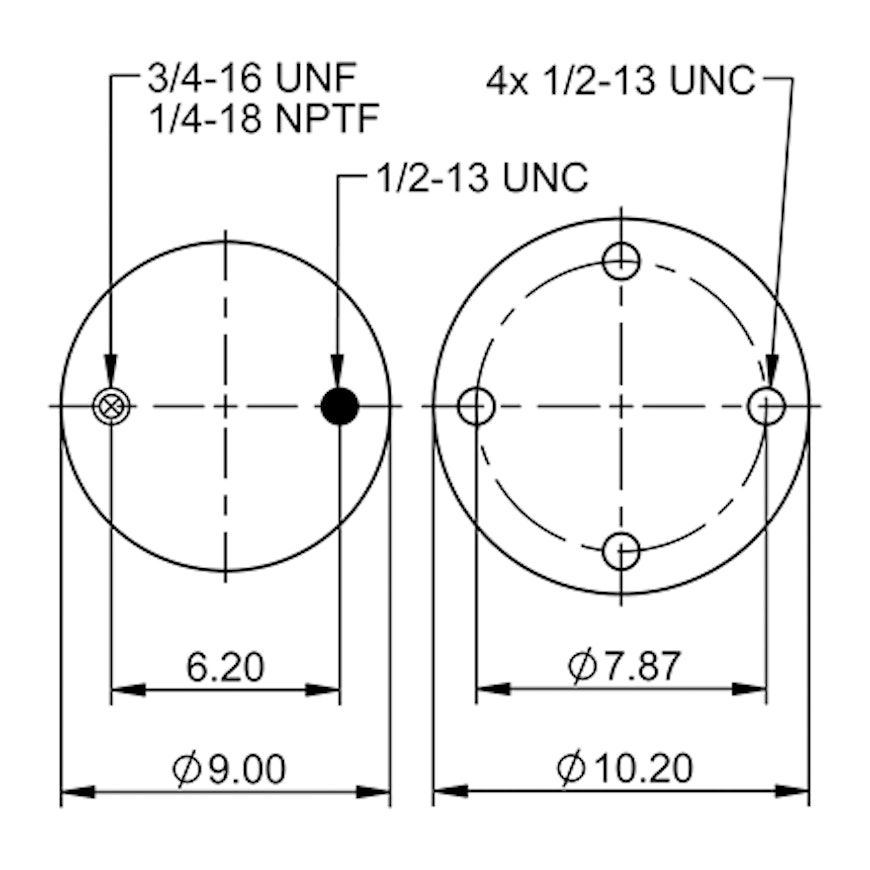

| Top Plate Diameter | 9.00 in |
| Top Mounting | Combination Stud 3/4 in-16 UNF, Stud 1/2 in-13 UNC |
| Bottom Piston/Plate Diameter | 10.24 in |
| Bottom Mounting | Threaded Hole 1/2 in-13 UNC |
| Air Connection Configuration | Top - Single |
| Extended Height | 28.30 in |
| Compressed Height | 9.70 in |
| Piston Height | 7.40 in |
| Max Working Diameter | 12.60 in |
The ContiTech Air Spring 64715/1R12-335/8361 keeps heavy duty truck bodies at a fixed distance from the road. This heavy duty air spring guarantees security and protection for any type of load. These air springs also offer the ability to lower or raise the truck's body height to match a ramp's elevation or to set up a compatible platform.
- Minimizes cost of downtime
- World-renowned OEM and development partner
- Provides superior driving comfort and safety
- Stands out in the market with maximum service life and accurately defined load-carrying capability
- Offers first-rate cushioning, assembly fit, and burst pressure
- For 64715 applications
| Airtech Airsprings | 39321 K, 39321 P |
| Automann | FS9321A 1DK23N-9321A, AB1DK23N9321, 1DK23N9321A |
| Brake & Wheel Parts | M3545 |
| Chalmers Suspension | SC2120 |
| ContiTech | 65036, AS9321 |
| Dayton Parts | 3529321, B14249, 352-9321, 1R12335 |
| Euclid | FS9321 |
| Firestone | W01-358-9321, W013589321 |
| Flagg Suspension Parts | 8361, 63882 |
| Gates | 7640 |
| Goodyear | 1R12-335 |
| HDValue | HDV9321 |
| Hendrickson | B-14249, NS501304 |
| Holland Equipment, Ltd. | 57009321 |
| Ridewell Corp. | 1003589321C |
| Timken Co., The | 9321 |
| Truck Replacement Parts Inc. | AS93211 |
| Unknown | MAF9321B |
| Volvo Truck | 85101160 |
| Watson & Chalin | AS0036G, AS-0036G |
| Other | 64291, 64715, TRAS8361, TR8361, S9321, EIEFS9321, EFS9321, 39321P, 39321K |
