ContiTech Air Spring 64474 ContiTech Air Spring 64474
ContiTech
- KTP #:
- 15800170
- MPN:
- 64423
- Cross Reference Number:
- 910-17.5 P 536 | W01-358-8903 | 8536
- KTP #:
- ${ currentVariant?.sku }
- Part Number:
- ${ currentVariant?.mpn }
- Cross Reference Number:
- ${ currentVariant?.crossReferenceNumber }
Price: $180.25
Sale price: ${currentVariant?.salePriceAsCurrency}
List price: ${currentVariant?.priceAsCurrency}
Price: ${currentVariant?.priceAsCurrency}
${notification.message}
${notification.message}

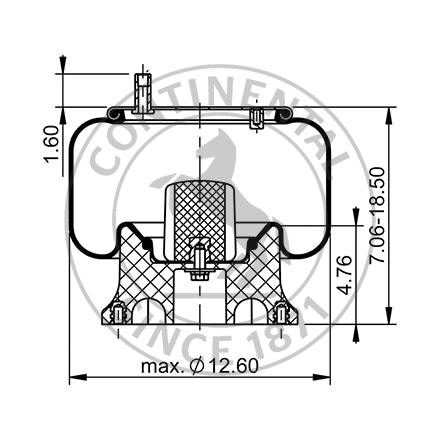

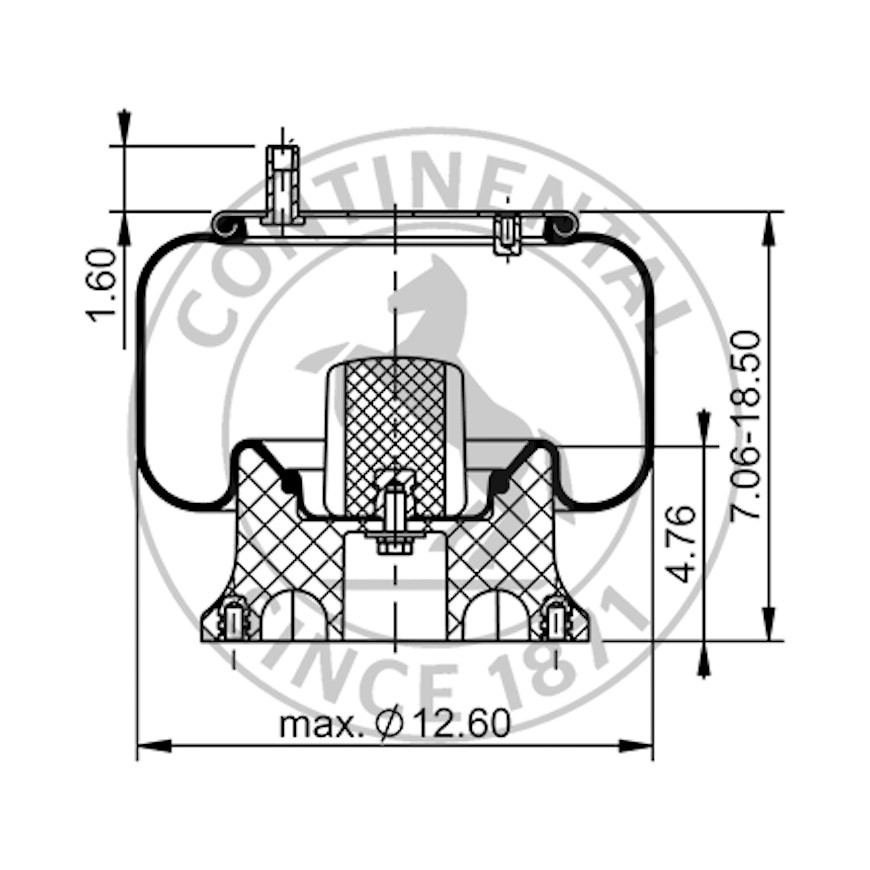

| VMRS | 016008001 |
| Air Spring Convolutions | Single |

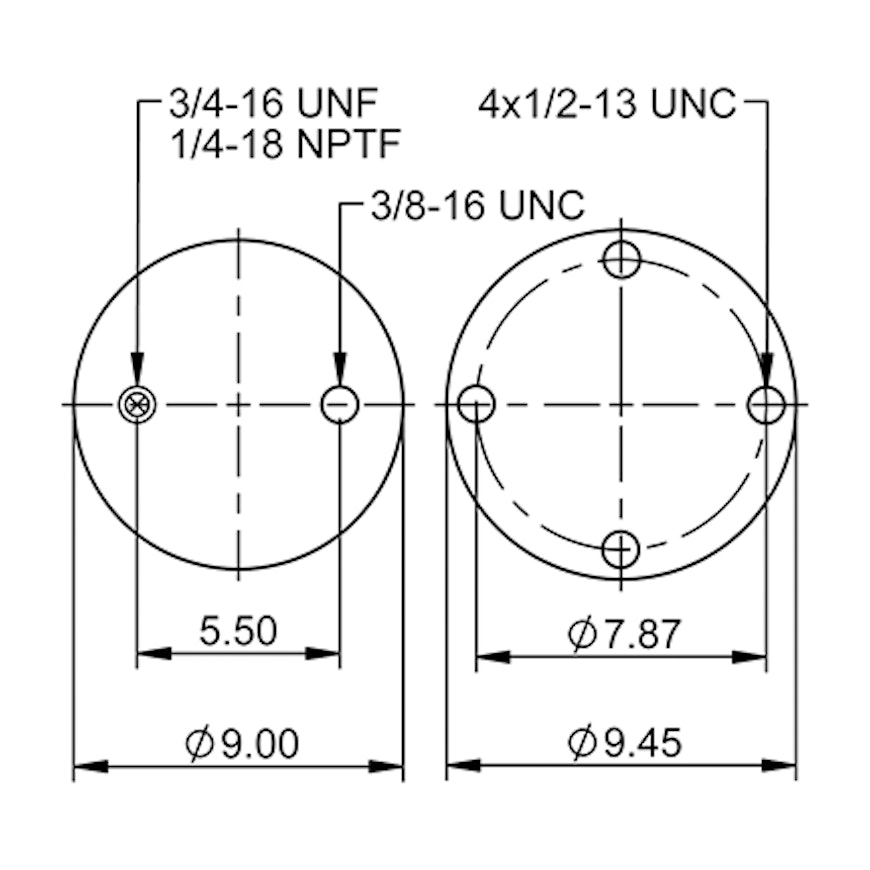

| Top Plate Diameter | 9.00 in |
| Top Mounting | Combination Stud 3/4 in-16 UNF, Threaded Hole 3/8 in-16 UNC |
| Bottom Piston/Plate Diameter | 9.53 in |
| Bottom Mounting | Threaded Hole 1/2 in-13 UNC |
| Air Connection Configuration | Top - Single |
| Extended Height | 18.50 in |
| Compressed Height | 7.10 in |
| Piston Height | 4.76 in |
| Max Working Diameter | 12.60 in |
The ContiTech Air Spring 64474/1R12-438/8462 keeps heavy duty truck bodies at a fixed distance from the road. This heavy duty air spring guarantees security and protection for any type of load. These air springs also offer the ability to lower or raise the truck's body height to match a ramp's elevation or to set up a compatible platform.
- Minimizes cost of downtime
- World-renowned OEM and development partner
- Provides superior driving comfort and safety
- Stands out in the market with maximum service life and accurately defined load-carrying capability
- Offers first-rate cushioning, assembly fit, and burst pressure
- For 64474/1R12-438/8462 applications
| AP Exhaust | 8462 |
| Automann | 68555, AB1DK23I8805 1DK23I-8805, 1DK23I8805, AB1DK23I-8805 |
| ContiTech | AS8805 |
| Dayton Parts | 1R12438 |
| Firestone | W013588805, W01-358-8805 |
| Goodyear | 1R12-438 |
| Meritor | FS8805 |
| Ridewell Corp. | 1003588805C |
| Truck Replacement Parts Inc. | 68829, AS88050 |
| Webb | 64115, 64474 |
| Other | 05 |
