ContiTech Air Spring 64421 ContiTech Air Spring 64421
ContiTech
- KTP #:
- 15800161
- MPN:
- 64645
- Cross Reference Number:
- 1010.5-15 P 460 | W01-358-8709 | 1R13-159 | 8460
- KTP #:
- ${ currentVariant?.sku }
- Part Number:
- ${ currentVariant?.mpn }
- Cross Reference Number:
- ${ currentVariant?.crossReferenceNumber }
Price: $232.25
Sale price: ${currentVariant?.salePriceAsCurrency}
List price: ${currentVariant?.priceAsCurrency}
Price: ${currentVariant?.priceAsCurrency}
${notification.message}
${notification.message}
| VMRS | 016008001 |
| Air Spring Convolutions | Single |

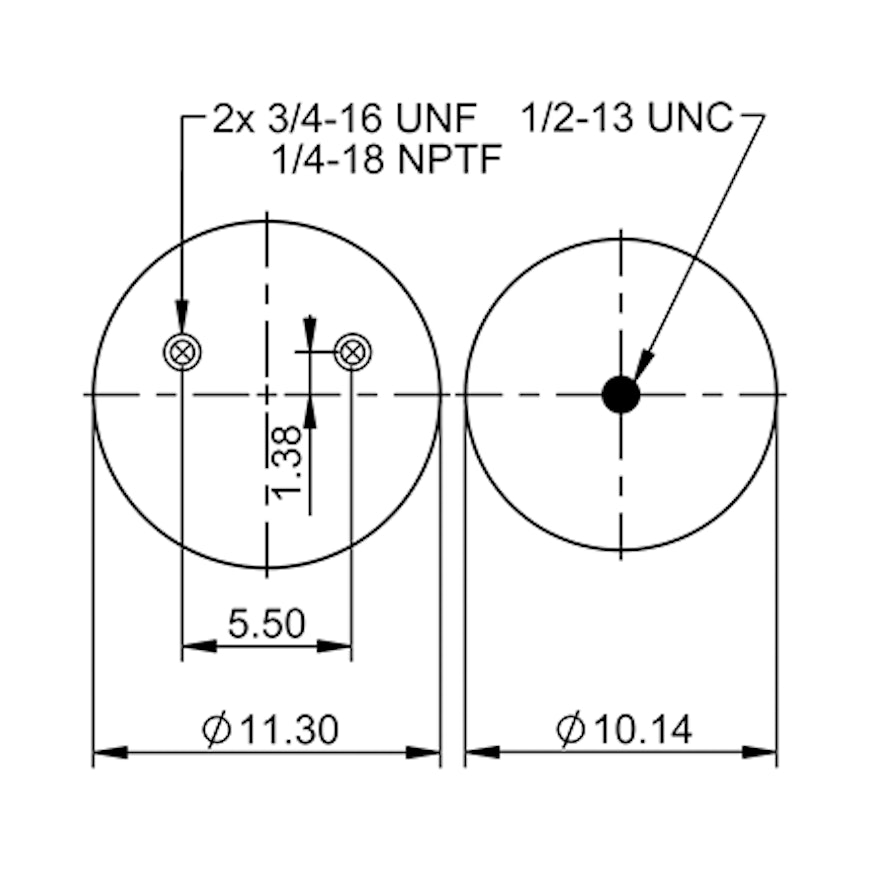

| Top Plate Diameter | 11.31 in |
| Top Mounting | Stud 3/4 in-16 UNF |
| Bottom Piston/Plate Diameter | 10.16 in |
| Bottom Mounting | Stud 1/2 in-13 UNC |
| Air Connection Configuration | Top - Dual |

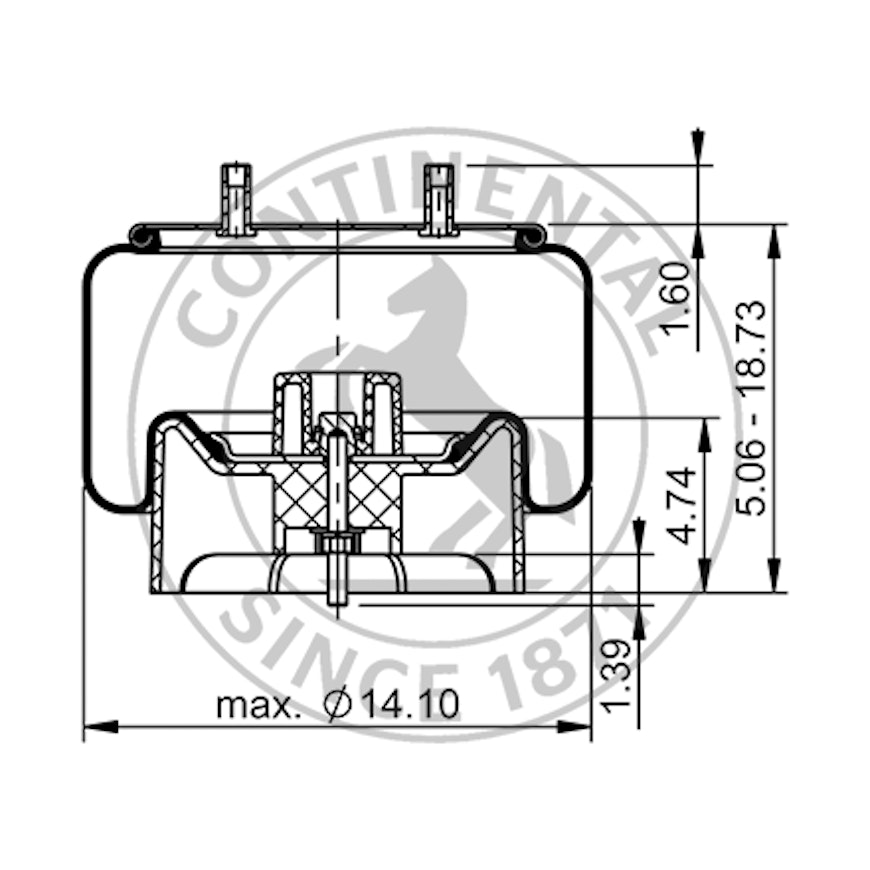

| Extended Height | 19.30 in |
| Compressed Height | 5.10 in |
| Piston Height | 4.74 in |
| Max Working Diameter | 14.10 in |
The ContiTech Rolling Lobe Air Spring 64421/1R14-171/8523 achieves constant and low natural frequency between tare and full load. This ensures effective cargo protection, even on poor road surfaces, excellent comfort and health protection for the truck driver, and safe driving conditions. Rolling lobe air springs incorporate a piston which allows the flexible member to roll along the piston’s surface. These air springs also offer the ability to lower or raise the truck's body height to match a ramp's elevation or to set up a compatible platform.
- Rolling lobe style
- Fuel economy and payload increase thanks to their lightweight design
- Best heat dissipation and flexibility in the market due to exclusively engineered rubber
- Offers first-rate cushioning, assembly fit, and burst pressure
- Features a factory-like fit for hassle-free assembly
- World-renowned OEM and development partner
- For 64421/9310179 applications
- 2-year/200,000 mile warranty
| Airsource | 8523 |
| AirTech Airsprings | 38091KPP |
| Arvin | A2258P1576 |
| Automann | 65061, AB1DK28E8091, 1DK28E-8091, 1DK28E8091, AB1DK28E-8091 |
| Centennial | 1R14-245 |
| ContiTech | 64421, 73592, AS8091, AS PR11LL16 8091 |
| Dayton Parts | 4528091, 1R14171, 1R14245 |
| Euclid | FS8091 |
| Firestone | W013588091 W01-358-8091 |
| Flagg Suspension Parts | 64234, AS8523 |
| HDValue | HDV8091 |
| Hendrickson | C-20901, S21784, S-21784 |
| Mack Trucks, Inc. | 73893, AS RC11LL16 8091 |
| Navistar | 1R14242, 1R14-242 |
| Supercede From | 1R14-171 |
| Truck Replacement Parts Inc. | 68852, AS80910 |
| Unknown | 8091, FAW013588091, FI W01 358 8091, FIR/8091, FI-W01-358-8091, S20901, MAF8091B |
| Other | 91, TRAS8523, TR8523, TR8091, C20901, ASRC11LL168091, ASPR11LL168091, 11105A16P523 |
