ContiTech Air Spring 64402 ContiTech Air Spring 64402
ContiTech
- KTP #:
- 15800223
- MPN:
- 64412
- Cross Reference Number:
- 910-17.5 P 548 | W01-358-9935| 1R12-532| 8548
- KTP #:
- ${ currentVariant?.sku }
- Part Number:
- ${ currentVariant?.mpn }
- Cross Reference Number:
- ${ currentVariant?.crossReferenceNumber }
Price: $194.00
Sale price: ${currentVariant?.salePriceAsCurrency}
List price: ${currentVariant?.priceAsCurrency}
Price: ${currentVariant?.priceAsCurrency}
${notification.message}
${notification.message}
| VMRS | 016008001 |
| Air Spring Convolutions | Single |

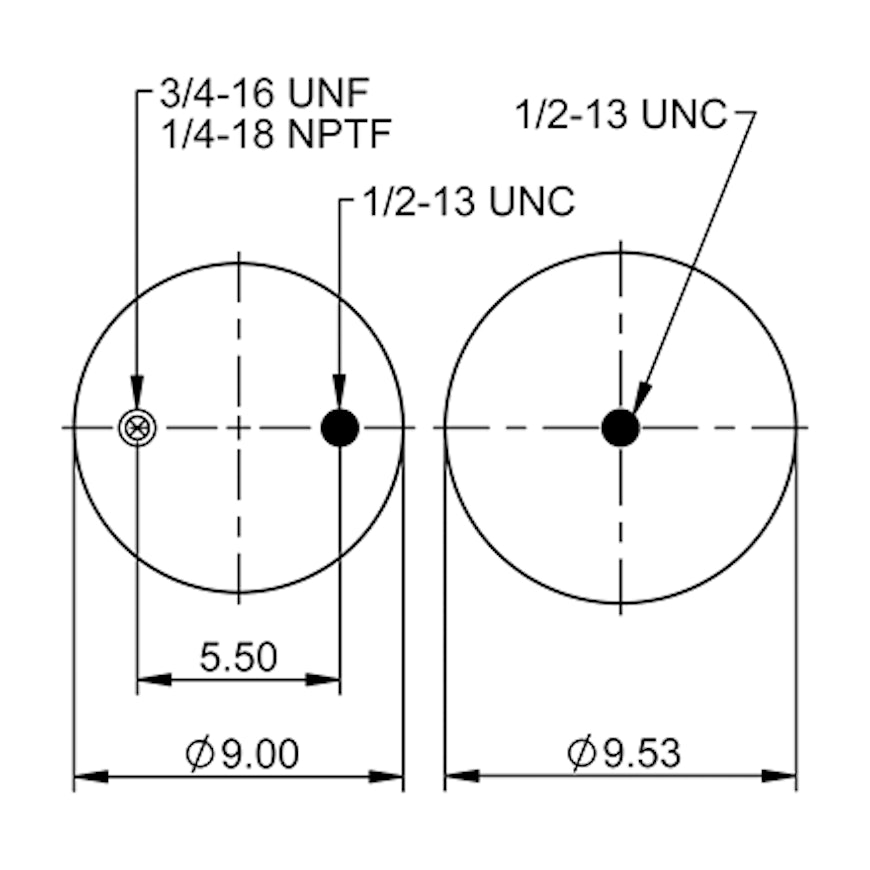

| Top Plate Diameter | 9.00 in |
| Top Mounting | Top Mounting |
| Bottom Piston/Plate Diameter | 9.53 in |
| Bottom Mounting | Stud 1/2 in-13 UNC |
| Air Connection Configuration | Top - Single |

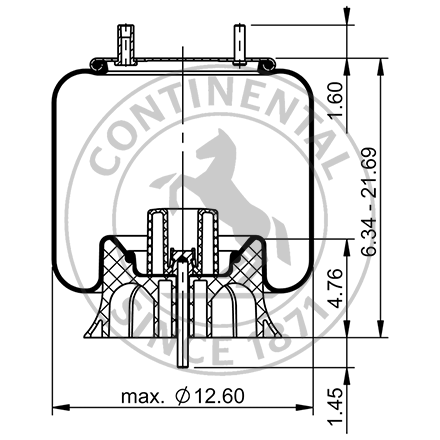

| Extended Height | 22.20 in |
| Compressed Height | 6.40 in |
| Piston Height | 4.76 in |
| Max Working Diameter | 12.60 in |
The ContiTech Air Spring 64402/1R12-502/8443 keeps the capability to lower or raise the truck's body height to match a ramp's elevation or to set up a suitable platform. These air springs also achieve persistent and low natural frequency between tare and full load. This ensures effective cargo protection, even on poor road surfaces, excellent comfort and health protection for the truck driver, and safe driving conditions.
- Springs have passed servo-hydraulic and durability tests for almost all load conditions
- Fuel economy and payload increase thanks to their lightweight design
- Best heat dissipation and flexibility in the market due to exclusively engineered rubber
- Offers first-rate cushioning, assembly fit, and burst pressure
- Features a factory-like fit for hassle-free assembly
- World-renowned OEM and development partner
- For 64402 / 9308128 applications
- 2-year/200,000 mile warranty
| Airsource | 8443 |
| Automann | 65060, 1DK23P-9921, 1DK23P9921, AB1DK23P-9921, AB1DK23P9921 |
| ContiTech | 77307, AS9921, AS PR9M17.5 9921 |
| Dayton Parts | 4529921L, 1R12502 |
| Euclid | FS9921 |
| Firestone | W013589921 |
| Flagg Suspension Parts | 63885 |
| Fleetpride | 64402 |
| Leland Brake & Wheel Parts | 889921 |
| Mack Truck, Inc. | 73896, AS RC9M17.5 9921 |
| PAI | 9921 |
| Truck Replacement Parts Inc. | 68916, AS99210 |
| Unknown | W01-358-9921, W013589807, 1R12-502, HDV9921, MAF9921B |
| Watson & Chalin | AS0090, AS-0090 |
| Other | V68443, TRAS8443, TR8443, S9921, EIEFS9921, EFS9921, ASRC9M1759921, ASPR9M1759921, 39921KPP |
