- ContiTech Air Spring 64397
Image ${currentSlide} of ${totalSlides}
Image ${currentSlide} of ${totalSlides}
ContiTech Air Spring 64397 ContiTech Air Spring 64397
ContiTech
- KTP #:
- 15800167
- MPN:
- 65593
- Cross Reference Number:
- 1110.5F-17 P 745 | W01-358-8774| 1R14-174| 8745
- KTP #:
- ${ currentVariant?.sku }
- Part Number:
- ${ currentVariant?.mpn }
- Cross Reference Number:
- ${ currentVariant?.crossReferenceNumber }
Price: $214.75
Sale price: ${currentVariant?.salePriceAsCurrency}
List price: ${currentVariant?.priceAsCurrency}
Price: ${currentVariant?.priceAsCurrency}
${notification.message}
${notification.message}
| VMRS | 016008001 |
| Air Spring Convolutions | Single |

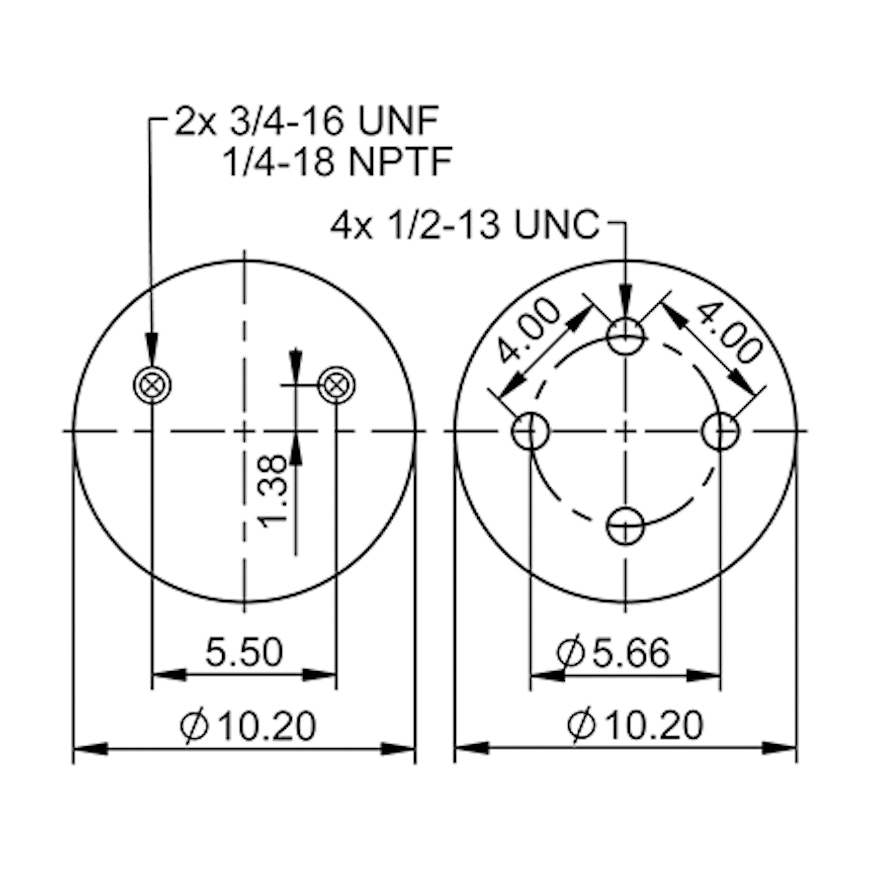

| Top Plate Diameter | 10.20 in |
| Top Mounting | Stud 3/4 in-16 UNF |
| Bottom Piston/Plate Diameter | 10.20 in |
| Bottom Mounting | Threaded Hole 1/2 in-13 UNC |
| Air Connection Configuration | Top - Dual |
| Extended Height | 19.00 in |
| Compressed Height | 7.10 in |
| Piston Height | 5.75 in |
| Max Working Diameter | 13.70 in |
The Contitech Air Spring 64397/1R13-124/8522 boasts the capability to lower or raise the truck's body height to match a ramp's elevation or to set up a suitable platform. These air springs also achieve persistent and low natural frequency between tare and full load. This ensures effective cargo protection, even on poor road surfaces, excellent comfort and health protection for the truck driver, and safe driving conditions.
- Fuel economy and payload increase thanks to their lightweight design
- Best heat dissipation and flexibility in the market due to exclusively engineered rubber
- Offers first-rate cushioning, assembly fit, and burst pressure
- Features a factory-like fit for hassle-free assembly
- World-renowned OEM and development partner
- For 64397/9317377 applications
- 2-year/200,000 mile warranty
| Airsource | 8522 |
| Airtech Airpsrings | 38755 KALU |
| AP Exhaust | 8755 |
| Automann | 65058, AB1DK25B-8755, AB1DK25B8755, 1DK25B8755, 1DK25B-8755 |
| Contitech | 64397, 73590, AS8755, CT64397, AS PR10B15 8755 |
| Dayton Parts | 64233, 1R13260, 1R13124, S22045 |
| Euclid | FS8755 |
| Firestone | W013588755 |
| HDValue | HDV8755 |
| Hendrickson | S-21623, S-22045 |
| Mack Trucks, Inc. | 73888, AS RC10B15 8755 |
| Supercede from | W01-358-8755, 1R13-124 |
| Truck Replacement Parts Inc. | 68796, AS87550 |
| Unknown | AS-8755, FI-W01-358-8755, MAF8755B, 1R13-260 |
| Other | EFS8755, TRAS8522, S21623, ASRC10B158755, ASPR10B158755, 38755KALU, 101015S711, 101015S522 |
