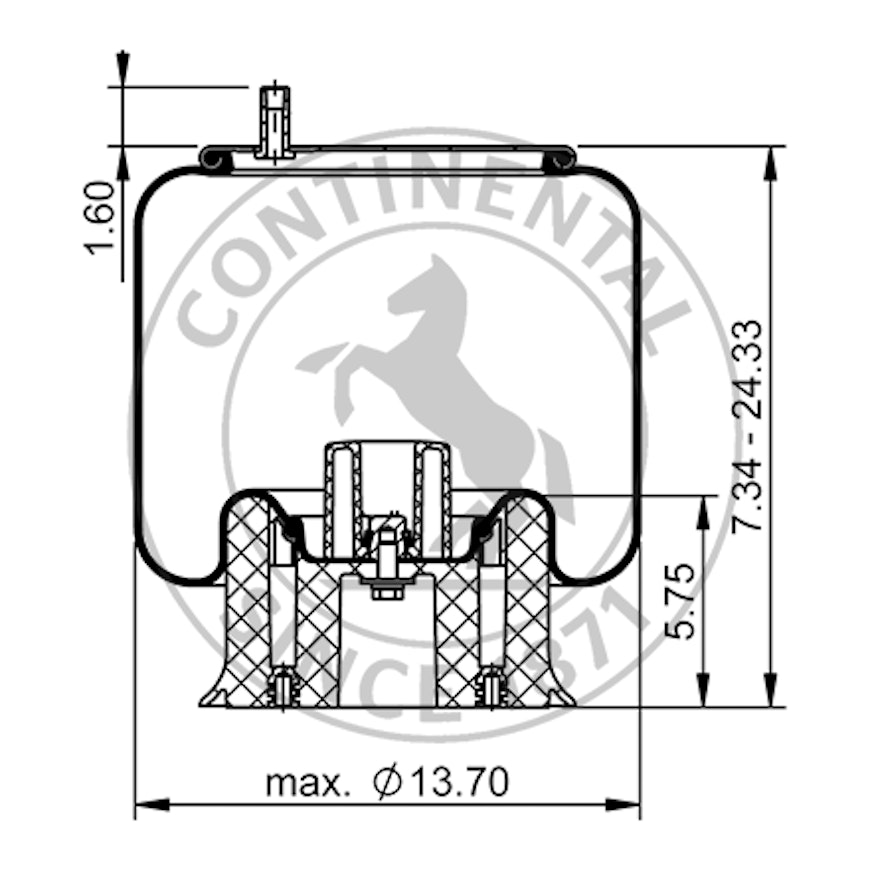

  • Side blueprint of Contitech Air Spring

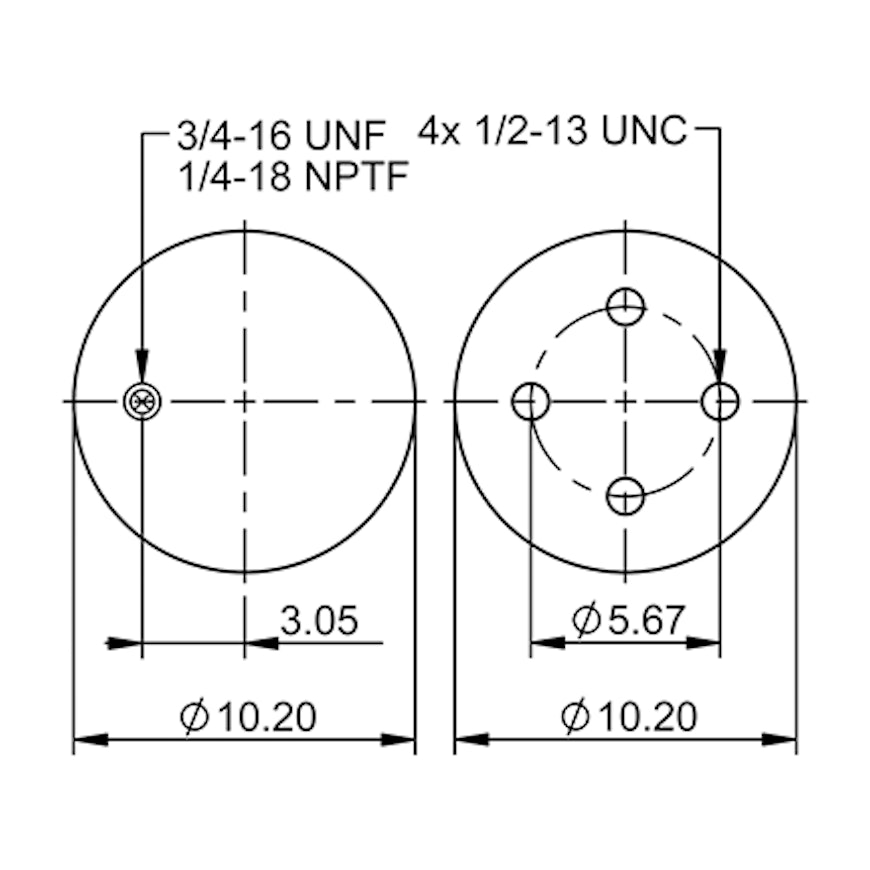

  • Top Down blueprint of Contitech Air Spring
Image ${currentSlide} of ${totalSlides}
  • Side blueprint of Contitech Air Spring
  • Top Down blueprint of Contitech Air Spring
Image ${currentSlide} of ${totalSlides}

ContiTech Air Spring 64394 ContiTech Air Spring 64394

ContiTech

KTP #:
15800207
MPN:
64395
Cross Reference Number:
910-12 A 427 | W01-358-9630| 1R12-367| 8427
KTP #:
${ currentVariant?.sku }
Part Number:
${ currentVariant?.mpn }
Cross Reference Number:
${ currentVariant?.crossReferenceNumber }

Price: $220.75

Sale price: ${currentVariant?.salePriceAsCurrency}

List price: ${currentVariant?.priceAsCurrency}

Price: ${currentVariant?.priceAsCurrency}

${notification.message}

VMRS 016008001
Air Spring Convolutions Single
Top Plate Diameter 10.20 in
Top Mounting Stud 3/4 in-16 UNF
Bottom Piston/Plate Diameter 10.20 in
Bottom Mounting Threaded Hole 1/2 in-13 UNC
Air Connection Configuration Top - Single
Extended Height 24.50 in
Compressed Height 7.50 in
Piston Height 5.75 in
Max Working Diameter 13.70 in

The ContiTech Double Convoluted Air Spring 64394/1R13-118/1R13-149/8434 boasts the capability to lower or raise the truck's body height to match a ramp's elevation or to set up a suitable platform. Double convoluted air springs are the simplest solution from a technical point of view for air-suspended secondary springs. As an elastic link between the bogie and railcar body, rolling bellows distance the railcar body to the platform and absorb track irregularities by minimizing the transmission of vibrations. These air springs also achieve persistent and low natural frequency between tare and full load. This ensures effective cargo protection, even on poor road surfaces, excellent comfort and health protection for the truck driver, and safe driving conditions.

  • Double Convoluted style
  • Fuel economy and payload increase thanks to their lightweight design
  • Best heat dissipation and flexibility in the market due to exclusively engineered rubber
  • Offers first-rate cushioning, assembly fit, and burst pressure
  • Features a factory-like fit for hassle-free assembly
  • World-renowned OEM and development partner
  • For 94394/9317377 applications
  • 2-year/200,000 mile warranty
AirTech Airsprings 30081-01 K, 3008101 K, 300810K
Automann 1DK25C9580, AB1DK25C-9580, AB1DK25C9580 1DK25C-9580
Centennial 1R13-258
Chalmers Suspension SC2761
ContiTech 73591, AS9580, FS9580, AS PR10B21 9580
Dayton Parts 1R13118 1R13258
Firestone W01-358-9580, W013589580
Flagg Suspension Parts 64078
Fleetpride 64394
Gates 9580
Goodyear 1R13-118, 1R13-149
HDValue HDV9580
Hendrickson S-20127, S20127, HS506500
Mack Trucks, Inc. 73890, AS RC10B21 9580
Monroe Shocks & Struts 65419
PAI 8434
Stemco Manufacturing Co. 1R13149
Truck Replacement Parts Inc. 68831, AS95800
Unknown C-20127, AS93940, MAF9580B
Other W013589262, TRAS8434, WA019580C, WA019580, TR9580, TR8434, ASRC10B219580, ASPR10B219580, 3008101K, 1R13081, 39580K, 101021P434
