- ContiTech Air Spring 64383
Image ${currentSlide} of ${totalSlides}
Image ${currentSlide} of ${totalSlides}
ContiTech Air Spring 64383 ContiTech Air Spring 64383
ContiTech
- KTP #:
- 15800195
- MPN:
- 64265
- Cross Reference Number:
- 910-18.5 P 519 | W01-358-9373| 1R12-403| 8519
- KTP #:
- ${ currentVariant?.sku }
- Part Number:
- ${ currentVariant?.mpn }
- Cross Reference Number:
- ${ currentVariant?.crossReferenceNumber }
Price: $276.25
Sale price: ${currentVariant?.salePriceAsCurrency}
List price: ${currentVariant?.priceAsCurrency}
Price: ${currentVariant?.priceAsCurrency}
${notification.message}
${notification.message}
| VMRS | 016008001 |
| Air Spring Convolutions | Single |

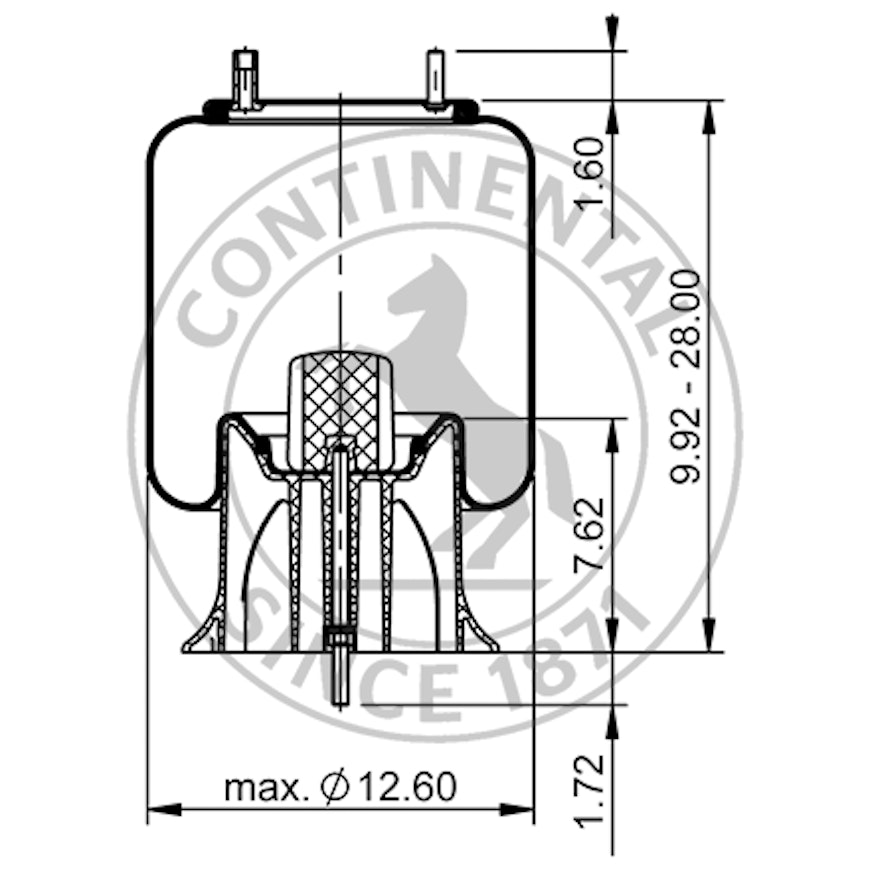

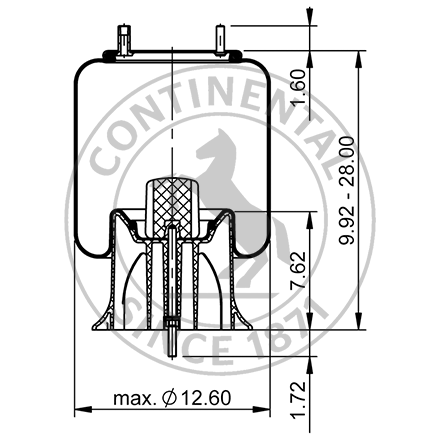

| Top Plate Diameter | 9.00 in |

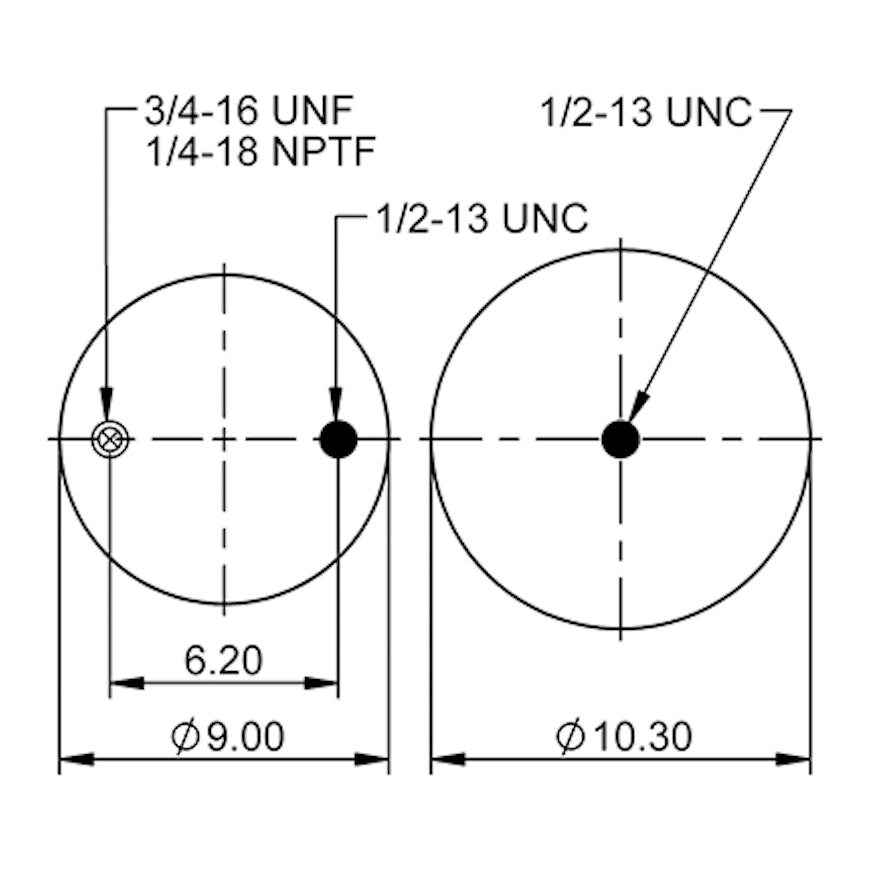

| Top Mounting | Combination Stud 3/4 in-16 UNF, Stud 1/2 in-13 UNC |
| Bottom Piston/Plate Diameter | 10.30 in |
| Bottom Mounting | Threaded Hole 1/2 in-13 UNC |
| Air Connection Configuration | Top - Single |
| Extended Height | 28.00 in |
| Compressed Height | 9.92 in |
| Piston Height | 7.62 in |
| Max Working Diameter | 12.60 in |
The ContiTech Air Spring 64383/1R12-580/8448 achieves constant and low natural frequency between tare and full load. This ensures effective cargo protection, even on poor road surfaces, excellent comfort and health protection for the truck driver, and safe driving conditions. These air springs also offer the ability to lower or raise the truck's body height to match a ramp's elevation or to set up a compatible platform.
- Fuel economy and payload increase thanks to their lightweight design
- Best heat dissipation and flexibility in the market due to exclusively engineered rubber
- Offers first-rate cushioning, assembly fit, and burst pressure
- Features a factory-like fit for hassle-free assembly
- World-renowned OEM and development partner
- For 64383 / 9306248 applications
- 2-year/200,000 mile warranty
| Aurora Trailer Holdings, LLC | AS9370 |
| Automann | 65053, AB1DK23N9370 1DK23N9370, 1DK23N-9370, AB1DK23N-9370 |
| BBB Industries | 8448 |
| ContiTech | 64383 77305, AS PR9M21 9370, FS9370 |
| Dayton Parts | 1R12580 |
| Eiko Lighting | 70 |
| Firestone | W013589370, W01-358-9370 |
| Flagg Suspension Parts | 63886 |
| Gates | 9370 |
| Goodyear | 1R12-580 |
| HDValue | HDV9370 |
| Ridewell Corp. | 1003589370C |
| Truck Replacement Parts Inc. | 68947, AS93700 |
| Unknown | 1R12-440, TRI8448, V 1 DK 23 N9370, MAF9370B, V 1 DK 23 N-9370 |
| Watson & Chalin | AS0057, AS-0057, AS00571G, AS-0057-1G |
| Other | RL93700, EFS9370, AS77305, 91021P448, 1R12503, 1R12440, V1DK23N9370, TRAS8448, TR9370, ASPR9M219370, 39370KPP |
