ContiTech Air Spring 64288 ContiTech Air Spring 64288
ContiTech
- KTP #:
- 15800189
- MPN:
- 64287
- Cross Reference Number:
- 910-13.5 S 433 | W01-358-9270| 1R13-119| 8433
- KTP #:
- ${ currentVariant?.sku }
- Part Number:
- ${ currentVariant?.mpn }
- Cross Reference Number:
- ${ currentVariant?.crossReferenceNumber }
Price: $212.50
Sale price: ${currentVariant?.salePriceAsCurrency}
List price: ${currentVariant?.priceAsCurrency}
Price: ${currentVariant?.priceAsCurrency}
${notification.message}
${notification.message}
| VMRS | 016008001 |
| Air Spring Convolutions | Single |

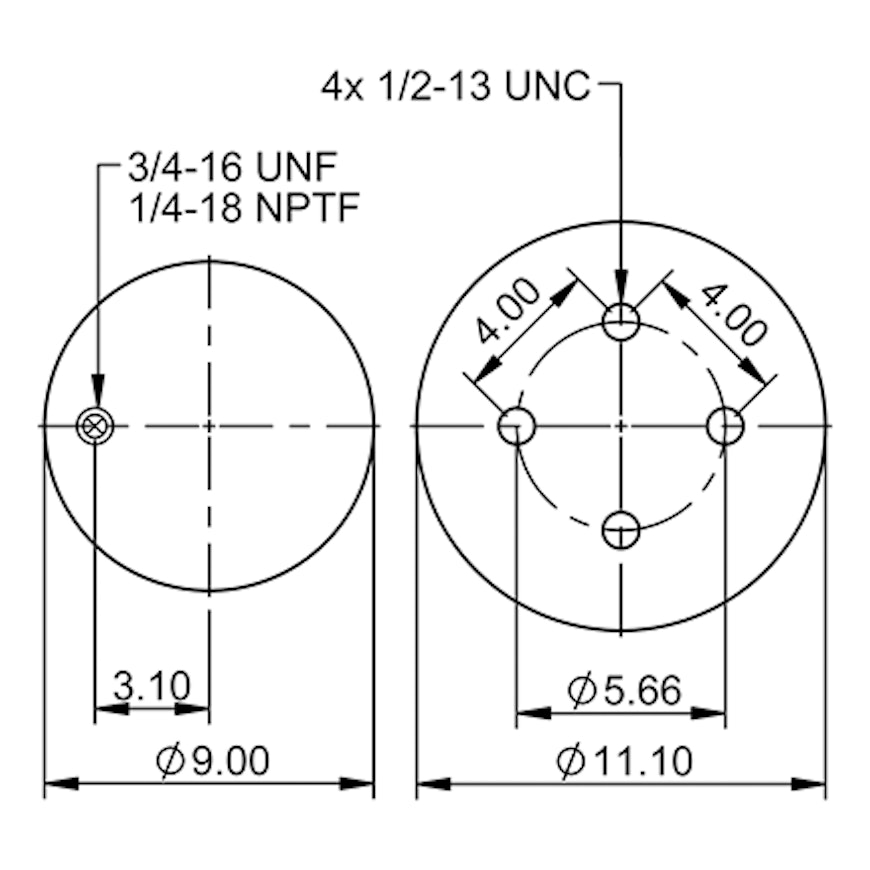

| Top Plate Diameter | 9.00 in |
| Top Mounting | Stud 3/4 in-16 UNF |
| Bottom Piston/Plate Diameter | 11.10 in |
| Bottom Mounting | Threaded Hole 1/2 in-13 UNC |
| Air Connection Configuration | Top - Single |

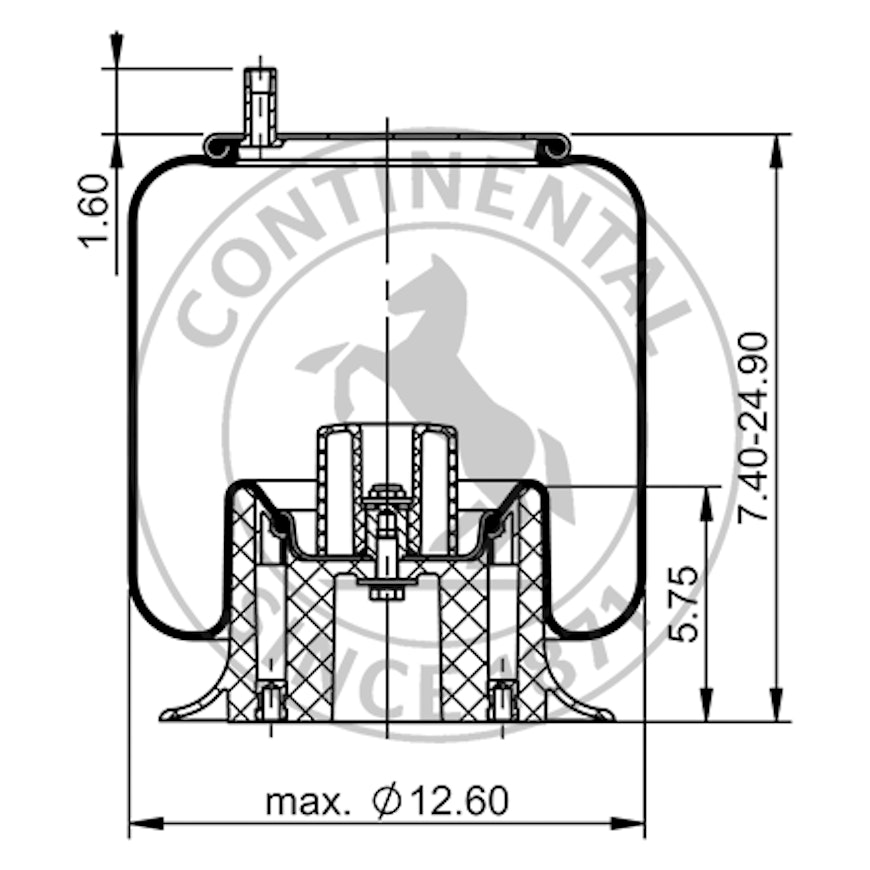

| Extended Height | 24.90 in |
| Compressed Height | 7.40 in |
| Piston Height | 5.75 in |
| Max Working Diameter | 12.60 in |
The ContiTech Rolling Lobe Air Spring 64288/1R12-375/8435 accomplishes constant and low natural frequency between tare and full load. This offers functional cargo protection, even on poor road surfaces, exceptional comfort and health protection for the truck driver, and safe driving conditions. Rolling lobe air springs incorporate a piston which allows the flexible member to roll along the piston’s surface. These air springs also offer the ability to lower or raise the truck's body height to match a ramp's elevation or to set up a compatible platform.
- Rolling lobe style
- Fuel economy and payload increase for your suspension thanks to their lightweight design
- Provides superior driving comfort and safety
- Best heat dissipation and flexibility in the market due to exclusively engineered rubber
- Offers first-rate cushioning, assembly fit, and burst pressure
- Features a factory-like fit for hassle-free assembly
- World-renowned OEM and development partner
- For 64288/9308998 applications
- 2-year/200,000 mile warranty
| Airtech Airsprings | 39265 K |
| Anchor | 9265 |
| Automann | AB1DK23L-9265, AB1DK23L9265, 1DK23L9265, 1DK23L-9265 |
| Brake & Wheel Parts | M3524 |
| Carlisle Motion Control | 8435 |
| Centennial | 1R12-1073 |
| Chalmers Suspension | SC2759 |
| Contitech | 64288, 65034, 77289, AS PR9M19 9265, FS9265, AS9265, CT64288 |
| Dayton Parts | S20413, 1R121073, 1R12375 |
| Firestone | W013589265 |
| Flagg Suspension Parts | 64079, AS8435 |
| Freightliner Trucks | CTH 64288 9265 |
| Goodyear | 1R12-375 |
| Hendrickson | S20124, S-20413, C-20413, S-20124 |
| Mack Trucks, Inc. | AS RC9M19 9265 |
| Meritor | FS9265AG |
| Truck Replacement Parts Inc. | 68938, AS92650 |
| Unknown | W01-358-9265, FSW01-358-9265, MAF9265B |
| Volvo Truck | 85101155 |
| Other | 8779265, 8799265, WA019265C, WA019265, V68435, TRAS8435, TR9265, TR8435, S9265, EIEFS9265, EFS9265, CTH642889265, C20413, ASRC9M199265, ASPR9M199265, 39265K |
