ContiTech Air Spring 64287 ContiTech Air Spring 64287
ContiTech
- KTP #:
- 15800190
- MPN:
- 67490
- Cross Reference Number:
- 910-10.5 P 883 | W01-358-9307
- KTP #:
- ${ currentVariant?.sku }
- Part Number:
- ${ currentVariant?.mpn }
- Cross Reference Number:
- ${ currentVariant?.crossReferenceNumber }
Price: $195.75
Sale price: ${currentVariant?.salePriceAsCurrency}
List price: ${currentVariant?.priceAsCurrency}
Price: ${currentVariant?.priceAsCurrency}
${notification.message}
${notification.message}
| VMRS | 016008001 |
| Air Spring Convolutions | Single |

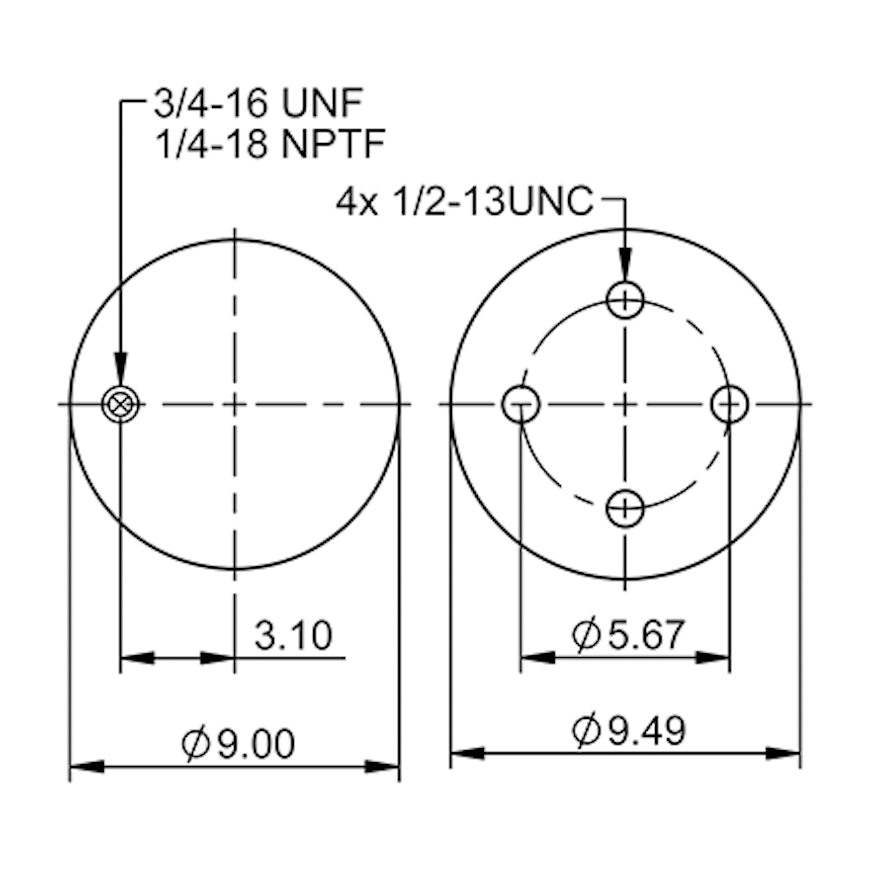

| Top Plate Diameter | 9.00 in |
| Top Mounting | Stud 3/4 in-16 UNF |
| Bottom Piston/Plate Diameter | 9.49 in |
| Bottom Mounting | Threaded Hole 1/2 in-13 UNC |
| Air Connection Configuration | Top - Single |
| Extended Height | 16.50 in |
| Compressed Height | 5.40 in |
| Piston Height | 3.74 in |
| Max Working Diameter | 12.60 in |
The ContiTech Rolling Lobe Air Spring 64287/1R13-119/8433 achieves constant and low natural frequency between tare and full load. This ensures productive cargo protection, even on poor road surfaces, excellent comfort and health preservation for the truck driver, and safe driving conditions. Rolling lobe air springs consist of a piston which allows the flexible member to roll along the piston’s surface. These air springs also offer the ability to lower or raise the truck's body height to match a ramp's elevation or to set up a compatible platform.
- Rolling lobe style
- Fuel economy and payload increase thanks to their lightweight design
- Best heat dissipation and flexibility for your suspension in the market due to exclusively engineered rubber
- Offers first-rate cushioning, assembly fit, and burst pressure
- Features a factory-like fit for hassle-free assembly
- World-renowned OEM and development partner
- For 94287/9309758 applications
- 2-year/200,000 mile warranty
| Airtech Airsprings | 39270 K, 39270 P |
| AP Exhaust | 9270 |
| Automann | 1DK23I-9270, 1DK23I9270, AB1DK23I9270, AB1DK23I-9270 |
| Brake & Wheel Parts | M3542 |
| ContiTech | 64287, 65033, 73599, AS PR9M13.5 9270, AS9270, FS9270, CT64287 |
| Dayco | 8433 |
| Dayton Parts | 1R13119 1R13259 |
| Euclid | FS9270AG |
| Firestone | W013589270, W01-358-9270 |
| Flagg Suspension Parts | 64077 |
| Freightliner Trucks | CTH 64287 9270 |
| Goodyear | 1R13-119 |
| HDValue | HDV9270 |
| Hendrickson | S-20010, S20010, S-25559 |
| Mack Trucks, Inc. | 73883, AS RC9M13.5 9270 |
| Ridewell Corp | 1003589270C |
| Truck Replacement Parts Inc. | 68877, AS92700 |
| Unknown | FSW01-358-9270, MAF9270B, 1R13-259 |
| Volvo Truck | 85101147 |
| Watson & Chalin | AS0084, AS-0084 |
| Other | 8779270, WA019270C, WA019270, V68433, TRAS8433, TR9270, TR8433, S9270, S25559, EIEFS9270, EFS9270, CTH642879270, C20010, ASRC9M1359270, ASPR9M1359270, 39270P, 39270K |
