ContiTech Air Spring 64274 ContiTech Air Spring 64274
ContiTech
- KTP #:
- 15800175
- MPN:
- 64464
- Cross Reference Number:
- 910-14 A 330 | W01-358-9070 | 1R12-370 | 8330
- KTP #:
- ${ currentVariant?.sku }
- Part Number:
- ${ currentVariant?.mpn }
- Cross Reference Number:
- ${ currentVariant?.crossReferenceNumber }
Price: $174.00
Sale price: ${currentVariant?.salePriceAsCurrency}
List price: ${currentVariant?.priceAsCurrency}
Price: ${currentVariant?.priceAsCurrency}
${notification.message}
${notification.message}
| VMRS | 016008001 |
| Air Spring Convolutions | Single |

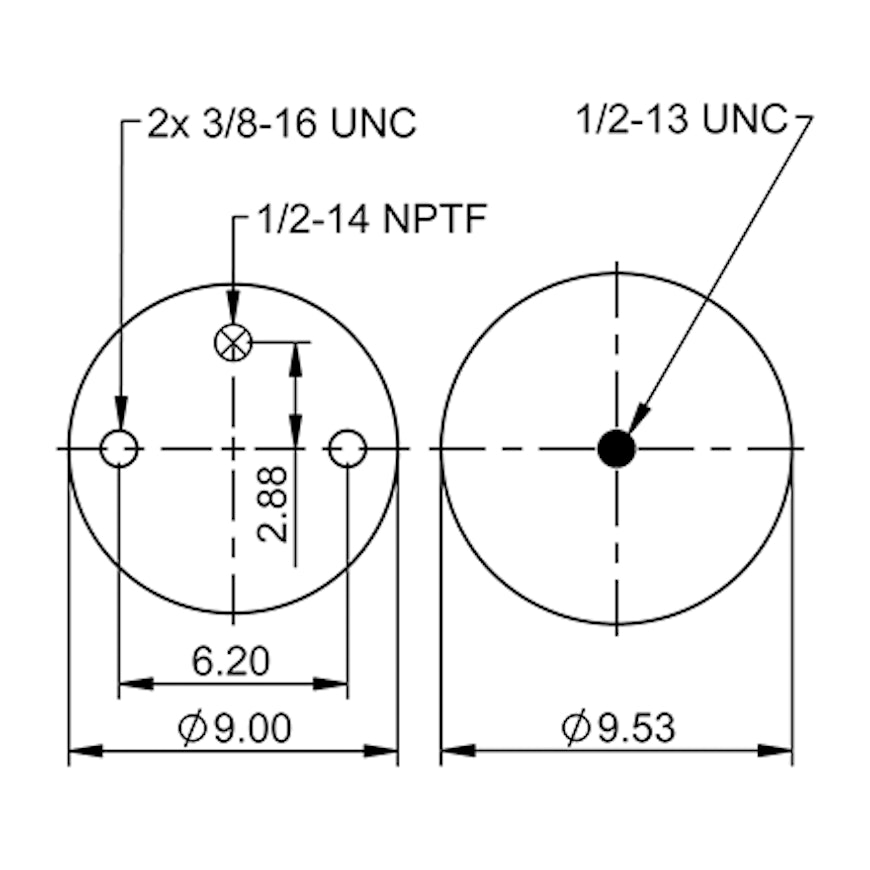

| Top Plate Diameter | 9.00 in |
| Top Mounting | Threaded Hole 3/8 in-16 UNC |
| Bottom Piston/Plate Diameter | 9.53 in |
| Bottom Mounting | Stud 1/2 in-13 UNC |
| Air Connection Configuration | Top - Single |

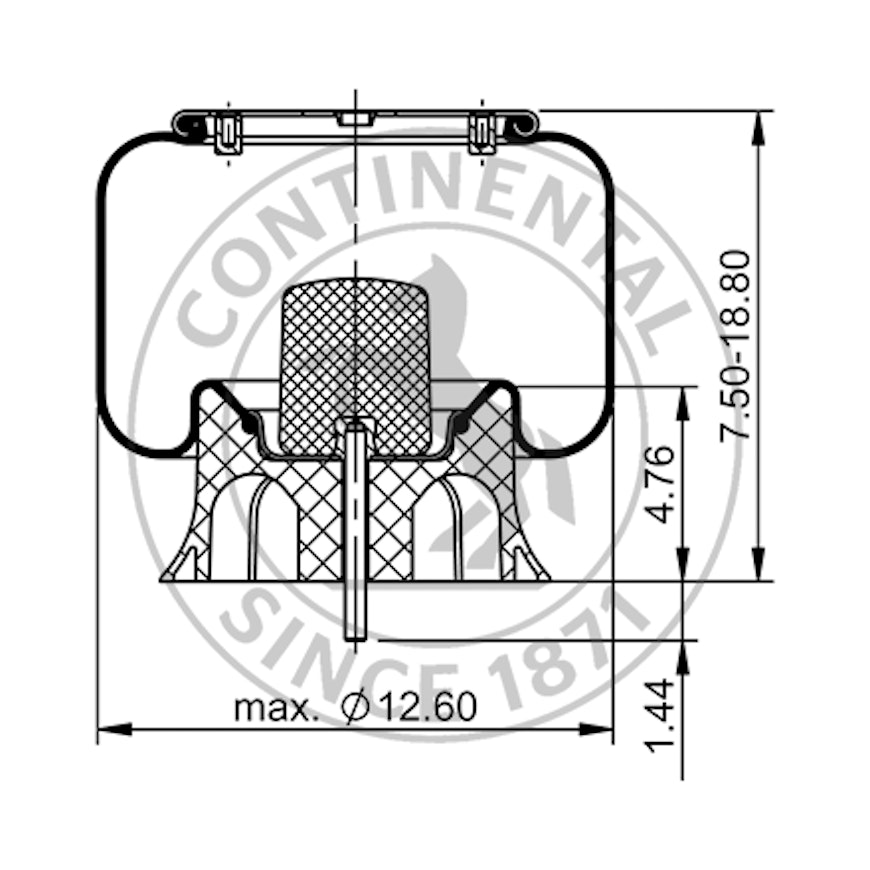

| Extended Height | 18.80 in |
| Compressed Height | 7.50 in |
| Piston Height | 4.76 in |
| Max Working Diameter | 12.60 in |
The ContiTech Rolling Lobe Air Spring 64274/1R12-069/1R12-676/8312 boasts the capability to lower or raise the truck's body height to match a ramp's elevation or to set up a suitable platform. Rolling lobe air springs incorporate a piston which allows the flexible member to roll along the piston’s surface. These air springs also achieve persistent and low natural frequency between tare and full load. This ensures effective cargo protection, even on poor road surfaces, excellent comfort and health protection for the truck driver, and safe driving conditions.
- Rolling lobe style
- Bellows are made of special elastomer with outstanding dynamic properties and long service life
- 100% OE quality delivers maximum service life and load capacity for your suspension
- Individual components are tuned together for a perfectly harmonized system, ensuring optimal suspension characteristics
- Springs have passed servo-hydraulic and durability tests for almost all load conditions
- Simple and precise fittings for faster installation and less downtime
- For 64274/9308128 applications
- 2-year/200,000 mile warranty
| AirTech Airsprings | 39069 K, 39069 P |
| Automann | 1DK23I9069, AB1DK23I-9069, AB1DK23I9069, FS9069, 1DK23I-9069 |
| Brake & Wheel Parts | M3512 |
| Buffalo | 65025 |
| Centennial | 1R12-1069 |
| Chalmers Suspension | SC2034 |
| ContiTech | 9069, 73569, AS8312, CT64274, AS PR9M14 9069 |
| Dayton Parts | 3529069, 1R12069, 352-9069, 1R12669, 4529069L, 1R121069 |
| Firestone | W013589069, W01-358-9069 |
| Fleetpride | 64274 |
| Four Seasons | 64028 |
| Goodyear | 1R12676 1R12-676 |
| HDValue | HDV9069 |
| Hendrickson | S-13031 |
| Holland Equipment, Ltd. | 57009069 |
| Kenworth | C816022, C81-6022 |
| Mack Trucks, Inc. | 73884, AS RC9M14 9069 |
| Meritor | FS9069AG |
| National | 8312 |
| Navistar | 554764C1 |
| Non-Branded | AS9069 |
| Peterbilt | 301649, 302038, 302456, 304759, 306746, 307112, 310042, 03-01649, 03-02038, 03-02456, 03-04759, 03-10042, 03-07112, 03-06746 |
| Ridewell Corp | 1003589069C |
| Supercede From | 1R12-669 |
| Taurus International, Inc. | AS5069069, AS504-9069, AS5049069, AS506-9069 |
| Truck Replacement Parts Inc. | 68885, AS90690 |
| Unknown | 1410108001, 1R12-069, MAF9069B |
| Volvo Truck | 85101145 |
| Watson & Chalin | AS0077, AS-0077 |
| Other | 2310042, 8779069, WA019069C, WA019069, FLTA1R12069, TRHTB8312, TRAS8312, TR9069, TR8312, TA8312, S9069, S23977, S13031, HTB8312, EIEFS9069, EIE1R12069, EFS9069, E1R12069, B8312, ASRC9M149069, ASPR9M149069, 39069P, 39069KPP, 39069K, 06746, 04759, 0310042, 0307112, 0306746, 0304759, 0302456, 0302038, 0301649 |
