- ContiTech Air Spring 64269
Image ${currentSlide} of ${totalSlides}
Image ${currentSlide} of ${totalSlides}
ContiTech Air Spring 64269 ContiTech Air Spring 64269
ContiTech
- KTP #:
- 15800177
- MPN:
- 64279
- Cross Reference Number:
- 910-19 P 315 | W01-358-9101 | 1R12-103 | 8315
- KTP #:
- ${ currentVariant?.sku }
- Part Number:
- ${ currentVariant?.mpn }
- Cross Reference Number:
- ${ currentVariant?.crossReferenceNumber }
Price: $195.00
Sale price: ${currentVariant?.salePriceAsCurrency}
List price: ${currentVariant?.priceAsCurrency}
Price: ${currentVariant?.priceAsCurrency}
${notification.message}
${notification.message}
| VMRS | 016008001 |
| Air Spring Convolutions | Single |

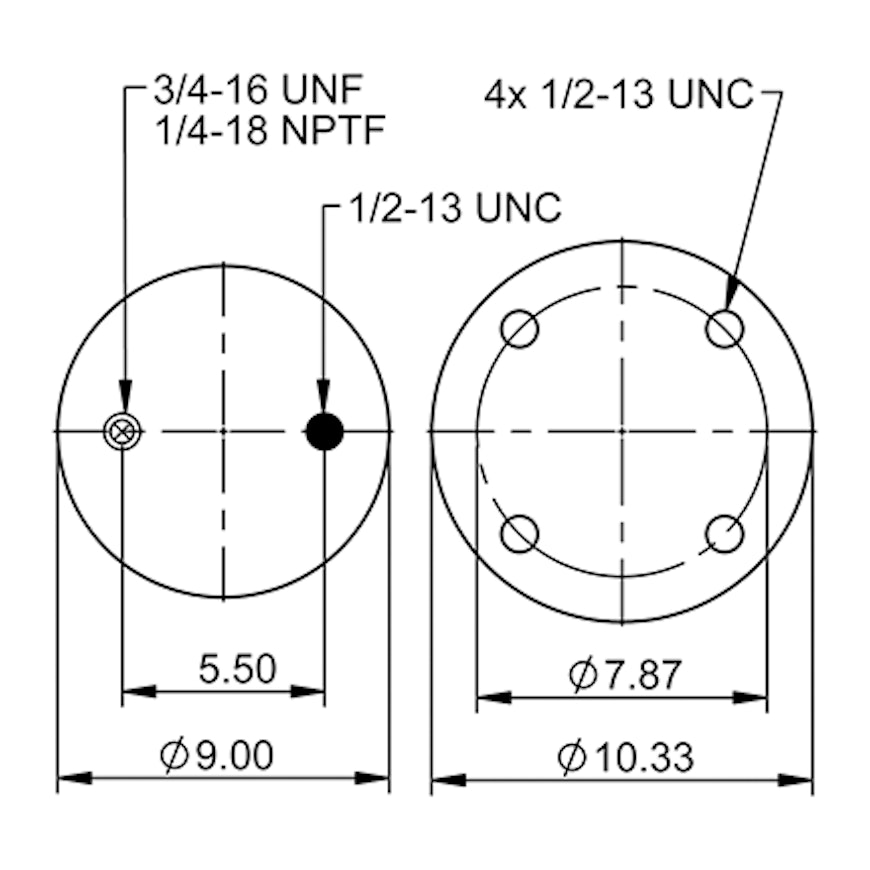

| Top Plate Diameter | 9.00 in |
| Top Mounting | Combination Stud 3/4 in-16 UNF, Stud 1/2 in-13 UNC |
| Bottom Piston/Plate Diameter | 10.27 in |
| Bottom Mounting | Threaded Hole 1/2 in-13 UNC |
| Air Connection Configuration | Top - Single |

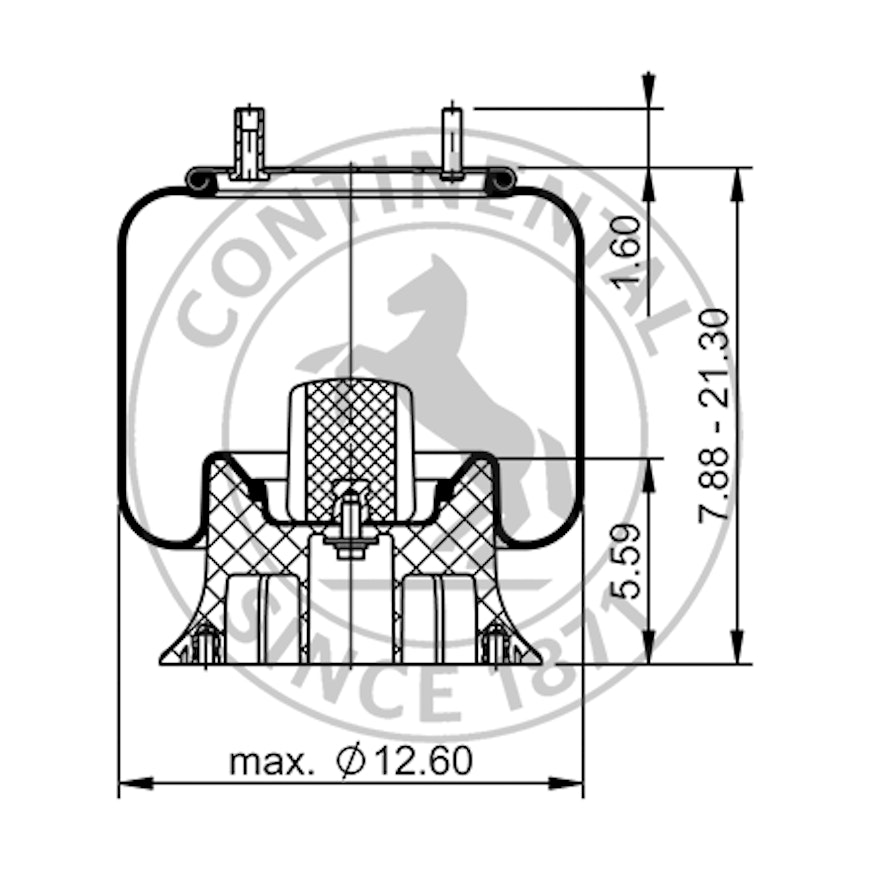

| Extended Height | 21.50 in |
| Compressed Height | 7.90 in |
| Piston Height | 5.59 in |
| Max Working Diameter | 12.60 in |
The Contitech Air Spring 64269/1R12-092/8310 offers the capability to lower or raise the truck's body height to match a ramp's elevation or to set up a suitable platform. These air springs also achieve persistent and low natural frequency between tare and full load. This ensures effective cargo protection, even on poor road surfaces, excellent comfort and health protection for the truck driver, and safe driving conditions.
- Fuel economy and payload increase thanks to their lightweight design
- Best heat dissipation and flexibility for your suspension in the market due to exclusively engineered rubber
- Offers first-rate cushioning, assembly fit, and burst pressure
- Features a factory-like fit for hassle-free assembly
- World-renowned OEM and development partner
- For 64269/9308133 applications
- 2-year/200,000 mile warranty
| AirTech Airsprings | 39082 KPP |
| AP Exhaust | 9082 |
| Arvin | 201869 |
| Automann | 1DK23K9082, AB1DK23K-9082, AB1DK23K9082, 1DK23K-9082 |
| Brake & Wheel Parts | M3513 |
| Centennial | 1R12-1070 |
| Chalmers Suspension | SC2035, SC2762 |
| Champion Spark Plug | 82 |
| ContiTech | 65020, AS9082, FS9082 AS PR9M16 9082 |
| Dayton Parts | 3529082 352-9082, 1R12092 1R12093, 1R12509, S2066, 1R121070 |
| Eveley | 101929, RA 19545, RA 1954-5 |
| Firestone | W013589082 |
| Flagg Suspension Parts | 63874, AS8310 |
| Gillig | 5317602001 |
| Goodyear | 1R12-092 (PLASTIC) |
| Granning Suspensions | 2727 |
| HDValue | HDV9082 |
| Hendrickson | 365147, S-11651, S-2066, S-13159, B-12514-007, S-4041 |
| Holland Equipment, Ltd. | 90044200, 90044647, 90557006, 90557027 90557033, 90557037, 90557054, 90557075 |
| Hutch Suspension Systems | H936002, H-936001, H936001, H-936002 |
| Mack Trucks, Inc. | 73885, 57QL310, AS RC9M16 9082 |
| Midwest Truck & Auto Parts Inc | WA019082C |
| Navistar | 517559C9 |
| NGK | 6418 |
| Power Steer | 8310 |
| Reyco Industries, Inc. | 12882-01 |
| Ridewell Corp | 1003589082C |
| Silent Drive | AS-9082 |
| Spectra Premium Industries, Inc. | 73682 |
| Spring Valley Manufacturing | AS-8310 |
| Supercede From | 1R12-092, W01-358-9082 |
| Taurus International, Inc. | AS5069082, AS506-9082 |
| Todco | CP5125, CP3281, CP5152 |
| Toyo Tire | TRL240393 |
| Truck Replacement Parts Inc. | 68891, AS90820 |
| Unknown | 64269, 551002, 1090217, V 1 DK 23 K-9082, V 1 DK 23 K9082, MAF9082B, CP-5152, CP-5125, CP-3281 |
| Volvo Truck | 3130491 |
| Watson & Chalin | AS0011, AS-0011 |
| Other | 1288201, 8779082, WA019082, FLTA1R12092, AR13151G, AR13151F, 91016P350, V68310, V1DK23K9082, TS8310, TRI8310, TRCLP8310, TRAS8310, TR9082, TR8310, TA8310, S9082, S4041, S13159, S11651, RA19545, P8310, I8310, EIE1R12092, EFS9082, E1R12092, CLP8310, B12514007, ASPR9M169082, 39082KPP, 1R12092PLASTIC, ASRC9M169082, GY1R12092, FG8310, EUEFS9082, EIEFS9082 |
