ContiTech Air Spring 64266 ContiTech Air Spring 64266
ContiTech
- KTP #:
- 15800218
- MPN:
- 68151
- Cross Reference Number:
- 910-13.5 P 874 | W01-358-9807| 8874
- KTP #:
- ${ currentVariant?.sku }
- Part Number:
- ${ currentVariant?.mpn }
- Cross Reference Number:
- ${ currentVariant?.crossReferenceNumber }
Price: $189.25
Sale price: ${currentVariant?.salePriceAsCurrency}
List price: ${currentVariant?.priceAsCurrency}
Price: ${currentVariant?.priceAsCurrency}
${notification.message}
${notification.message}
| VMRS | 016008001 |
| Air Spring Convolutions | Single |

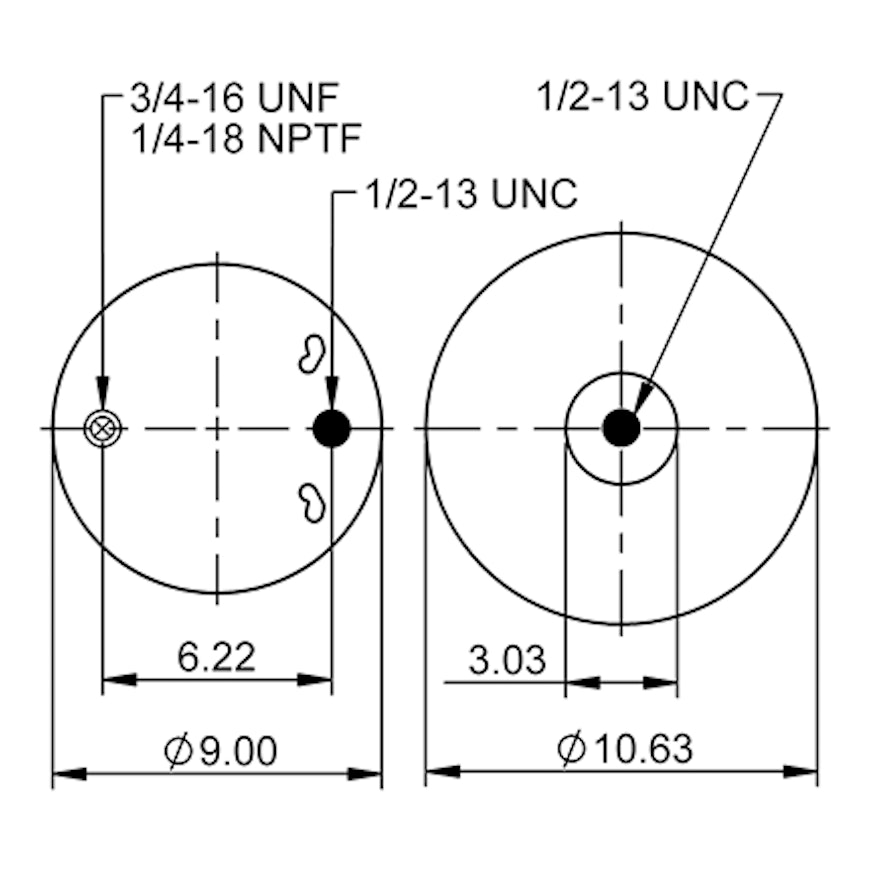

| Top Plate Diameter | 9.00 in |
| Top Mounting | Combination Stud 3/4 in-16 UNF, Stud 1/2 in-13 UNC |
| Bottom Piston/Plate Diameter | 10.63 in |
| Bottom Mounting | Stud 1/2 in-13 UNC |
| Air Connection Configuration | Top - Single |
| Extended Height | 23.00 in |
| Compressed Height | 8.60 in |
| Piston Height | 6.48 in |
| Max Working Diameter | 12.60 in |
The ContiTech Rolling Lobe Air Spring 64266/1R12-603/8382 offers the capability to lower or raise the truck's body height to match a ramp's elevation or to set up a suitable platform. Rolling lobe air springs incorporate a piston which allows the flexible member to roll along the piston’s surface. These air springs also achieve persistent and low natural frequency between tare and full load. This ensures effective cargo protection, even on poor road surfaces, excellent comfort and health protection for the truck driver, and safe driving conditions.
- Rolling lobe style
- Aluminum piston
- Fuel economy and payload increase thanks to their lightweight design for your suspension
- Best heat dissipation and flexibility in the market due to exclusively engineered rubber
- Offers first-rate cushioning, assembly fit, and burst pressure
- Features a factory-like fit for hassle-free assembly
- with Aluminum Base
- World-renowned OEM and development partner
- For Freightliner, Volvo, and Navistar applications
- 2-year/200,000 mile warranty
| Airtech Airsprings | 39781 KALU |
| Automann | 1DF239781, AB1DF239781, FS9781, 1DF23-9781 |
| Centennial | 1R12-1082 |
| Chalmers Suspension | SC2750 |
| ContiTech | 9781, 64266 65017, AS9781, CT64266, FS9780, AS PR9MR16-9781, AS PR9MR169781 |
| Dayton Parts | 1R121082 |
| Firestone | W013589781 W01-358-9781, W01-358-9781 ALU, W013589781 ALU, W01-358-9781 ALUMINU |
| Flagg Suspensions Parts | 8382, 63952 |
| Four Seasons | 73389 |
| Freightliner Trucks | 1613810000, 1613840000, 1614004000, 1614004001, 1615595000, 1616773000, 16-13810-000, CTH 64266 8527, A16-14004-000, A1614004000, 681-320-0017 ALUMINU, 16-16773-000 STEEL, 16-15595-000, 16-14004-001, 16-14004-000, 16-13810-000 PLASTIC, 681-320-0017 ALU, 6813200017 ALU, 16-13840-000 |
| Goodyear | 1R12-603 ALUMINUM, 1R12-603 ALU, 1R12603 ALU, 1R12603 |
| Mack Trucks, inc. | 73886, AS RC9MR16 9781 |
| Navistar | 1R121064, 1R12-1064 |
| Supercede From | 1R12-603 |
| Truck Replacement Parts Inc. | 68955, AS9780A |
| Unknown | 1619466000, AS-9781, FI W01 377 8536, FI W013778536, FIRW01-377-8536, FIW013778536, W01 377 8536, W01-377-8529, W013778536, W01-377-8536, W02-377-8536, MAF9781B |
| Volvo Truck | 85101151 |
| Other | 8779781, WA019781C, WA019781, W013589781ALUMINU, W013588529, V68382, TRAS8382, TR9781, TR8382, S9780, R12186, EIEFS9780, EIE1R12186, EFS9780, E1R12186, CTH642668527, ASRC9MR169781, ASPR9MR169781, 6813200017ALUMINU, 39781KALU, 1R12603ALUMINUM, 1616773000STEEL, 1613810000PLASTIC |
