ContiTech Air Spring 68160 ContiTech Air Spring 68160
ContiTech
- KTP #:
- 15800113
- MPN:
- 68160
- Cross Reference Number:
- FD110-17A 804 | W01-358-7659
- KTP #:
- ${ currentVariant?.sku }
- Part Number:
- ${ currentVariant?.mpn }
- Cross Reference Number:
- ${ currentVariant?.crossReferenceNumber }
Price: $145.50
Sale price: ${currentVariant?.salePriceAsCurrency}
List price: ${currentVariant?.priceAsCurrency}
Price: ${currentVariant?.priceAsCurrency}
${notification.message}
${notification.message}
| VMRS | 016008001 |
| Air Spring Convolutions | Double |

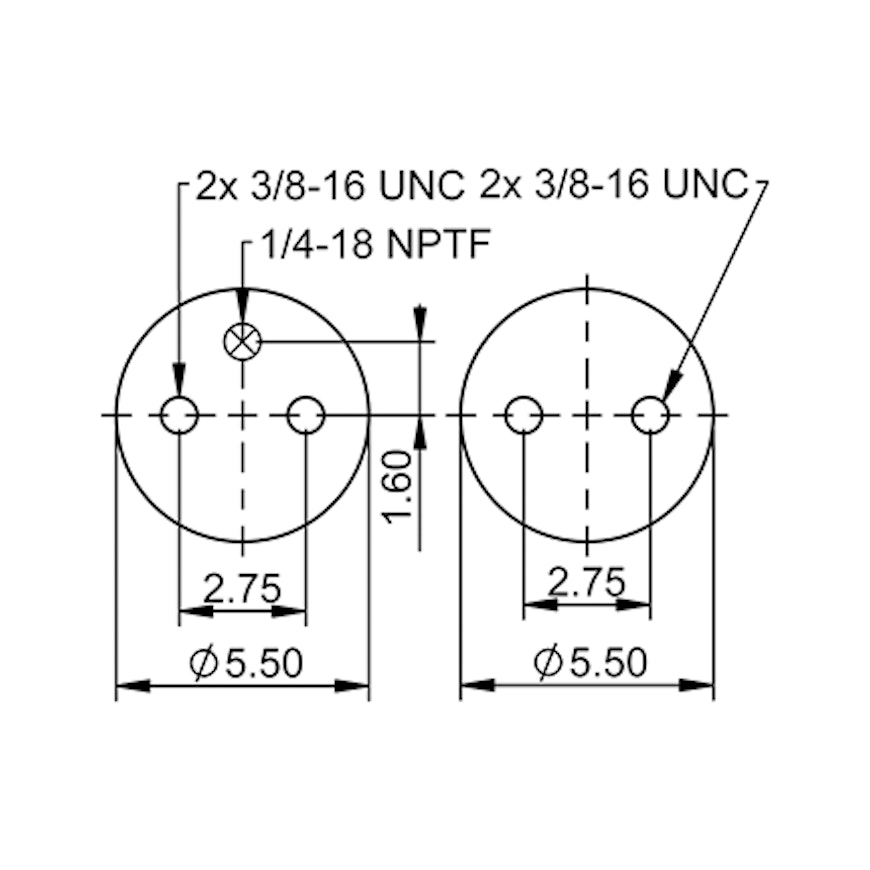

| Top Plate Diameter | 5.50 in |
| Top Mounting | Threaded Hole 3/8 in-16 UNC |
| Bottom Piston/Plate Diameter | 5.50 in |

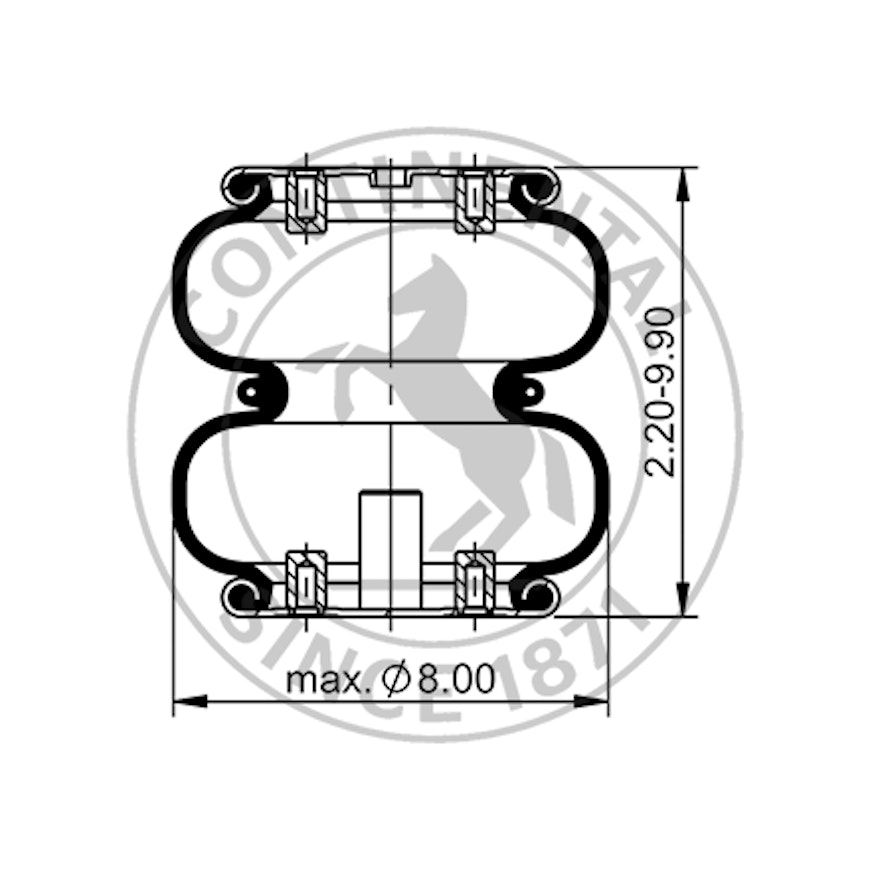

| Extended Height | 9.90 in |
| Compressed Height | 2.20 in |
| Max Working Diameter | 8.00 in |
The ContiTech Double Convoluted Air Spring 68160 ensures your vehicle is prepared for anything the road may bring with the accomplishment of diligent and low natural frequency between tare and full load. This ensures effective cargo protection, even on poor road surfaces, excellent comfort and health protection for the truck driver, and safe driving conditions. These air springs also offer the capability to lower or raise the truck's body height to match a ramp's elevation or to set up a suitable platform.
- Springs have passed servo-hydraulic and durability tests for almost all load conditions
- Fuel economy and payload increase thanks to their lightweight design
- Best heat dissipation and flexibility in the market due to exclusively engineered rubber
- Offers first-rate cushioning, assembly fit, and burst pressure
- Features a factory-like fit for hassle-free assembly
- World-renowned OEM and development partner
- For 68160 applications
- 2-year/200,000 mile warranty
| Automann | 2B07RAC804, 2B07RA804C, 2B07RA-C804 |
| ContiTech | 68160, 005079 |
| CRC | 5079 |
| Dayco | 72671 |
| Firestone | W013587659 |
| Flagg Suspension Parts | 73315 |
| Hendrickson | R005079 |
| Monroe Shocks | 73075 |
| TRI | 4804 |
| Truck Replacement Parts Inc. | AS08044 |
| Other | YS4Z13550BA, DP005079 |
