ContiTech Air Spring 65831 ContiTech Air Spring 65831

ContiTech

KTP #:
15800117
MPN:
64590
Cross Reference Number:
FD530-30 451 | W01-358-6801 | 2B14-365 | 4451
KTP #:
${ currentVariant?.sku }
Part Number:
${ currentVariant?.mpn }
Cross Reference Number:
${ currentVariant?.crossReferenceNumber }

Price: $265.00

Sale price: ${currentVariant?.salePriceAsCurrency}

List price: ${currentVariant?.priceAsCurrency}

Price: ${currentVariant?.priceAsCurrency}

${notification.message}

VMRS 016008001
Air Spring Convolutions Single

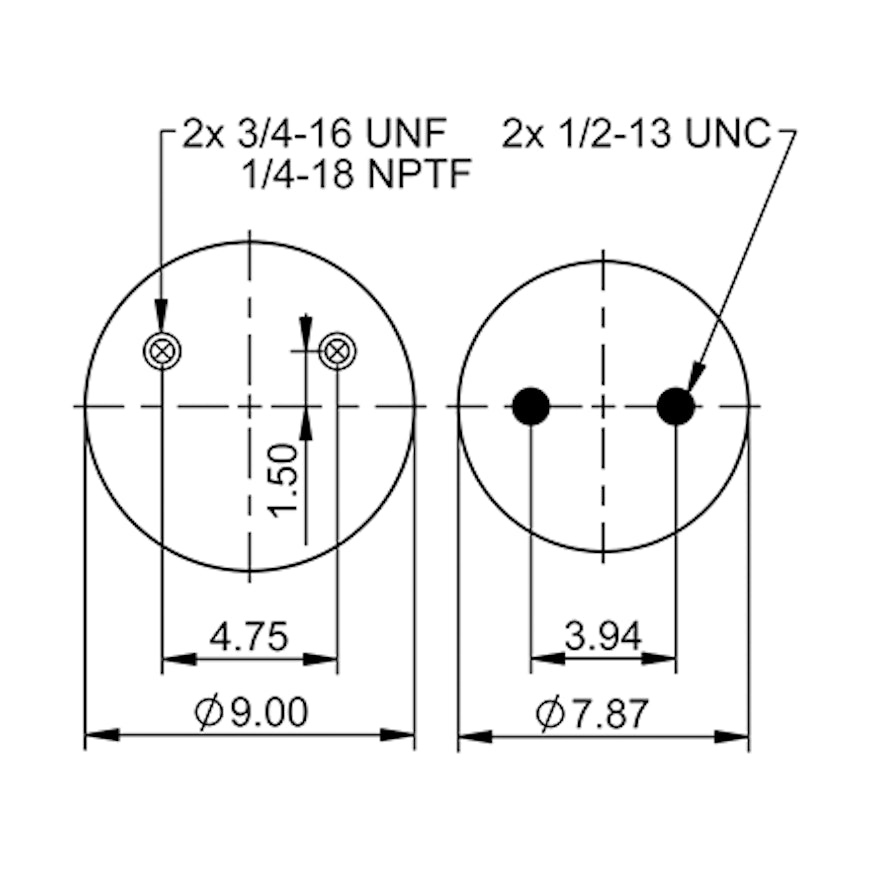

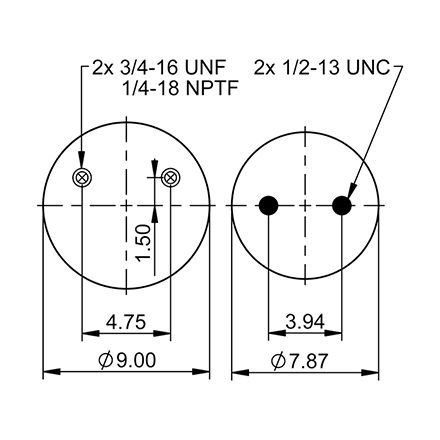

Top Plate Diameter 9.00 in
Top Mounting Threaded Hole 3/4 in-16 UNF
Bottom Piston/Plate Diameter 7.87 in
Bottom Mounting Stud 1/2 in-13 UNC
Air Connection Configuration Top - Single

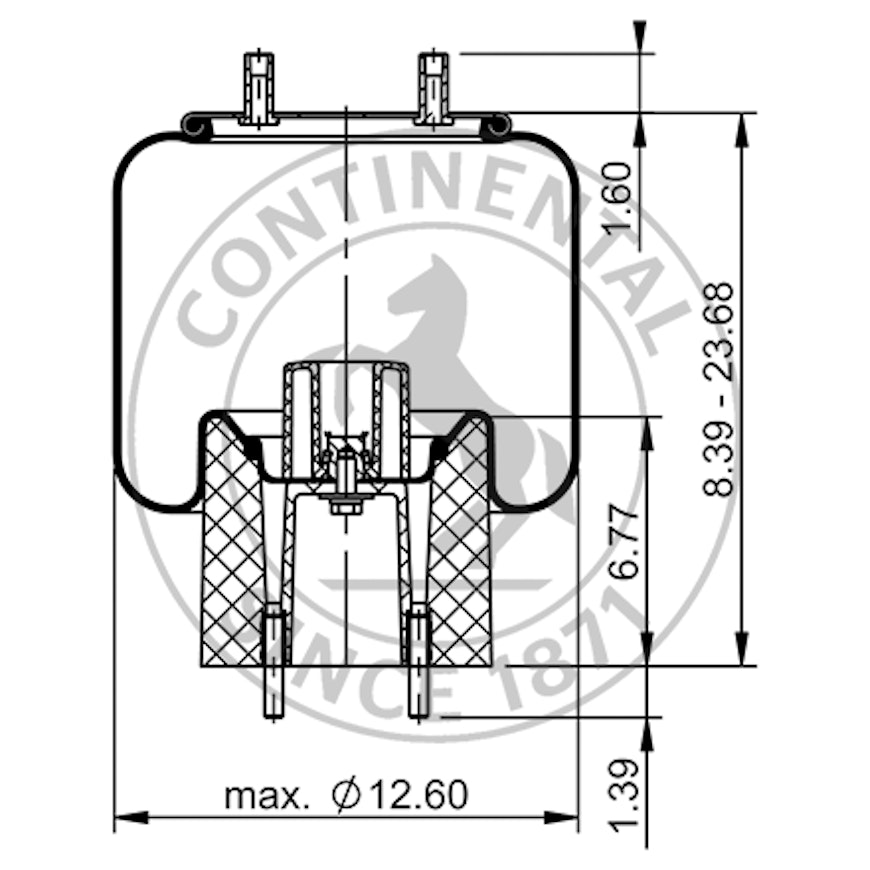

Extended Height 24.20 in
Compressed Height 8.40 in
Piston Height 6.77 in
Max Working Diameter 12.60 in

The ContiTech Air Spring 75184/782 N P04 boasts the capability to lower or raise the truck's body height to match a ramp's elevation or to set up a suitable platform. These air springs also achieve persistent and low natural frequency between tare and full load. This ensures effective cargo protection, even on poor road surfaces, excellent comfort and health protection for the truck driver, and safe driving conditions.

  • Minimizes cost of downtime
  • World-renowned OEM and development partner
  • Provides superior driving comfort and safety
  • Stands out in the market with maximum service life and accurately defined load-carrying capability
  • Offers first-rate cushioning, assembly fit, and burst pressure
  • For 75184 applications
Arvin 21227742 FS25
Automann AB1DK23P6262, 1DK23P-6262, 1DK23P6262, AB1DK23P-6262
ContiTech 75184, AS6262
Firestone W01-358-6262, W013586262
Flagg Suspension Parts 65830
Monroe Shocks 72679
PAI 8831
Truck Replacement Parts Inc. 65832, AS62620
Other 6262, 21227742, 21227742FS25
