- ContiTech Air Spring 64589
Image ${currentSlide} of ${totalSlides}
Image ${currentSlide} of ${totalSlides}
ContiTech Air Spring 64589 ContiTech Air Spring 64589
ContiTech
- KTP #:
- 15800119
- MPN:
- 64553
- Cross Reference Number:
- FD200-25 453 | W01-358-6927 | 2B9-218 | 4453
- KTP #:
- ${ currentVariant?.sku }
- Part Number:
- ${ currentVariant?.mpn }
- Cross Reference Number:
- ${ currentVariant?.crossReferenceNumber }
Price: $393.25
Sale price: ${currentVariant?.salePriceAsCurrency}
List price: ${currentVariant?.priceAsCurrency}
Price: ${currentVariant?.priceAsCurrency}
${notification.message}
${notification.message}
| VMRS | 016008001 |
| Air Spring Convolutions | Double |

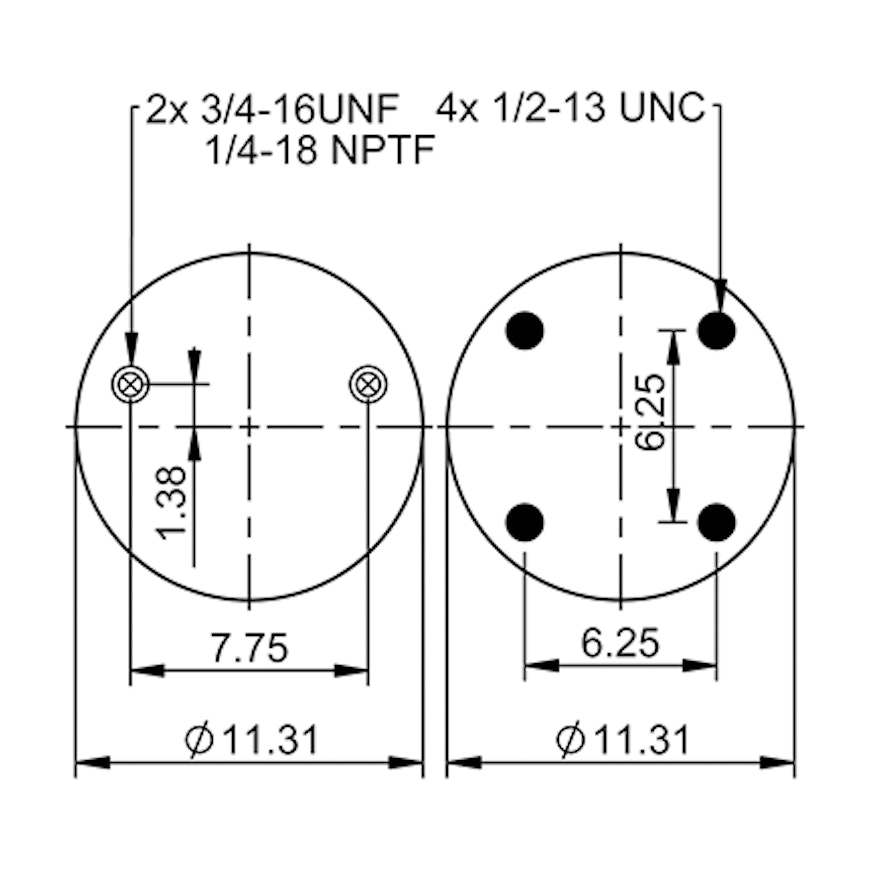

| Top Plate Diameter | 11.31 in |
| Top Mounting | Threaded Hole 3/4 in-16 UNF |
| Bottom Piston/Plate Diameter | 11.31 in |
| Bottom Mounting | Stud 1/2 in-13 UNC |
| Air Connection Configuration | Top - Single |

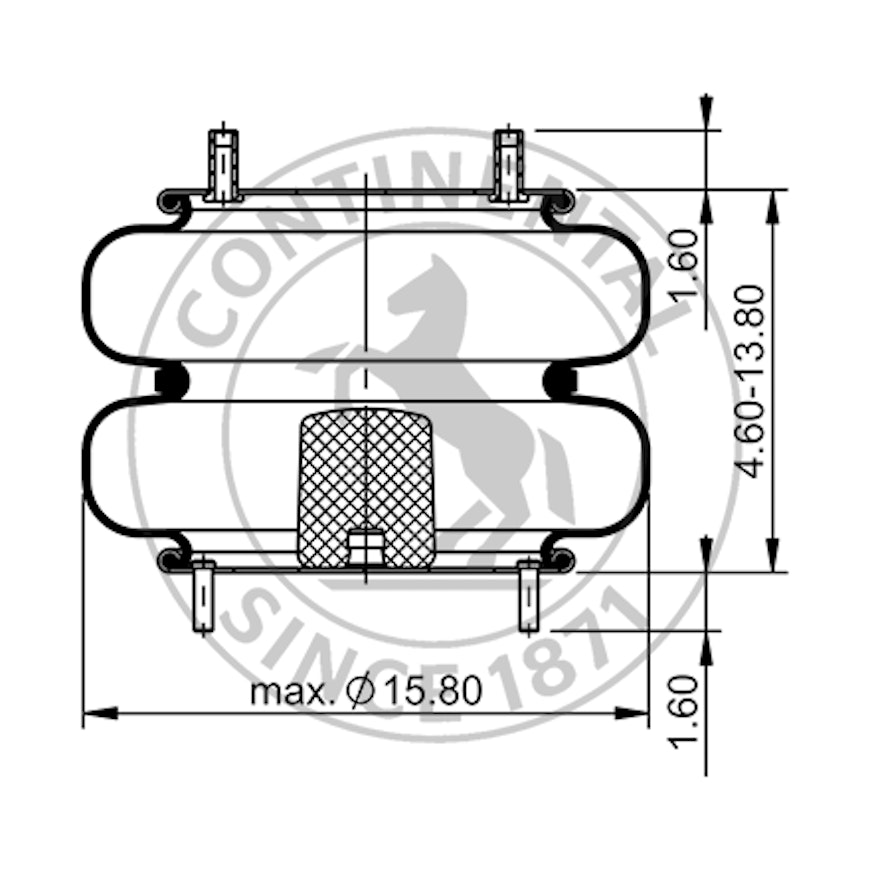

| Extended Height | 13.80 in |
| Compressed Height | 4.60 in |
| Max Working Diameter | 15.80 in |
The ContiTech Double Convoluted Air Spring is the perfect suspension part for your trucks. This durable air spring is designed to isolate vibrations during road fluctuations, providing enhanced driver comfort.
- Provides superior driving comfort and safety
- Maintains cabin height and stability while driving
- Designed to offer suspension while driving and superior dampening to improve ride comfortability
- For trucks and buses
- Offers first-rate cushioning, assembly fit, and burst pressure
- For 64589/2B14-366/4449 applications
| Automann | 73683, SP2B34RB-6803, SP2B34RB6803 |
| Chalmers Suspension | SC2129 |
| ContiTech | AS6803 |
| Dayton Parts | 3546803, 2B14366, S6412, 354-6803 |
| Firestone | W013586803 |
| Four Seasons | 66830 |
| Grote | 64021 |
| Hendrickson | S-6412 |
| Holland Equipment, Ltd. | 57006803 |
| Triangle Springs | 4449 |
| Truck Replacement Parts Inc. | AS68030 |
| Unknown | 64589, W01-358-6803, 2B14-366 |
| Other | 6803, FSW013586803 |
