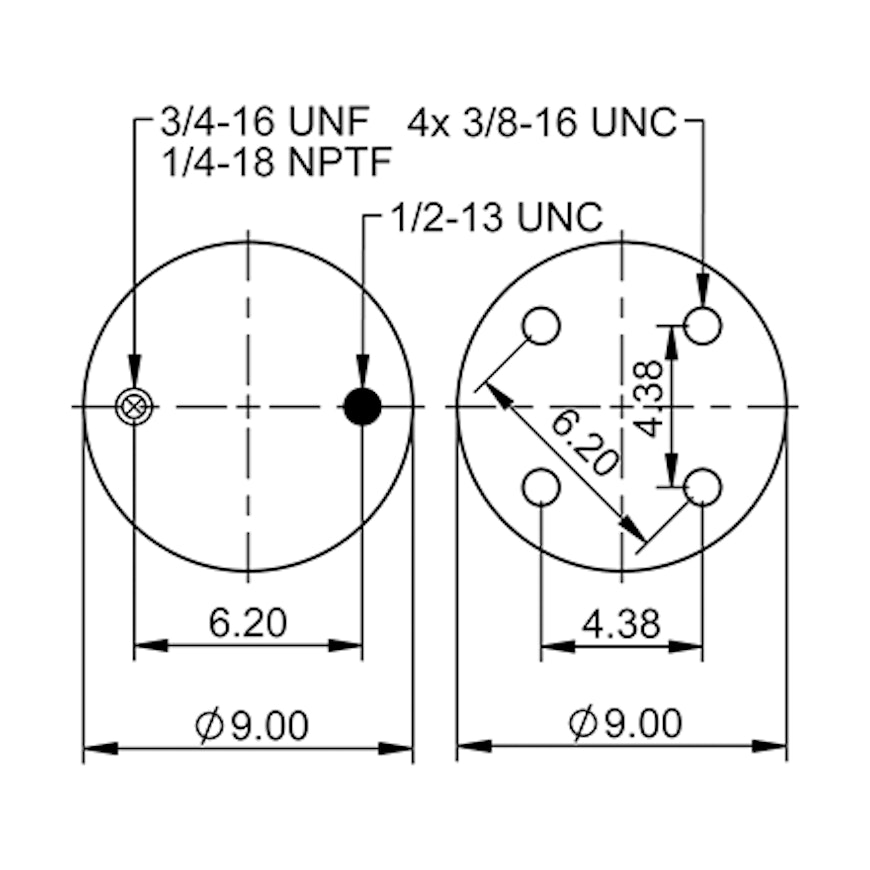

  • Top Down blueprint of Contitech Air Spring
Image ${currentSlide} of ${totalSlides}
  • Side blueprint of Contitech Air Spring
  • Top Down blueprint of Contitech Air Spring
Image ${currentSlide} of ${totalSlides}

ContiTech Air Spring 64571 ContiTech Air Spring 64571

ContiTech

KTP #:
15800156
MPN:
66522
Cross Reference Number:
FT330-29 554 | W01-358-8038 | 4554
KTP #:
${ currentVariant?.sku }
Part Number:
${ currentVariant?.mpn }
Cross Reference Number:
${ currentVariant?.crossReferenceNumber }

Price: $246.25

Sale price: ${currentVariant?.salePriceAsCurrency}

List price: ${currentVariant?.priceAsCurrency}

Price: ${currentVariant?.priceAsCurrency}

${notification.message}

VMRS 016008001
Air Spring Convolutions Triple
Top Plate Diameter 9.00 in
Top Mounting Combination Stud 3/4 in-16 UNF, Stud 1/2 in-13 UNC
Bottom Piston/Plate Diameter 9.00 in
Bottom Mounting Threaded Hole 3/8 in-16 UNC
Air Connection Configuration Top - Single
Extended Height 18.90 in
Compressed Height 4.60 in
Piston Height 0.00 in
Max Working Diameter 12.80 in

The ContiTech Air Spring 64571/3B12-312/4525 achieves constant and low natural frequency between tare and full load. This ensures effective cargo protection, even on poor road surfaces, excellent comfort and health protection for the truck driver, and safe driving conditions. These air springs also offer the ability to lower or raise the truck's body height to match a ramp's elevation or to set up a compatible platform.

  • Fuel economy and payload increase thanks to their lightweight design
  • Best heat dissipation and flexibility in the market due to exclusively engineered rubber
  • Offers first-rate cushioning, assembly fit, and burst pressure
  • Features a factory-like fit for hassle-free assembly
  • World-renowned OEM and development partner
  • For 64571 applications
  • 2-year/200,000 mile warranty
American Forge 8033
Automann 65578, ABSP3B22R-8033, ABSP3B22R8033, SP3B22R8033, SP3B22R-8033
Chalmers Suspension SC2784
ContiTech 64571 AS8033, CT64571
Dayton Parts 4548033, B14487, 3B12312
Firestone W013588033, FS8033, W01-358-8033
Flagg Suspension Parts 64093, AS4525
Goodyear 3B12-312
HDValue HDV8033
Hendrickson 003316 METRIC, RB14487, B-14487
Tri 4525
Truck Replacement Parts Inc. 69023, AS80330
Unknown GDY3B12-312, 8633-3B12312, 8446-RB14487, 27693B12-312, MAF8033B
Watson & Chalin AS-0168G, AS0168G
Other W115076, 003316METRIC
