ContiTech Air Spring 64554

ContiTech

KTP #:
11030007
MPN:
64554
Cross Reference Number:
FD200-25 454 | W01-358-6944 | 2B9-266 | 4454
KTP #:
${ currentVariant?.sku }
Part Number:
${ currentVariant?.mpn }
Cross Reference Number:
${ currentVariant?.crossReferenceNumber }

Price: $211.75

Sale price: ${currentVariant?.salePriceAsCurrency}

List price: ${currentVariant?.priceAsCurrency}

Price: ${currentVariant?.priceAsCurrency}

  • Ships via UPS In stock items ship within 48 hours

${notification.message}

VMRS 016008001
Air Spring Convolutions Double

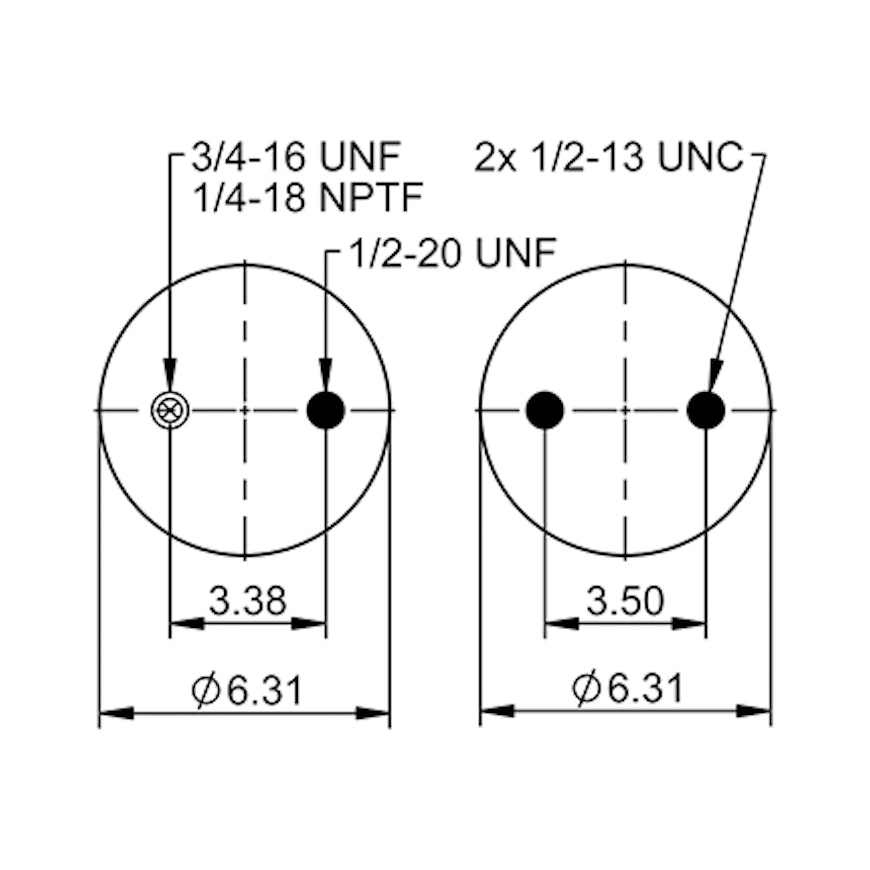

Top Plate Diameter 6.31 in
Top Mounting Combination Stud 3/4 in-16 UNF, Stud 1/2 in - 20 UNF
Bottom Piston/Plate Diameter 6.31 in
Bottom Mounting Stud 1/2 in-13 UNC
Air Connection Configuration Top - Single

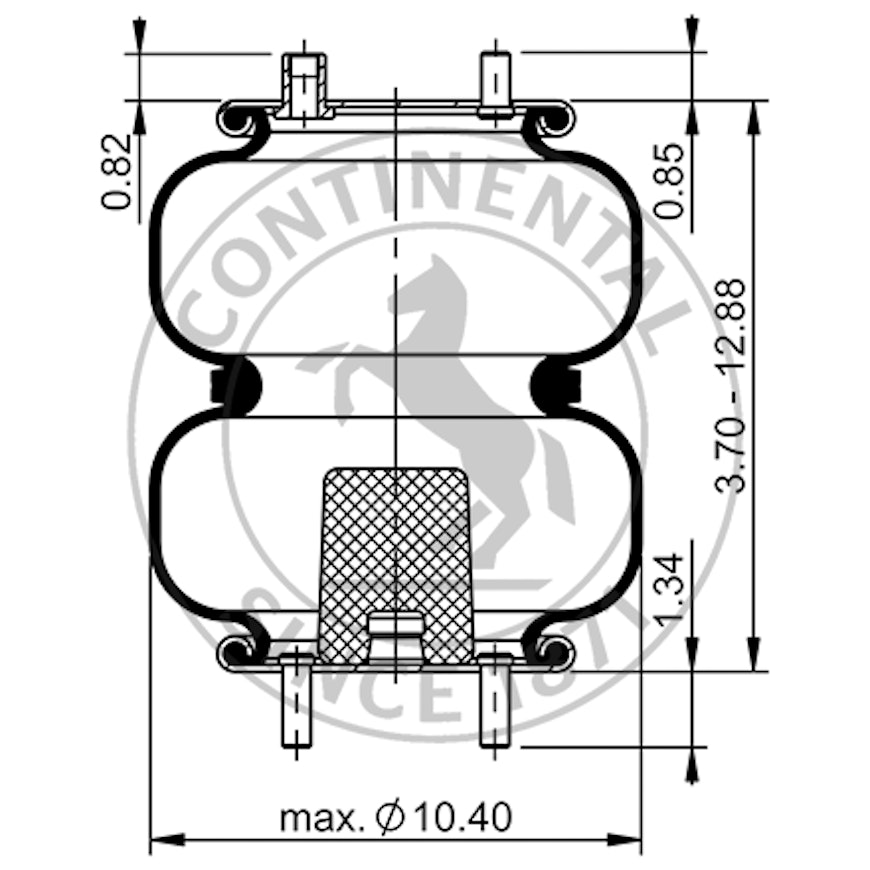

Extended Height 13.50 in
Compressed Height 3.70 in
Max Working Diameter 10.40 in

The ContiTech Air Spring 64554/2B9-266 & 252/4454 keeps heavy duty truck bodies at a fixed distance from the road. This heavy duty air spring guarantees security and protection for any type of load. These air springs also offer the ability to lower or raise the truck's body height to match a ramp's elevation or to set up a compatible platform.

  • Minimizes cost of downtime
  • World-renowned OEM and development partner
  • Provides superior driving comfort and safety
  • Stands out in the market with maximum service life and accurately defined load-carrying capability
  • Offers first-rate cushioning, assembly fit, and burst pressure
  • For 64554 applications
Automann SP2B12RA-6944
Contitech FD 200-25 454
Firestone W01-358-6944, 20-2
FleetPride AS6944
Goodyear 2B9-252, 2B9-266, 578923206, 578923208
Histeer 10307
Granning 7639, 6390
Loadguard SC2124
Meritor 200118
Suspensions, Inc. 200118
Taurus 6332
Triangle AS-4454
TRP AS69440
Watson & Chalin AS-01150G
