ContiTech Air Spring 64509 ContiTech Air Spring 64509
ContiTech
- KTP #:
- 11030006
- MPN:
- 64509
- Cross Reference Number:
- FD200-19 310 | W01-358-6902 | 2B9-239 | 4310
- KTP #:
- ${ currentVariant?.sku }
- Part Number:
- ${ currentVariant?.mpn }
- Cross Reference Number:
- ${ currentVariant?.crossReferenceNumber }
Price: $174.25
Sale price: ${currentVariant?.salePriceAsCurrency}
List price: ${currentVariant?.priceAsCurrency}
Price: ${currentVariant?.priceAsCurrency}
${notification.message}
${notification.message}

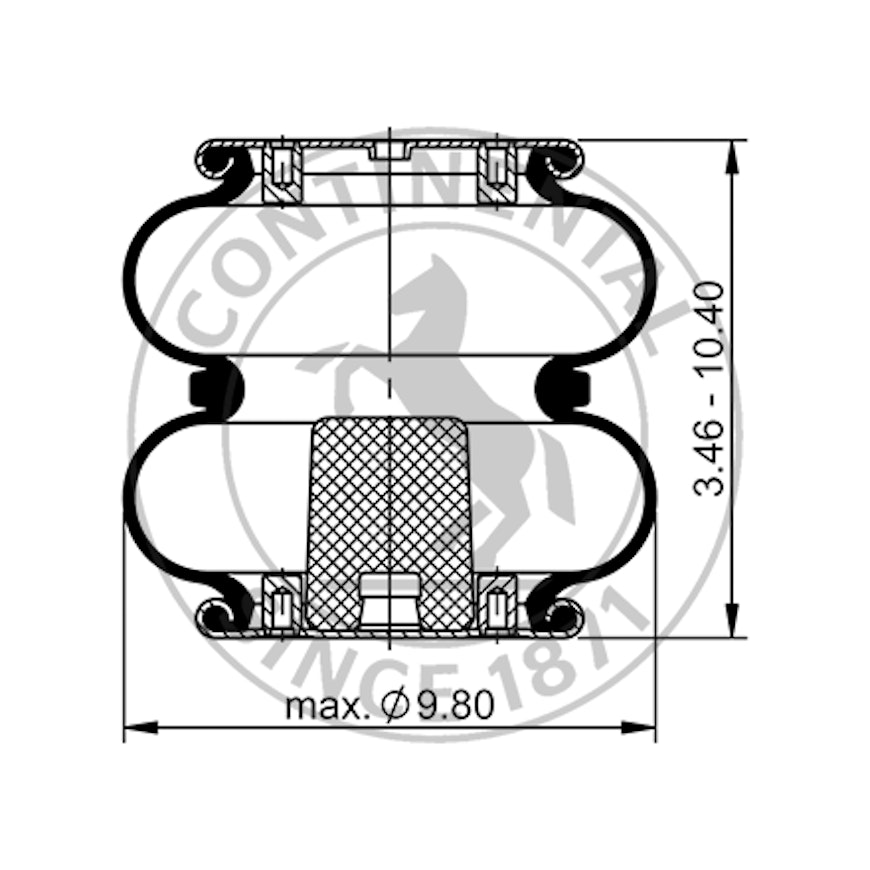

| VMRS | 016008001 |
| Air Spring Convolutions | Double |

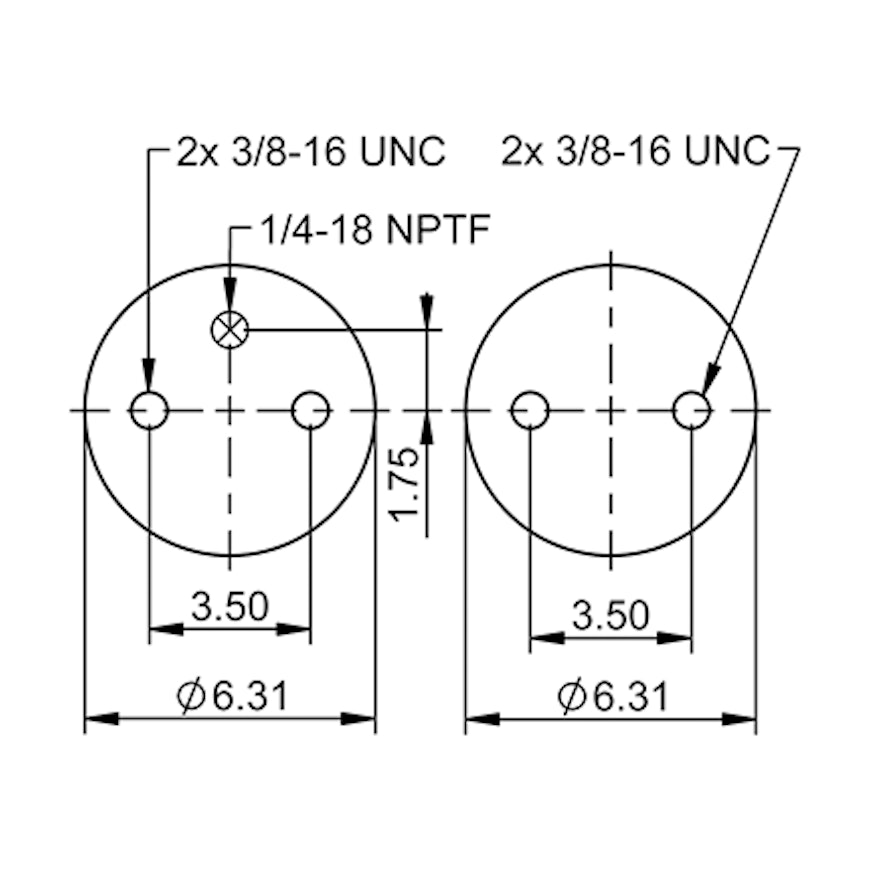

| Top Plate Diameter | 6.31 in |
| Top Mounting | Threaded Hole 3/8 in-16 UNC |
| Bottom Piston/Plate Diameter | 6.31 in |
| Bottom Mounting | Threaded Hole 3/8 in-16 UNC |
| Air Connection Configuration | Top - Single |
| Extended Height | 10.80 in |
| Compressed Height | 3.70 in |
| Max Working Diameter | 9.80 in |
The ContiTech Air Spring 64509/2B9-239/4310 achieves persistent and low natural frequency between tare and full load. This ensures effective cargo protection, even on poor road surfaces, excellent comfort and health protection for the truck driver, and safe driving conditions. These air springs also offer the capability to lower or raise the truck's body height to match a ramp's elevation or to set up a suitable platform.
- Minimizes cost of downtime
- World-renowned OEM and development partner
- Provides superior driving comfort and safety
- Stands out in the market with maximum service life and accurately defined load-carrying capability
- Offers first-rate cushioning, assembly fit, and burst pressure
- For 64509 applications
| Airsource | 6902, 6935 |
| Arvin | 200042 |
| Automann | 65068, SP2B12R-6902, ABSP2B12R6902 FS6902, SP2B12R6902, ABSP2B12R-6902 |
| Brake & Wheel Parts | M3500 |
| Chalmers Suspension | SC2010 |
| ContiTech | 64509 AS6902 |
| Coronet | 4848 |
| Dayton Parts | 3546902 354-6902, 2B9239 |
| Firestone | W013586902 W01-358-6902 |
| Flagg Suspension Parts | 63962 |
| HDValue | HDV6902 |
| Hendrickson | S-2630 |
| Holland Equipment, Ltd. | 57006902 |
| Mack Trucks, Inc. | 74108, RC62C19 6902 |
| Meritor | FS6935 |
| Navistar | 554784C1 |
| Ridewell Corp. | 1003586902C |
| Sunex Tools | 4310 |
| Supercede From | 2B9-239 |
| Suspensions Inc. | 2000-42 |
| Truck Replacement Parts Inc. | 68971, AS69020 |
| Unknown | 1027505, MAF6902B |
| Watson & Chalin | AS0002, AS-0002 |
| Other | 720187, 8776902, 350002301, 350007001, 481023201, 637200460, AS5803, 8283464000, 8283080000, 80427440020, 4710055310, 2530121546476, W113027, W013589602, TRAS4310, TR4310, S6935, S6902, S2630, RC62C196902, EIEFS6935, EIEFS6902, EIE2B09201, EFS6935, EFS6902, E2B09201, 566ER6902 |
