ContiTech Air Spring 64494
ContiTech
- KTP #:
- 15800130
- MPN:
- 64494
- Cross Reference Number:
- FD 330-22 364 | W01-358-7405
- KTP #:
- ${ currentVariant?.sku }
- Part Number:
- ${ currentVariant?.mpn }
- Cross Reference Number:
- ${ currentVariant?.crossReferenceNumber }
Price: $242.25
Sale price: ${currentVariant?.salePriceAsCurrency}
List price: ${currentVariant?.priceAsCurrency}
Price: ${currentVariant?.priceAsCurrency}
- Ships via UPS In stock items ship within 48 hours
- Ships via UPS In stock items ship within 48 hours
${notification.message}
- Ships via UPS In stock items ship within 48 hours
${notification.message}

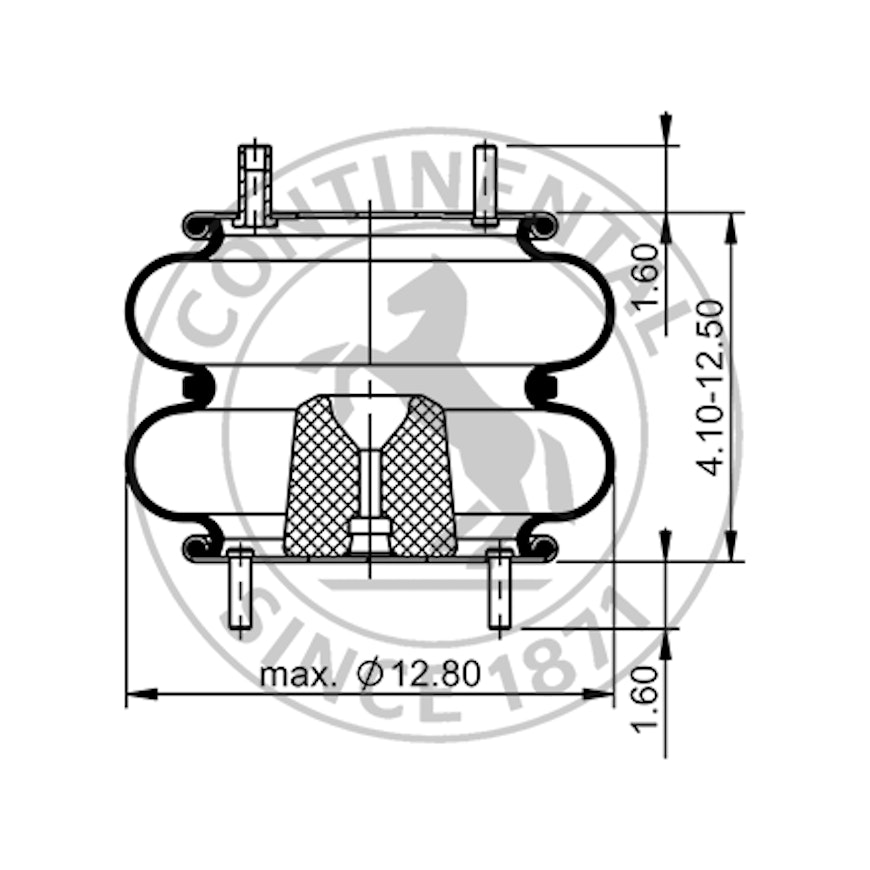

| VMRS | 016008001 |
| Air Spring Convolutions | Double |

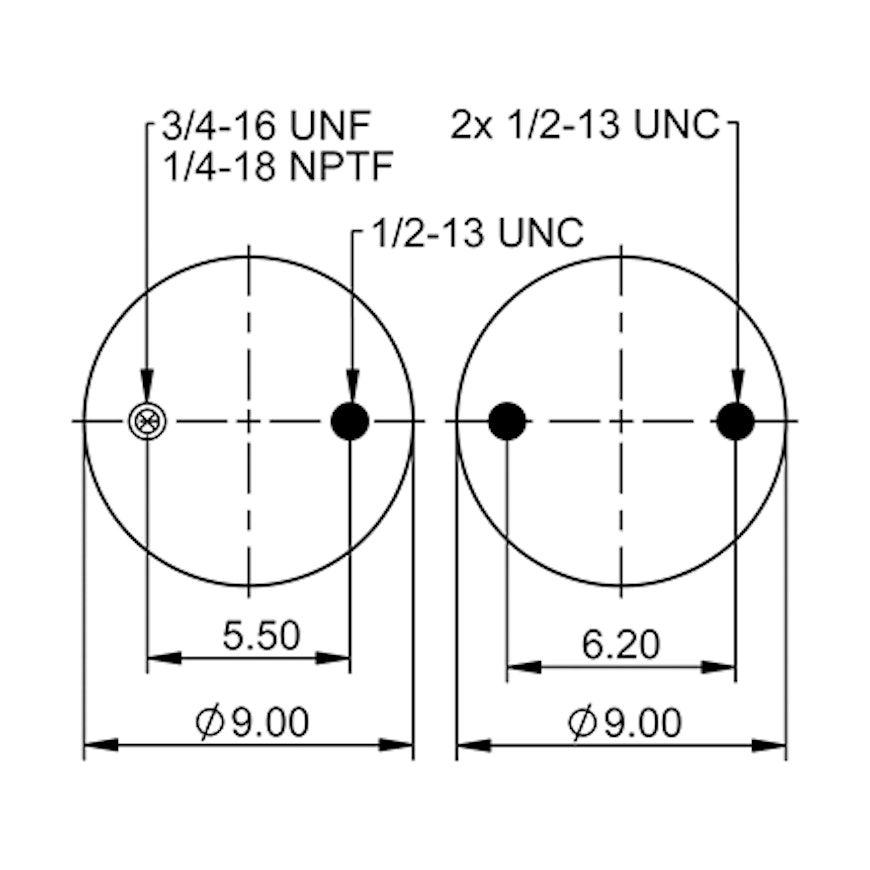

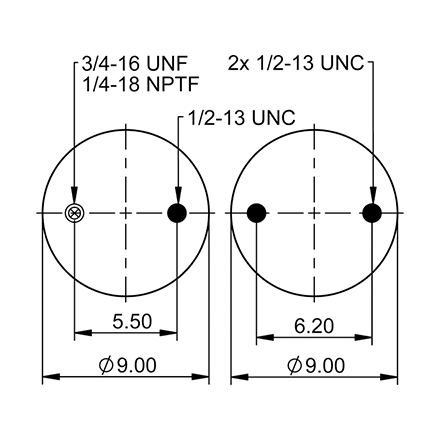

| Top Plate Diameter | 9.00 in |
| Top Mounting | Combination Stud 3/4 in-16 UNF, Stud 1/2 in-13 UNC |
| Bottom Piston/Plate Diameter | 9.00 in |
| Bottom Mounting | Stud 1/2 in-13 UNC |
| Air Connection Configuration | Top - Single |
| Extended Height | 12.50 in |
| Compressed Height | 4.10 in |
| Max Working Diameter | 12.80 in |
The ContiTech air springs keep heavy duty truck bodies at a fixed distance from the road. This heavy duty air spring guarantees security and protection for any type of load. These air springs also offer the ability to lower or raise the truck's body height to match a ramp's elevation or to set up a compatible platform.
- Minimizes cost of downtime
- World-renowned OEM and development partner
- Provides superior driving comfort and safety
- Stands out in the market with maximum service life and accurately defined load-carrying capability
- Offers first-rate cushioning, assembly fit, and burst pressure
- For 64494/2B12-313/4364 applications
| Automann | SP2B22R-7405 |
| Continental | FD 330-22 364 |
| Firestone No. | W01-358-7405, 22 |
| FleetPride | AS7405 |
| Goodyear | 2B12-313, 578923309 |
| Hutchens | 10384-01 |
| Loadguard | SC2073 |
| Mack | 57QK1113, 227QS32 |
| Meritor | 200981 |
| Navistar | 1685177C1 |
| SAF Holland | 57007405 |
| Suspensions, Inc. | 200981 |
| Taurus | 6316, AS214-7405 |
| Triangle | AS-4364 |
| TRP | AS74050 |
