- ContiTech Air Spring 64488
Image ${currentSlide} of ${totalSlides}
Image ${currentSlide} of ${totalSlides}
ContiTech Air Spring 64488 ContiTech Air Spring 64488
ContiTech
- KTP #:
- 15800129
- MPN:
- 64494
- Cross Reference Number:
- FD330-22 364 | W01-358-7405 | 2B12-313 | 4364
- KTP #:
- ${ currentVariant?.sku }
- Part Number:
- ${ currentVariant?.mpn }
- Cross Reference Number:
- ${ currentVariant?.crossReferenceNumber }
Price: $156.75
Sale price: ${currentVariant?.salePriceAsCurrency}
List price: ${currentVariant?.priceAsCurrency}
Price: ${currentVariant?.priceAsCurrency}
${notification.message}
${notification.message}

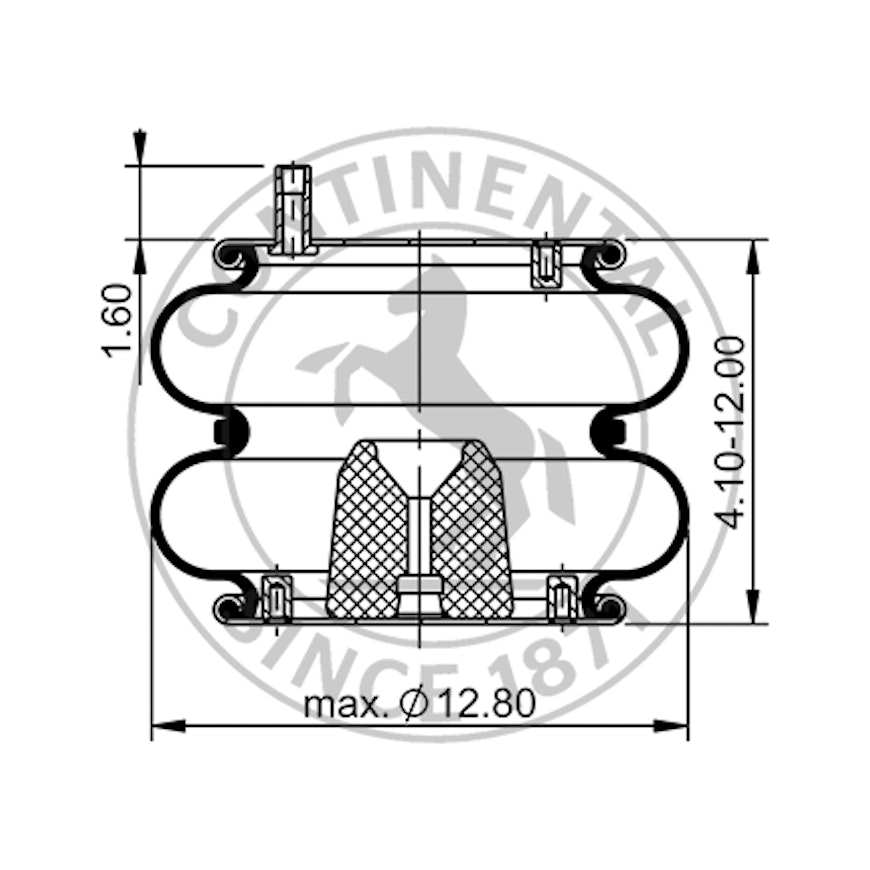

| VMRS | 016008001 |
| Air Spring Convolutions | Double |
| Top Plate Diameter | 9.00 in |

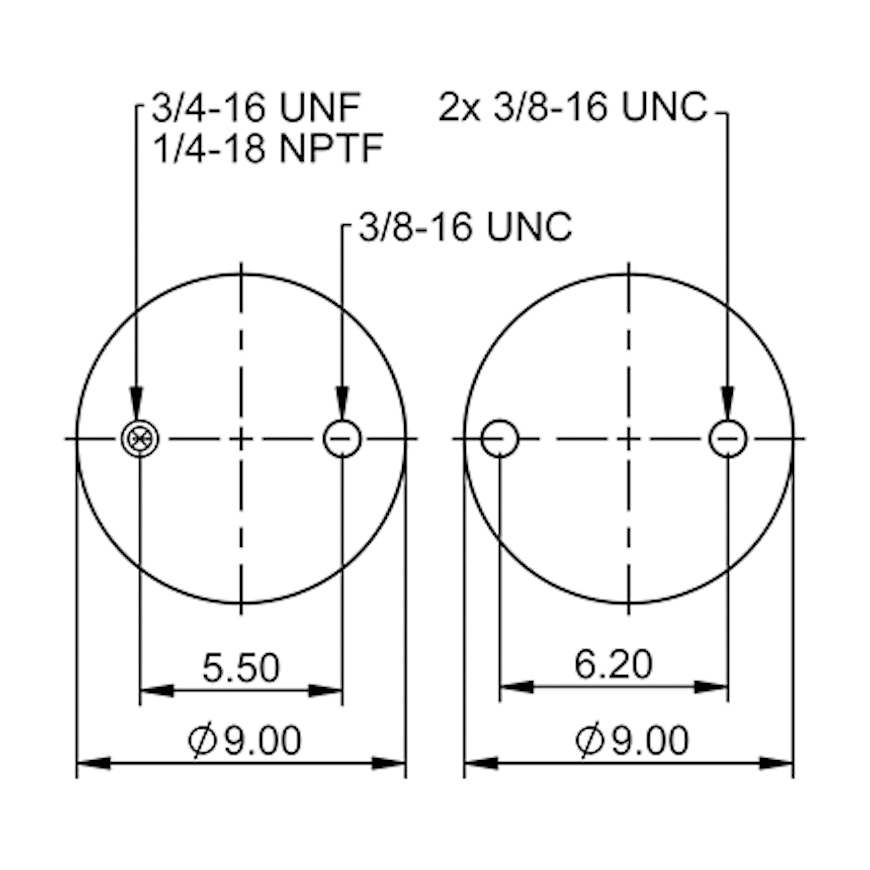

| Top Mounting | Combination Stud 3/4 in-16 UNF , Threaded Hole 3/8 in-16 UNC |
| Bottom Piston/Plate Diameter | 9.00 in |
| Bottom Mounting | Threaded Hole 3/8 in-16 UNC |
| Air Connection Configuration | Top - Single |
| Extended Height | 12.00 in |
| Compressed Height | 4.10 in |
| Max Working Diameter | 12.80 in |
The ContiTech Air Spring 64488/2B12-307/4318 keeps heavy duty truck bodies at a fixed distance from the road. This heavy duty air spring guarantees security and protection for any type of load. These air springs also offer the ability to lower or raise the truck's body height to match a ramp's elevation or to set up a compatible platform.
- Minimizes cost of downtime
- World-renowned OEM and development partner
- Provides superior driving comfort and safety
- Stands out in the market with maximum service life and accurately defined load-carrying capability
- Offers first-rate cushioning, assembly fit, and burst pressure
- For 64488 applications
| Automann | 65065, ABSP2B22R7403, SP2B22R-7403, SP2B22R7403, ABSP2B22R-7403 |
| Brake & Wheel Parts | M3507 |
| Buffalo | 64012 |
| Chalmers Suspension | SC2021 |
| ContiTech | 64488, FS7403, AS7403 |
| Cummins | 200448 |
| Dayton Parts | 3547403 354-7403, 2B12307 |
| Firestone | W013587403 |
| Granning Suspensiosn | 2725 |
| Hendrickson | S-1159, B-12514-001, S-2883 |
| Holland Equipment, Ltd. | 57007403 |
| Mack Trucks, Inc. | 74131, RC92C22 7403 |
| Navistar | 554787C1 |
| Parker-Hannifin | 4318 |
| Ridewell Corp | 1003587403C, S-4302C |
| Supercede From | W01-358-7403, 2B12-307 |
| Taurus International, Inc. | AS2147403, AS214-7403 |
| Truck Replacement Parts Inc. | 68991, AS74030 |
| Unknown | 1040201, 1090201, V SP 2 B 22 R7403, VSP2B22R-7403, UNKNOWN PART PLACEHOLDER, MAF7403B, V SP 2 B 22 R-7403 |
| Volvo Truck | 352035001 |
| Watson & Chalin | AS0007, AS-0007 |
| Other | 7403, VSP2B22R7403, TRAS4318, TR4318, S7403, S4302C, S2883, S1159, RC92C227403, EIEFS7403, EFS7403, B12514001 |
