Link Extended Ramp LT30 / 24-in / 119-in
Link Mfg
- KTP #:
- 78524A01
- MPN:
- LT30-24-119
- KTP #:
- ${ currentVariant?.sku }
- Part Number:
- ${ currentVariant?.mpn }
- Cross Reference Number:
- ${ currentVariant?.crossReferenceNumber }
Price: $1,845.00
Sale price: ${currentVariant?.salePriceAsCurrency}
List price: ${currentVariant?.priceAsCurrency}
Price: ${currentVariant?.priceAsCurrency}
- Ships LTL Freight $250.00 - Lower 48 states only
- Made to order Ships within 4 weeks
- Ships LTL Freight $250.00 - Lower 48 states only
- Made to order Ships within 4 weeks
${notification.message}
- Ships LTL Freight $250.00 - Lower 48 states only
- Made to order Ships within 4 weeks
${notification.message}
| Weight (Base Unit) | 110-140 LBS |
| Mounting | Flat Floor Mount |
| Load Width | 24, 30, or 36 IN |
| Length | 119 IN |
| Capacity | 1000 LBS |

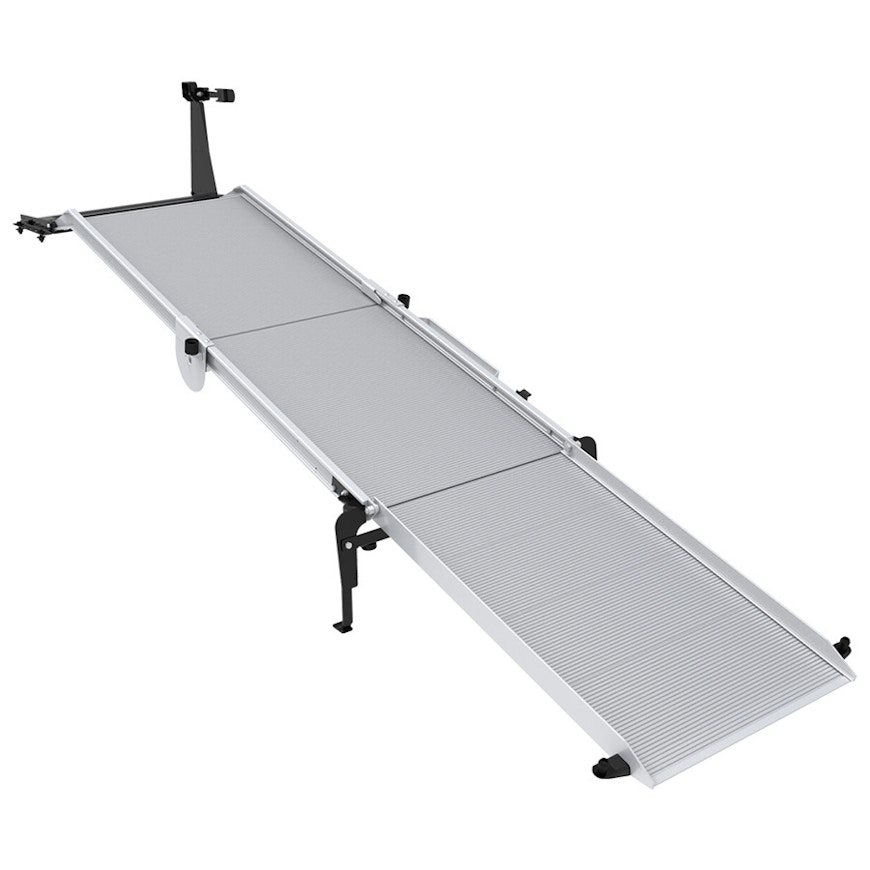

The LT30 Extended ramp is designed to provide customers with the option for a lower degree angle of entry into a commercial van’s or box truck’s cargo area. The compact extended design of the LT30 series allows it to store vertically inside the vehicle’s rear door, isolating it from weather and road debris. Each LT30 mounted ramp is made from high-strength aluminum and is engineered for simple installation on any flat surface. The adjustable leg gives the option for shallow load angles. It increases loading and unloading efficiency while reducing dangerous lifting and possible equipment damage during transfer from the vehicle to the ground. The LT30 Series’ capacity is 1,000 pounds and weighs between 110 to 140 pounds, depending on the model.

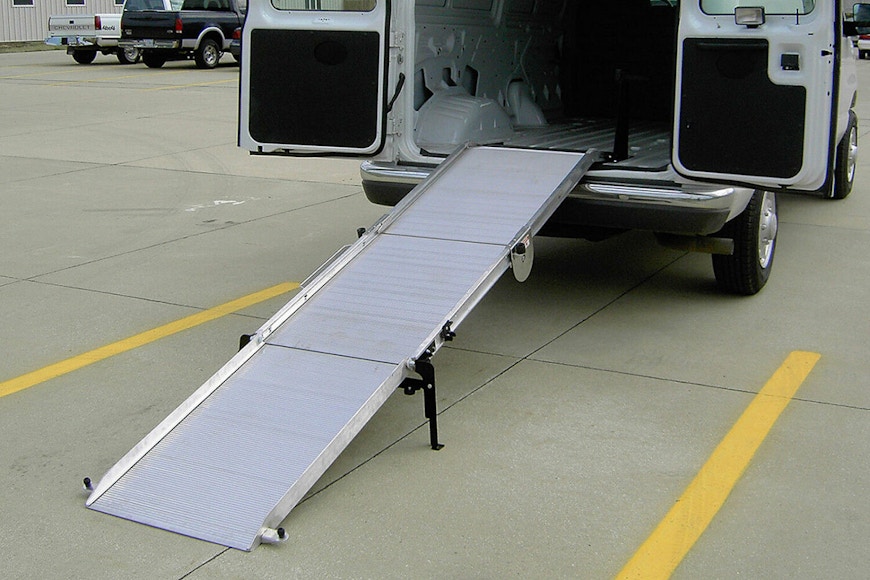

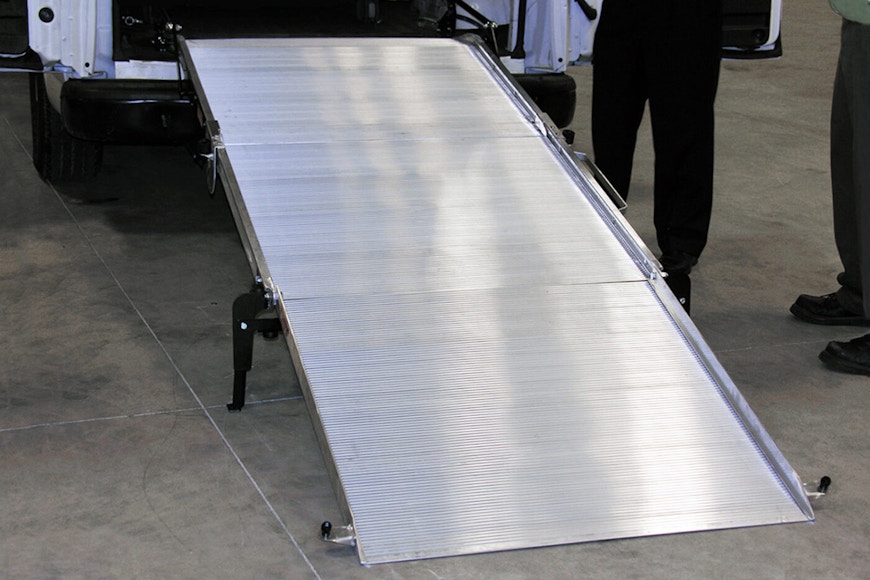

- Ease of Loading: The LT30 extended ramp provides a shallow load angle for ease of loading and safe delivery.

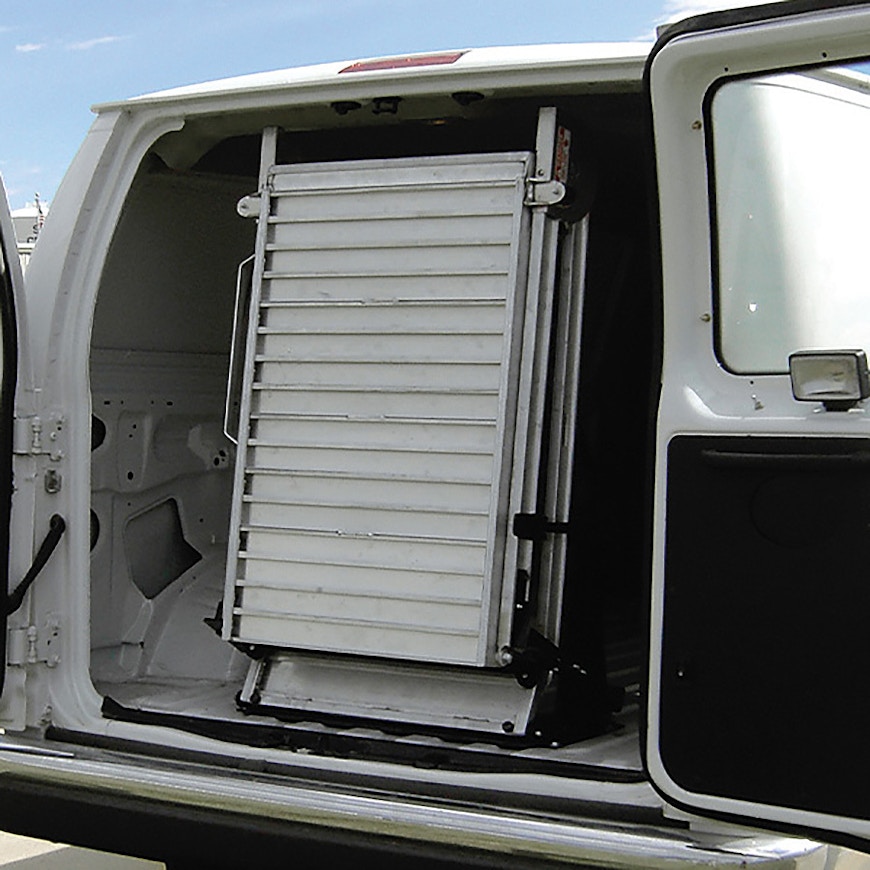

- Compact Stored Height: Use the LT30 if you need a long ramp but have a small rear opening. The ramp design is 119 inches in length and stores vertically inside the vehicle.
- High Strength Aluminum: The LT30 is designed for reliability and durability using extruded high strength aluminum and state of the art manufacturing processes.
- Low-Profile Baseplate: The LT30 baseplate installs into most vehicles with a flat surface. The ramp stores vertically and only requires 4 bolts in the floor.

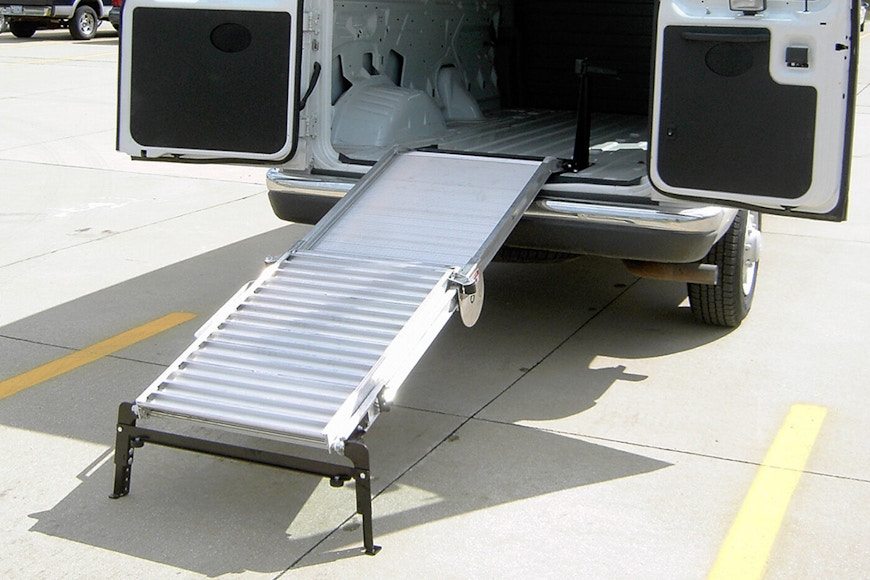

- Adjustable Leg: The adjustable leg gives the option for shallow load angles.
| Roof Height | Capacity (lbs.) | Stored H (in.) | 24 in. W | 30 in. W | 36 in. W | |
|---|---|---|---|---|---|---|
| Chevrolet Express (119 in LT30) | Standard | 1,000 | 46.5 | LT30-24-119 | LT30-30-119 | LT30-36-119 |
| RAM ProMaster (119 in. LT30) | Standard & High | 1,000 | 46.5 | LT30-24-119 | LT30-30-119 | LT30-36-119 |
| Ford Ecoline (119 in LT30) | Standard | 1,000 | 46.5 | LT30-24-119 | LT30-30-119 | LT30-36-119 |
| Ford Transit (119 in. LT30) | Low, Medium, & High | 1,000 | 46.5 | LT30-24-119 | LT30-30-119 | LT30-36-119 |
| Mercedes-Benz Sprinter (119 in. LT30) | Standard & High | 1,000 | 46.5 | LT30-24-119 | LT30-30-119 | LT30-36-119 |
| Nissan NV (119 in. LT30) | Standard & High | 1,000 | 46.5 | LT30-24-119 | LT30-30-119 | LT30-36-119 |
| Note: LT30 extended ramps are not available with a spring assist. | ||||||
