Link Loading Ramp LB20 / 30-in [No Spring Assist] / 72-in

Link Mfg

KTP #:
7842A208
KTP #:
${ currentVariant?.sku }
Part Number:
${ currentVariant?.mpn }
Cross Reference Number:
${ currentVariant?.crossReferenceNumber }

Price: $1,285.00

Sale price: ${currentVariant?.salePriceAsCurrency}

List price: ${currentVariant?.priceAsCurrency}

Price: ${currentVariant?.priceAsCurrency}

  • Ships LTL Freight $250.00 - Lower 48 states only
  • Made to order Ships within 4 weeks

${notification.message}

Weight (Base Unit) 96-240 LBS
Mounting Flat Floor Mount
Load Width 30, 36, 47, or 51 IN
Length 72, 81, 99, 108, or 126 IN
Capacity 1000-2000 LBS

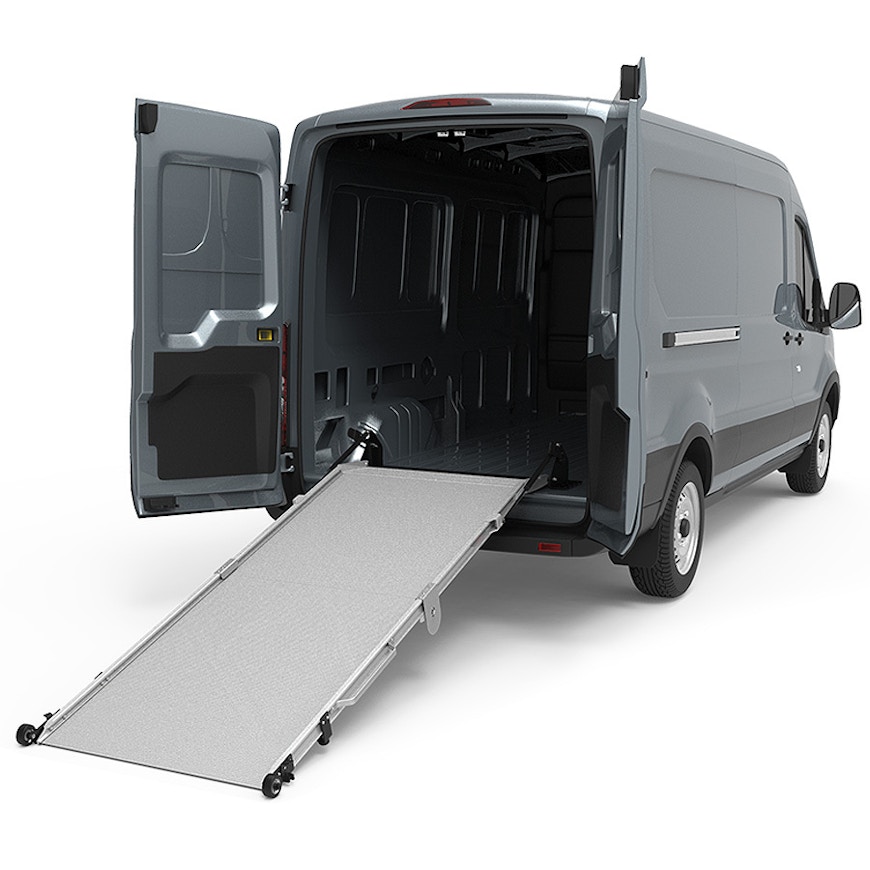

The diverse LB20 ramps are fast, easy, and convenient to deploy, use, and stow. The ramp can be unfolded and folded back into a vertical, low-profile storage position in less than a couple of seconds. By stowing vertically inside the vehicle’s cargo hold, the ramp is not exposed to the weather or road debris and takes up less than 11 inches of horizontal space.The LB20 Series ramp is easily installed into any vehicle with a flat surface. It increases efficiency while reducing dangerous lifting and equipment damage. The ramp comes in both standard and spring-assist versions. Depending on the model, the LB20 Series weighs between 96 and 240 pounds and has a weight capacity of 1,000 and 2,000 pounds.

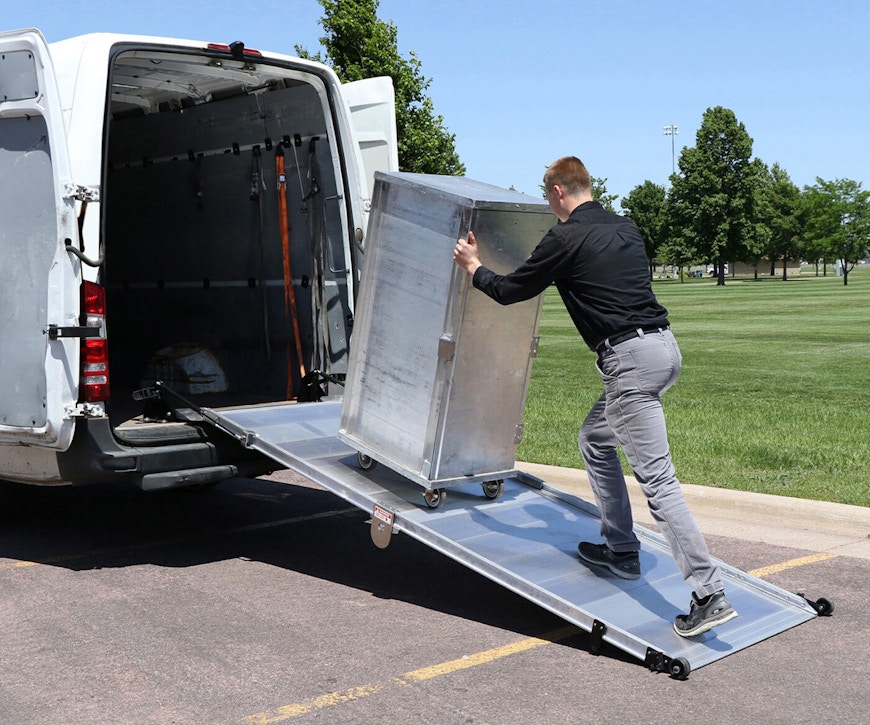

  • Quick Loading & Unloading: The LB20 is easy to deploy with quick-release latches and sturdy hinge points.
  • Low-Profile Threshold: The top of the ramp features a low-profile transition threshold to provide a shallow approach for various types of equipment.

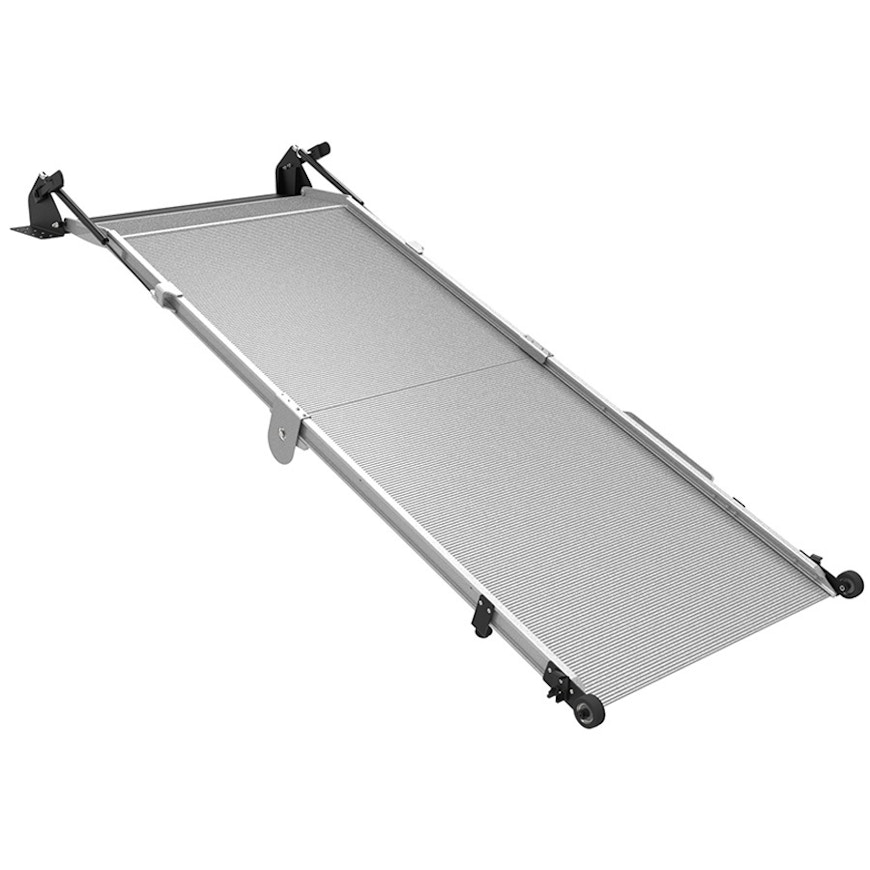

  • High Strength Aluminum: The LB20 ramp is made of extruded high-strength aluminum and is designed for reliability and durability.

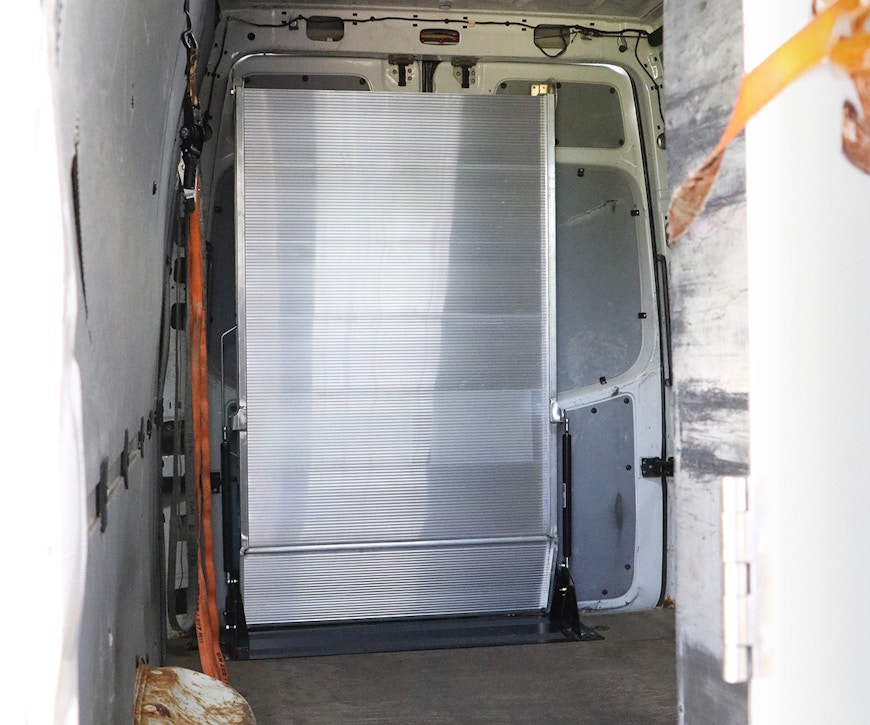

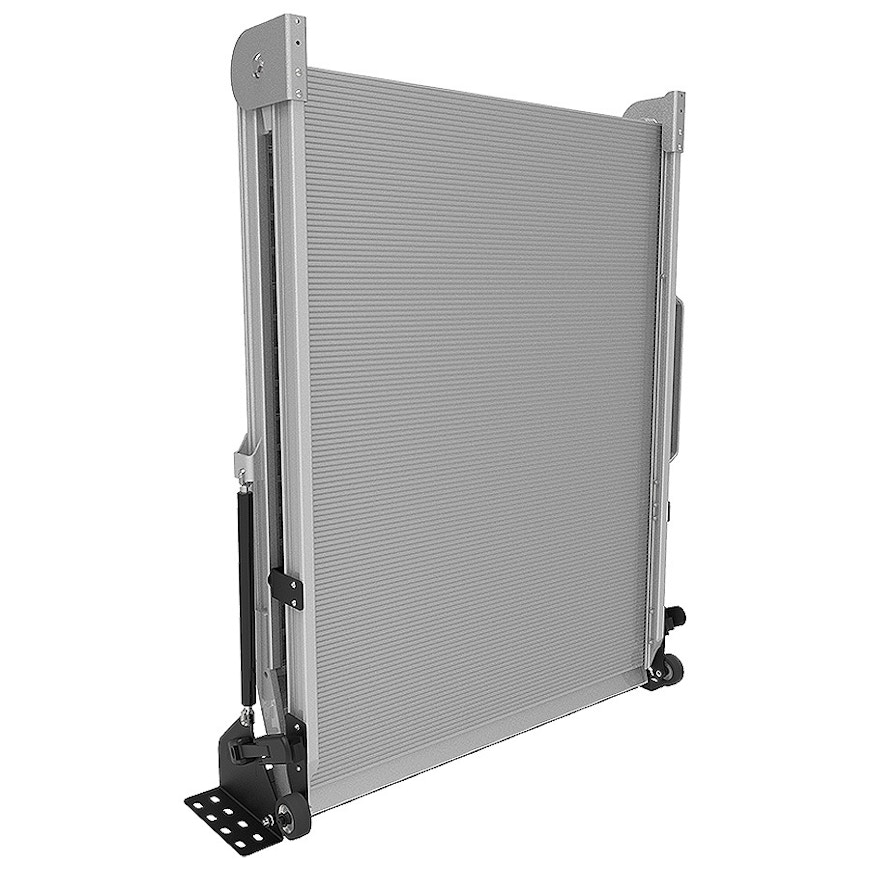

  • Dead Space Rear Door Storage: The LB20 ramp folds in half and stores vertically just inside the rear door of the vehicle.

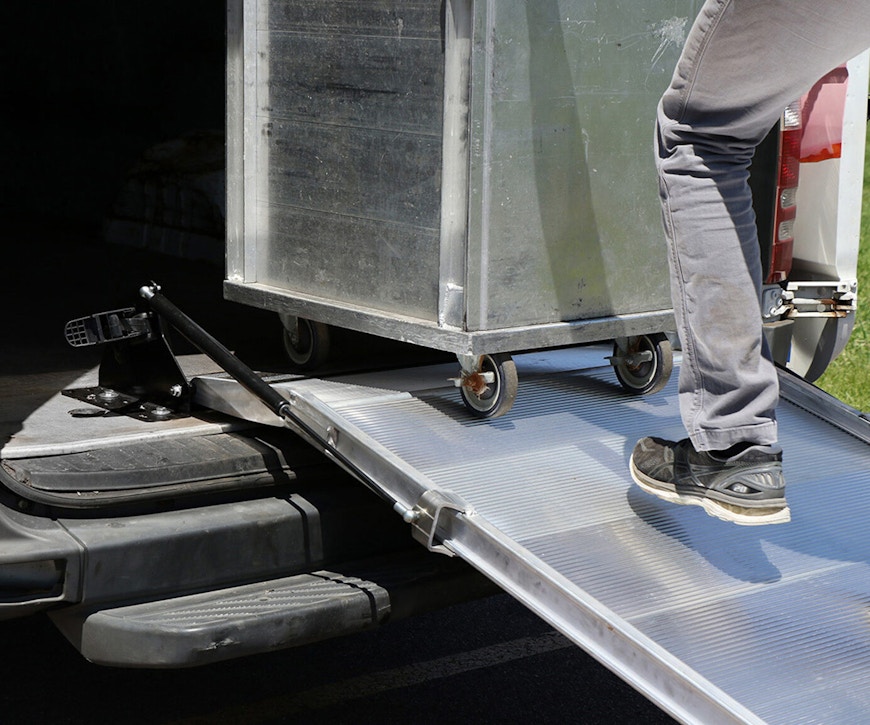

  • Reduce Lifting with Pull Spring Assist: The pull spring assist aids in transitioning the ramp smoothly while deploying or collapsing and reduces the required lifting force.
  • Standard Wheel Kit: A wheel kit at the end of the ramp helps transition the ramp smoothly when it is deployed on uneven surfaces.
  • Easy Baseplate Installation: The ramp mounts with four bolts on a flat surface and requires 11 inches of mounting space.
  • Ships Fully Assembled: All LB20 ramps ship fully assembled, include a wheel kit, and mount just inside a vehicle’s rear or side door.
